| Westerschelde 02 May 2016 |
|
Name |

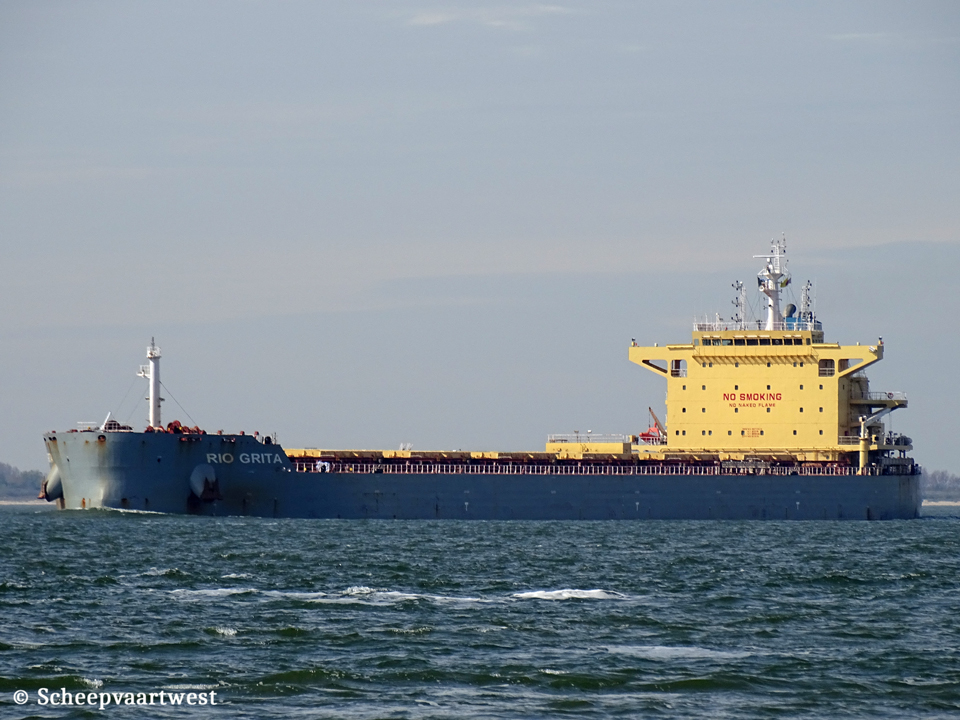

RIO GRITA |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading Panamax |
|
IMO-number |
9673513 |
|
Call sign |
D5EO4 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
41.218 t |
|
DWT |
75.378 t |
|
NT |
25.335 t |
|
Length |
224,87 m overall 220,78 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 14,02 m |
|
Moulded L x B x D |
220,78 x 32,26 x 19,50 m |
|
Registered L x B x D |
220,78 x 32,26 x 19,50 m |
|
Keel to mast end |
49,97 m |
|
Freeboard |
Summer: 5.528 mm |
|
Depth |
19,50 m moulded |
|
Speed |
Max: 14,5 knots |
|
Built |
2014 |
|
Keel laid |
18/06/2013 |
|
Launch date |
30/10/2013 |
|
Date of completion |
27/02/2014 |
|
Builder |
Taizhou Kouan Shipbuilding Co., Ltd. Taizhou China |
|
Yard number |
TK0703 |
|
Hull material |
Shipbuilding steel (standard) - Partly made of higher tensile steel |
|
Hull type |
Single hull double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x Doosan/MAN-B&W 5S60MC-C8.1 - 2 stroke 5 cylinder 600 x 2.400 mm combustion engine 9.660 kW / 13.133 hp at 103,0 rpm Manufacturer: Doosan Engine Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 103 rpm |
|
Boilers |
1x Steam boiler, oil fired / exhaust gas heated - 9,0 bar Heating surface: 20,1 m² Heating surface: 300,8 m² Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. |
|
Shaft generator |
1x 688 kVA |
|
Generators |
2x Main diesel generatorsets each 750 kVA |
|
Emergency generator |
1x Diesel generatorset 124 kVA |
|
Batteries |
4x Batteries for automation each 200 Ah 4x Batteries for UPS navigation each 200 Ah 2x Batteries for start emergency engine each 200 Ah 2x Batteries for UPS radio each 200 Ah |
|
Compressed air receivers |
2x Receivers each 5.000 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 2.000 litres - 10,0 bar 1x Receiver 500 litres - 7,0 bar |
|
Number of cargo holds |
7 |
|
Cargo hold capacity |
Grain: 90572 m³ Bales: 90.066 m³ |
|
Tank capacities |
Fuel oil: 2.773,79 m³ Fresh Water: 421,32 m³ |
|
Anchor equipment |
3x Anchors weight each 10.500 kg Chain Length: 660,00 m |
|
Crew size |
27 |
|
Commercial manager |
Minship Shipmanagement GmbH Am Ruttmann Kai 1 92253 Schnaittenbach Germany |
|
ISM manager |
Columbia Shipmanagement (Deutschland) GmbH Grosse Elbstrasse 275 22767 Hamburg Germany |
|
Previous managers |
Mineralien Schiffahrt Spedition & Transport Schnaittenbach Germany |
|
Registered owner |
Rio Grita GmbH & Co., KG Care of MINSHIP Shipmanagement GmbH & Co., KG Am Ruttmann Kai 1 92253 Schnaittenbach Germany |
|
Renamed |
05/2022 W Jade Liberia, Monrovia - Call sign: D5EO4 Owner: Blane Corporation, Athens - Greece Manager: W Marine Inc., Athens - Greece |
|
Latest data adjustment |
27 December 2023 |
