| Vlissingen 08 January 2016 |
 |
 |
|
| Vlissingen 08/01/16 | Vlissingen 08/01/16 | |
|
Name |

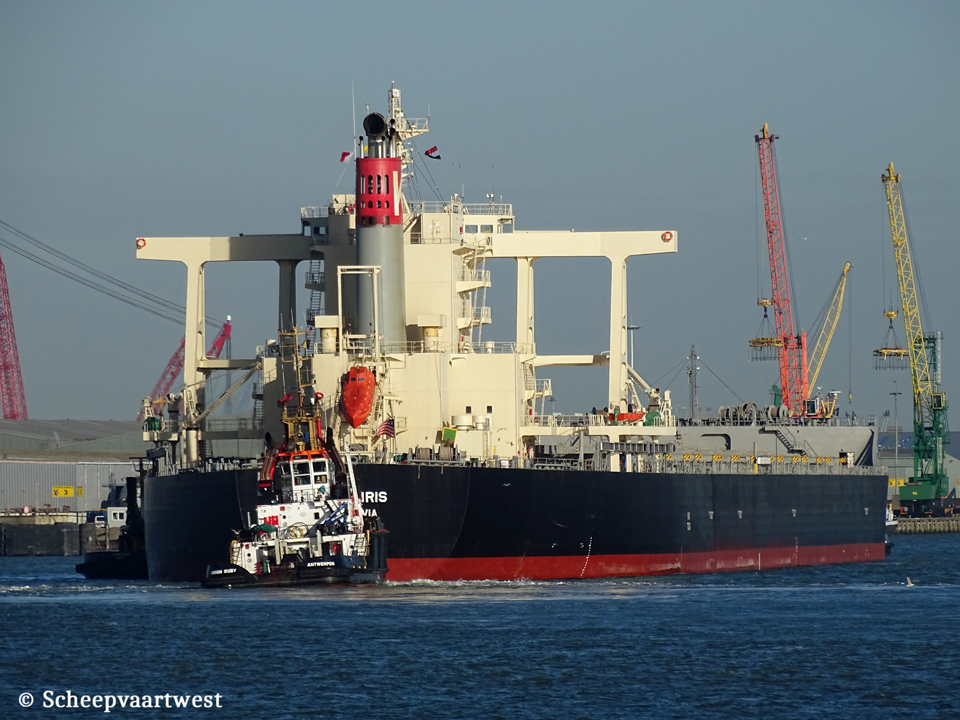

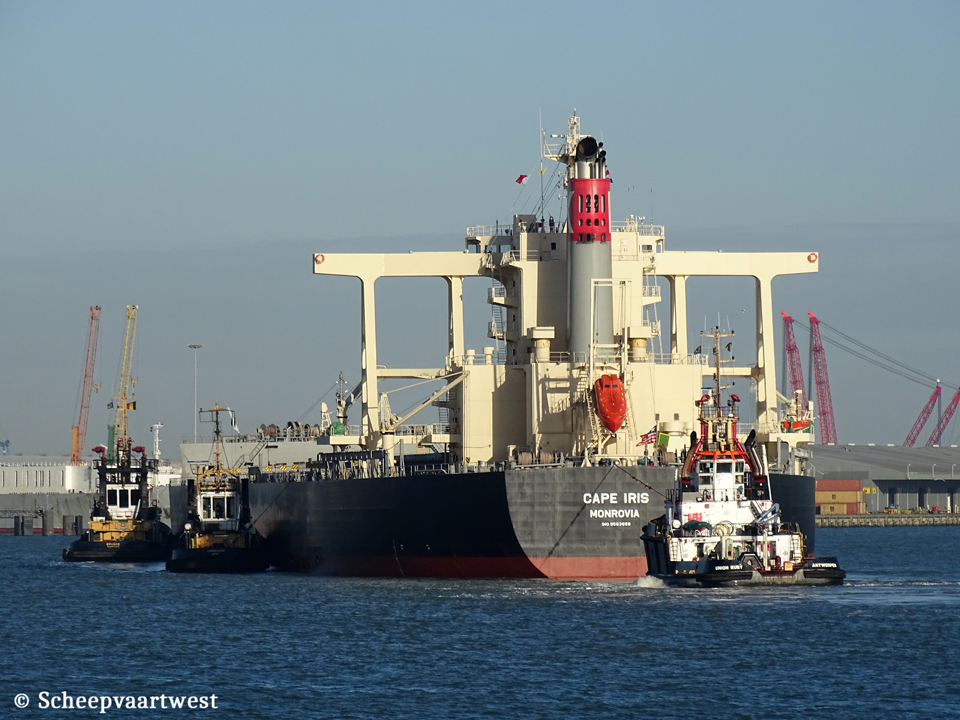

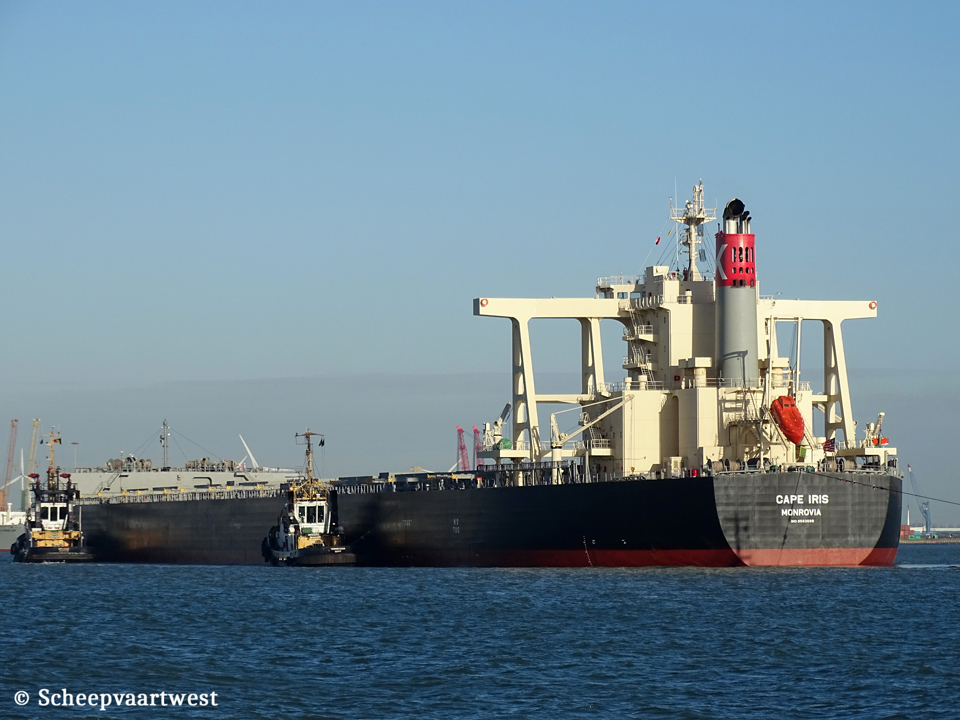

CAPE IRIS |
|
Type |
Bulk carrier - Capesize Strengthened for heavy cargo loading |
|
IMO-number |
9563689 |
|
Call sign |
D5DE6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GRT |
92.758 t |
|
DWT |
181.403 t |
|
NRT |
60.504 t |
|
Length |
291,98 m overall |
|
Breadth |
45,00 m |
|
Draught |
Summer: 18,24 m |
|
Moulded Lx B x D |
283,80 x 45,00 x 24,70 m |
|
Registered L x B x D |
284,28 x 45,00 x 24,70 m |
|
Keel to mast end |
59,40 m |
|
Freeboard |
Summer: 6.516 mm |
|
Depth |
24,70 m moulded |
|
Speed |
Max: 17,2 knots |
|
Built |
2012 |
|
Keel laid |
11/11/2010 |
|
Launch date |
25/06/2012 |
|
Date of completion |
06/12/2012 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Saijo Shipyard Japan |
|
Yard number |
8138 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsui/MAN-B&W 6S70MC-C - 2 stroke single acting 6 cylinder 700 x 2.800 mm combustion engine Mcr 18.660 kW / 25.370 hp at 91,0 rpm Builder: Mitsui E&S Machinery Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 710 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical composite boiler 0,69 MPa Evaporation: 3,20 ton/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generatorsets total 2.450 kVA |
|
Number of holds |
9 |
|
Cargo hold capacity |
Grain: 201.243 m³ |
|
Number of hatches |
9 |
|
Tank capacities |
Fuel oil: 5.826 m³ Fresh water: 608 m³ |
|
Crew size |
25 |
|
ISM & commercial manager |
Toyo Sangyo Co. Ltd. 2-3, Kyoei-cho 1-chome, Imabari-shi, Ehime-ken, 794-0024 Japan |
|
Registered owner |
Erica Navigation S.A. & Seno Kisen Co. Ltd. - Care of Toyo Sangyo Co. Ltd., Imabari, Ehime- Japan |
|
Latest data adjustment |
12 January 2024 |
