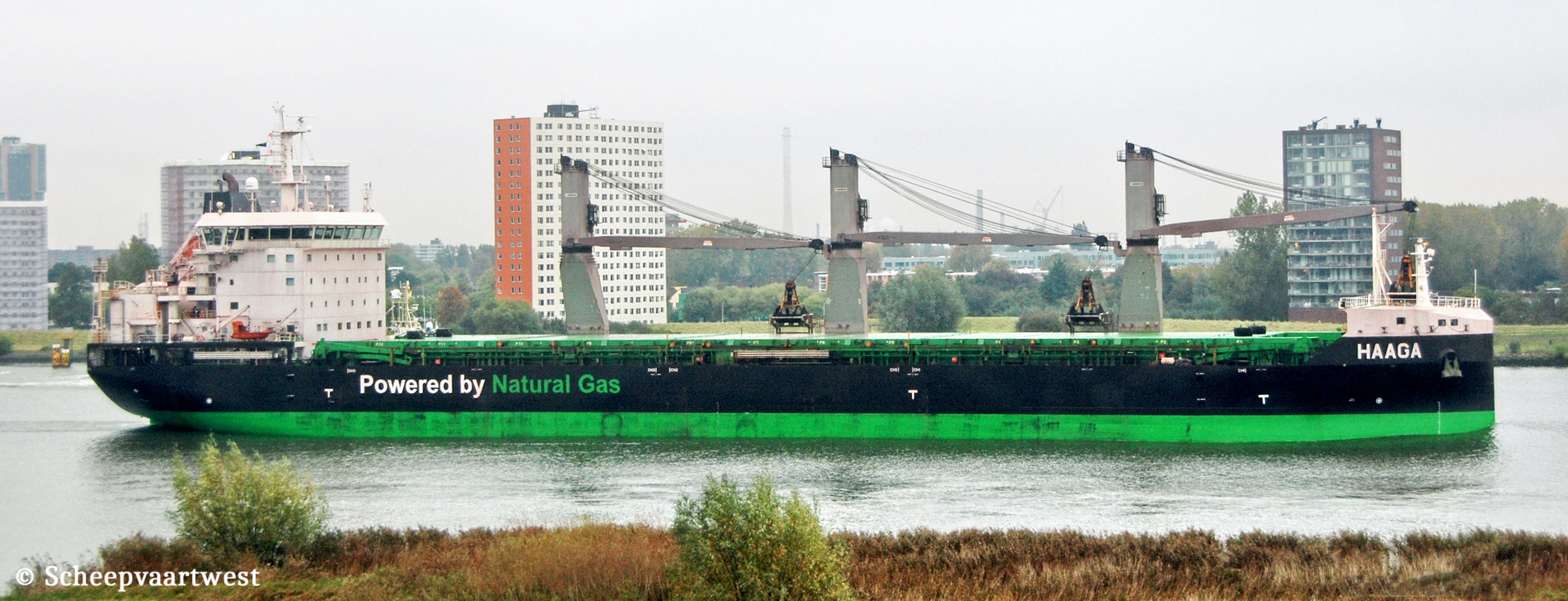

| Spijkenisse (Oude Maas) 26 October 2023 |
|
Name |
HAAGA |
|
Type |
General dry cargo (single deck) |
|
IMO-number |
9797632 |
|
Call sign |
OJSS |
|
Flag |
Finland |
|
Port of registry |
Helsinki |
|
Previous flags |
2018 - 07/2019 Portugal - Call sign: CQIH2 |
|
GT |
19.955 t |
|
DWT |
25.532 t |
|
NT |
7.653 t |
|
Length |
159,99 m overall 157,03 m between perpendiculars |
|
Breadth |
26,08 m extreme |
|
Draught |
Summer: 10,00 m |
|
Air draft |
46,35 m from keel |
|
Freeboard |
5.026 mm |
|
Depth |
15,01 m moulded |
|
Built |
2018 |
|
Keel laid |
16/12/2015 |
|
Launch date |
20/10/2017 |
|
Date of completion |
20/08/2018 |
|
Builder |
China Merchants Jinling Shipyard (Nanjing) Co., Ltd. China |
|
Yard number |
QS25000-2 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
Multi-fuel STX/MAN-B&W 5G45ME-C9.5-GI Tier II - 5 cylinder combustion engine 6.000 kW + PTI boost 1.250 kW Total: 7.250 kW Fuelled by liquefied natural gas |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated Aalborg XW-AE-5L 1x Auxiliary boiler, exhaust gas heated Aalborg XW-ME5G45 1x Auxiliary boiler, exhaust gas heated XW-AE8L 1x Auxiliary boiler, oil/gas fired CHB-1600 Manufacturer: Alfa Laval Aalborg Oy |
|
Generators |
2x MAN 8L23/30DF main diesel generatorsets each 1.000 kW 1x MAN 5L23/30DF main diesel generatorset 625 kW |
|
Emergency generator |
1x Cummins 6CTA-8.3-D(M) diesel generatorset |
|
Bow thruster |
1x 1.00kW, forward 1x 700 kW, aft |
|
Number of holds |
3x Double skin cargo holds Hold 1: 40,00 x 21,20 x 15,40 m (narrowing fore) Hold 2: 26,40 x 21,20 x 15,40 m Hold 3: 37,60 x 21,20 x 15,40 m (narrowing aft) |
|
Cargo hold capacity |
Hold 1: 12.557,2 m³ / 443.453,3 ft³ Hold 2: 8.601,8 m³ / 303.769,7 ft³ Hold 3: 12.145,6 m³ / 428.917,8 ft³ Total: 33.304,7 m³ / 1.116.140,8 ft³ |
|
Hatch cover type |
Electro hydraulic hatches folding type |
|
Tank capacities |
Ballast: 13.488 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 64 mm |
|
Cargo gear |
3x Electro-hydraulic deck cranes - SWL 37,5 t Grabs: 3x 12,5 m³ Outreach: 30,00 m - Cranes are not combinable |
|
Manager |
ESL Shipping Oy Lintulahdenkuja 10 FI-00500 Helsinki Finland |
|
Registered owner |
ESL Shipping Oy Lintulahdenkuja 10 FI-00500 Helsinki Finland |
|
Group |
ASPO Group |
|
Latest data adjustment |
03 February 2024 |
