Zeebrugge 17 February 2024 |
Zeebrugge 17/02/24 | |
Name |
MANUELA S |
Previous names |
1989 - 2011 Trenden 2011 - 2021 Trenland |
Type |

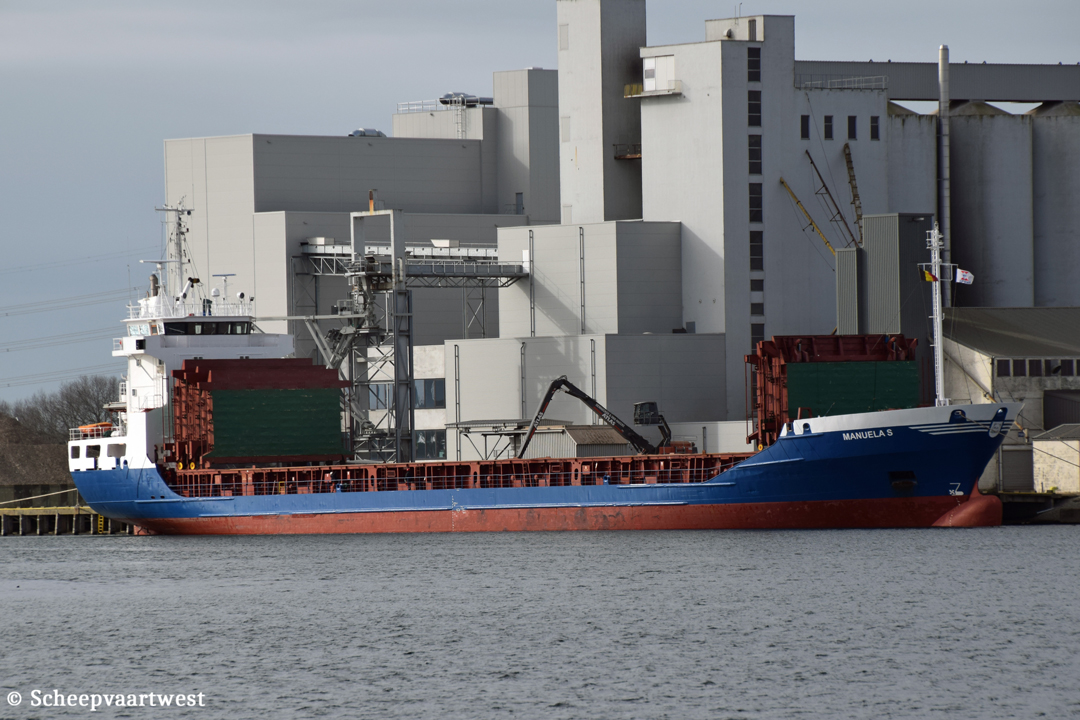

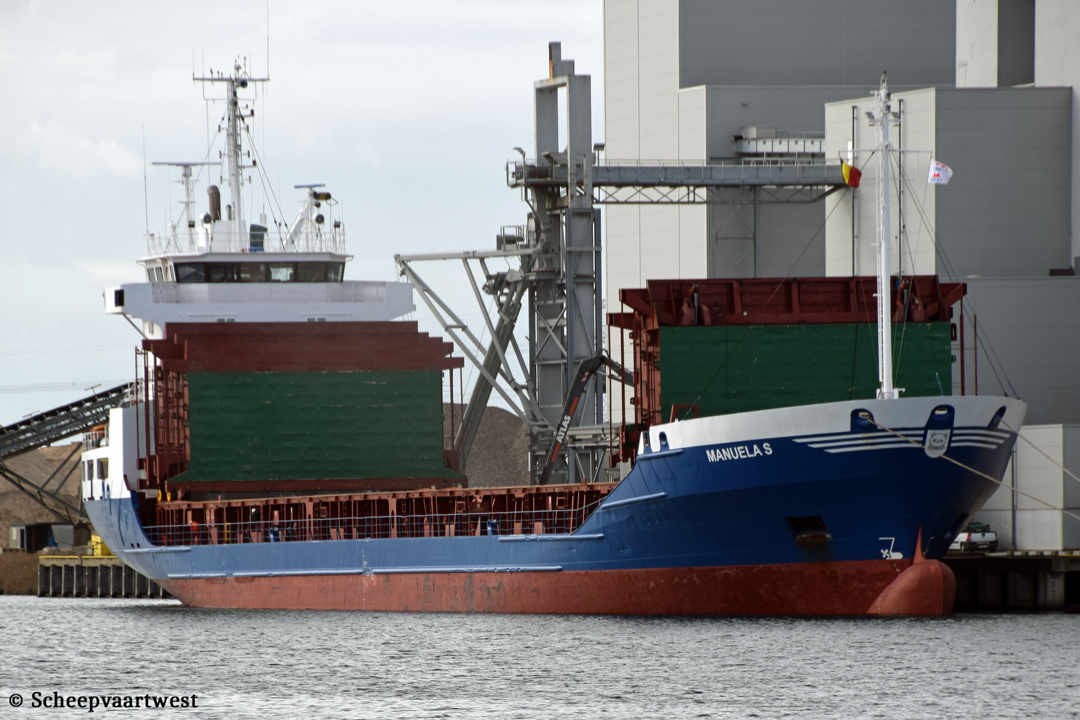

Multi purpose cargo vessel moored at quay 303 |
IMO-number |
8820107 |
Previous classification |
DNV |
Call sign |
5BTW5 |
Flag |
Cyprus |
Port of registry |
Limassol |
Previous flags |
1989 - 2011 Finland, Helsinki - Call sign: OIZF 2011 - 2011 Malta, Valletta - Call sign: 9HA2729 |
GT |
3.826 t |
DWT |
4.402 t |
DWCC |
Summer: 4.735 t Winter: 4.480 t |
NT |
2.013 t |
Number of 20ft containers |
In hold: 140 On deck: 186 Total: 326 |
Container capacity 14t |
224 |
Reefer capacity |
10 |
Length |
104,80 m overall 97,40 m between perpendiculars |
Breadth |
16,25 m extreme 16,00 m moulded |
Draught |
Summer: 6,24 m Winter: 6,05 m |
Keel to mast end |
32,00 m |
Forecastle |
Summer: 5,78 m |
Depth |
7,75 m |
Speed |
Max: 15,4 knots Service: 11,0 knots |
Built |
1989 |
Keel laid |
20/03/1989 |
Launch date |
24/04/1989 |
Date of completion |
02/06/1989 |
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. Neuenfelder Fährdeich 88 21129 Hamburg Germany |
Yard number |
1040 |
Hull material |
Steel (standard) |
Hull type |
Single hull, partly double bottom (e.g. interrupted in way of machinery space) |
Watertight bulkheads |
5 |
Continuous decks |
2 |
Main engine |
1x Wärtsilä Vasa 8R32 D - 4 stroke 8 cylinder 320 x 350 mm combustion engine 2.960 kW / 4.024 hp at 740 rpm |
Propellers |
1x Controllable pitch propeller |
Shaft generator |
1x Piller 1.125 kVA / 900 kW |
Generators |
2x Volvo Penta diesel engines each 238 kW connected with Piller generators each 275 kVA |
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar 1x Receiver 500 litres - 11,0 bar |
Bow thruster |
1x Fixed pitch propeller Pleuger - 300 kW, forward |
Number of holds |
1x Steel floor, box shaped 65,70 x 12,82 x 8,25 m |
Cargo hold capacity |
Grain: 6.461 m³ Bale: 6.368 m³ |
Hatch opening |
65,70 x 12,82 m |
Anchor equipment |
3x Anchors weight each 2.850 kg Chain Length: 495,00 m |
Crew size |
12 |
ISM & commercial manager |
Kevin S GmbH & Co KG Fachenfelder Weg 122 21220 Seevetal Germany |
Registered owner |
Kevin S GmbH & Co KG Fachenfelder Weg 122 21220 Seevetal Germany |
Latest data adjustment |
19 February 2024 |
