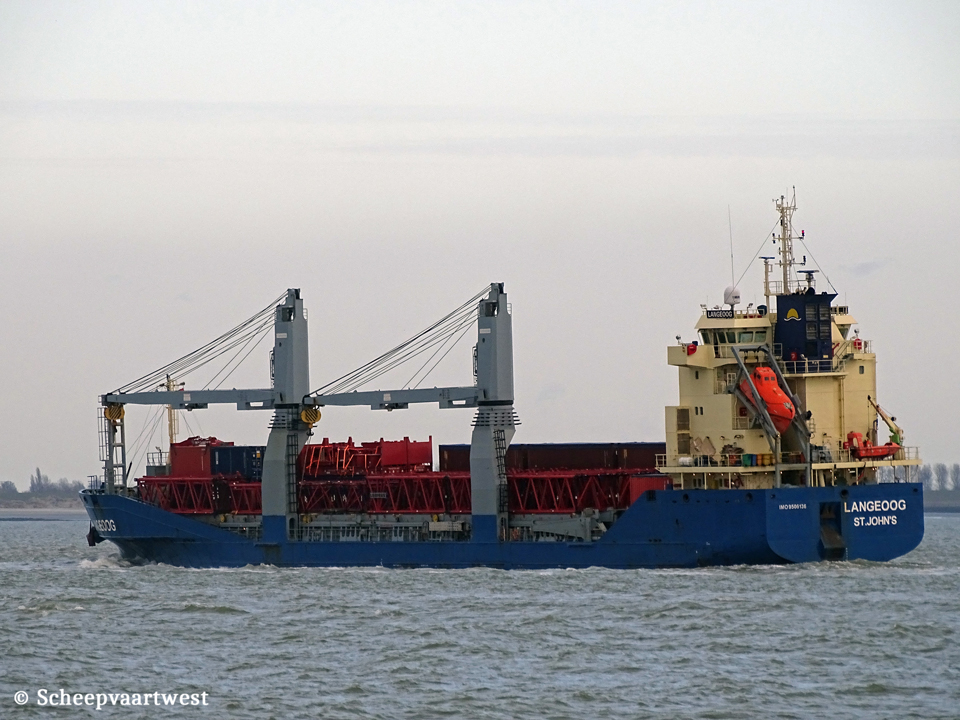

| Westerschelde 10 February 2018 |
|
Name |
LANGEOOG |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Fitted with tweendecks and grain bulkheads |
|
IMO-number |
9506136 |
|
Call sign |
V2GK5 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
4.591 t |
|
DWT |
5.670 t without tweendeck |
|
NT |
1.966 t |
|
Number of 20ft containers |
In hold: 138 On deck: 247 Total: 385 |
|
Reefer plugs |
10x Reefer plugs on deck |
|
Length |
108,14 m overall 102,53 m between perpendiculars |
|
Breadth |
16,61 m moulded 16,72 m extreme |
|
Draught |
Summer: 6,50 m |
|
Depth |
8,80 m |
|
Speed |
14,5 knots |
|
Built |
2013 |
|
Keel laid |
30/12/2008 |
|
Launch date |
09/12/2011 |
|
Date of completion |
28/06/2013 |
|
Builder |
Qidong Daoda Heavy Industry Co., Ltd. Qidong China |
|
Yard number |
DD015 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W 7L32/40 - 4 stroke 7 cylinder 320 x 400 mm combustion engine 3.500 kW / 4.759 hp at 750 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
Auxiliary boiler, composite Mission OC |
|
Shaft generator |
1x 500 kW |
|
Generators |
1x MAN D2840LE301 main diesel generatorsets each 360 kW |
|
Emergency generator |
1x Cummins 6CTA8.3-D(M) diesel generatorset 100 kW |
|
Number of holds |
1 64,40 x 13,20 x 9,00 m 52,50 x 13,20 m box shaped |
|
Tween decks |
Moveable tween decks, positioning possible at 3.000 mm and 5.400 mm above tank top, also usable as grain bulkheads at various positions |
|
Cargo hold capacity |
7.310 m³ / 258.150 ft³ |
|
Hold ventilation |
Ventilated with fans 20 times per hour |
|
Hatches |
Hydraulic hatch covers; 2 multi folding pairs (4 covers) open to forward., 2 multifold pairs (4 covers) open to aft |
|
Max permitted loads |
Tanktop: 20,0 t/m² Tweendeck hatch: 2,50 t/m² Weatherdeck hatch: 2,00 t/m² |
|
Tank capacities |
Fuel IFO: 400,0 m³ Fuel MDO: 95,0 m³ Lub oil: 27,0 m³ Fresh water: 80,8 m³ Ballast: 2.612,3 m³ |
|
Anchor equipment |
Length: 495,00 m Diameter: 46 mm |
|
Cargo gear |
2x Hydraulic single cranes on portside - SWL 60,0 t at 19,00 m and SWL 45 t at 26,00 m min outreach 2,50 m |
|
Manager |
Sunship Schiffahrtskontor KG Promenade Am Alten Binnenhafen 10 26721 Emden Germany |
|
Registered owner |
Reederei M.Lauterjung GmbH & Co. KG MS "LANGEOOG" Promenade Am Alten Binnenhafen 10 26721 Emden Germany |
|
Latest data adjustment |
25 February 2024 |
