| Westerschelde 01 September 2015 |
 |
|
| Westerschelde 01/09/15 | |
|
Name |

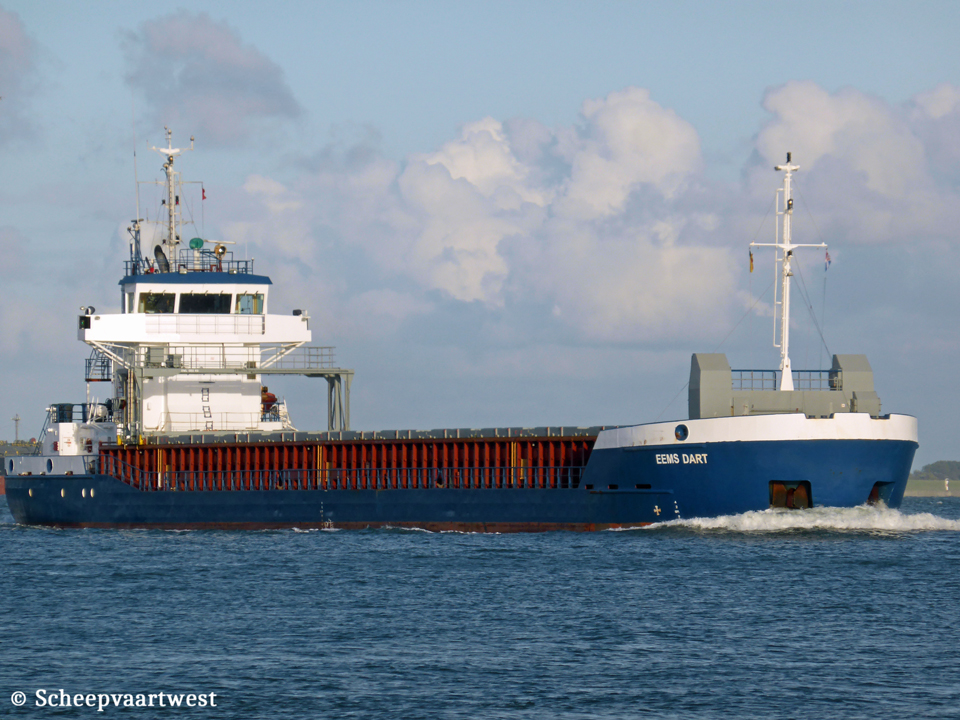

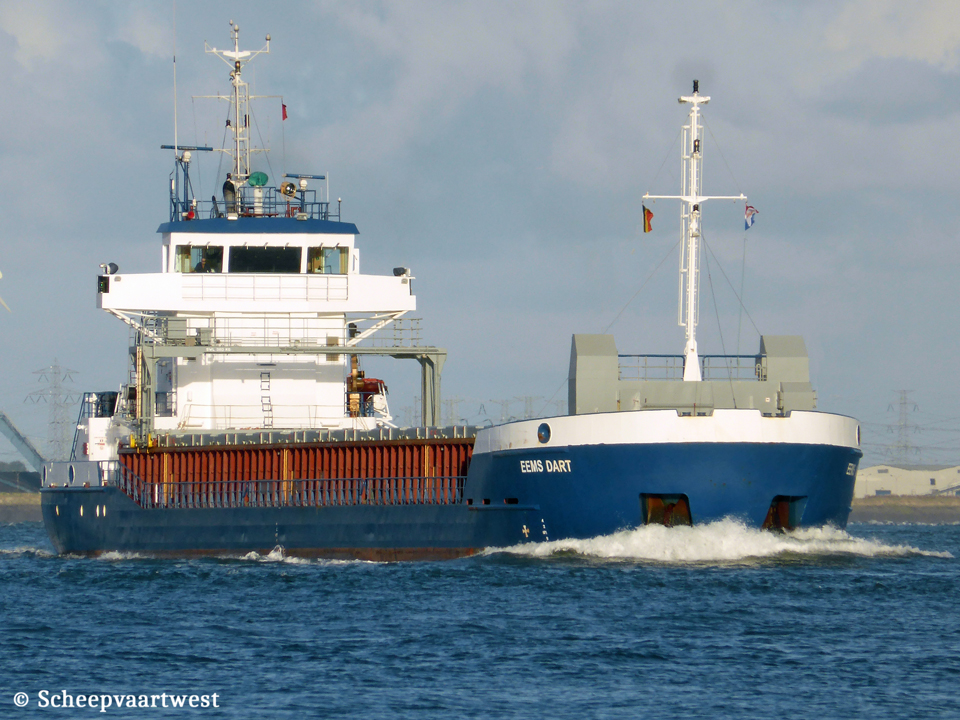

EEMS DART |
|
Previous names |
02/2002 - 08/2007 Esperance 08/2007 - 07/2012 Amny Dollard |
|
Type |
General cargo ship - Heavycargo |
|
IMO-number |
9195640 |
|
Call sign |
ZDIK5 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
Previous flags |
02/2002 - 08/2007 The Netherlands, Tholen - Call sign: PBFX 08/2007 - 01/2008 The Netherlands, Rhoon - Call sign: PBFX |
|
GT |
2.545 t |
|
DWT |
3.725 t |
|
DWCC |
Summer: 3.650 t Winter: 3.500 t |
|
NT |
1.460 t |
|
Displacement |
4.980 t |
|
Number of 20ft containers |
193 |
|
Length |
88,60 m overall 84,99 m between perpendiculars |
|
Breadth |
12,50 m moulded |
|
Draught |
5,42 m |
|
Keel to mast end |
24,80 m |
|
Air draft |
21,50 m |
|
Depth |
7,00 m moulded |
|
Speed |
Max: 12,0 knots Service: 10,5 knots |
|
Built |
2002 |
|
Keel laid |
24/06/1998 |
|
Delivery date |
22/03/2002 |
|
Builder casco |
Deawoo-Mangalia Heavy Industries S.A. Mangalia Romania Yard number: 1039 |
|
Builder completion |
B.V. Damen Scheepswerf Bergum Bergum The Netherlands Yard number: 9334 |
|
Hull material |
Ordinary steel |
|
Hull type |
Double side-skin |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M20 - 4 stroke single acting 8 cylinder 200 x 300 mm combustion engine 1.520 kW / 2.067 hp at 1.000 rpm Manufacturer: M.A.K. Caterpillar Motoren G.m.b.H., Kiel- Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 256 rpm |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 230 V Frequency: 50 Hz |
|
Shaft generator |
1x 264 kW |
|
Generators |
1x Main diesel generatorset 175 kW |
|
Emergency generator |
1x Diesel generatorset 77 kW |
|
Bow thruster |
1x 1.470 kW |
|
Number of holds |
1 62,50 x 10,12 x 8,40 m |
|
Cargo hold capacity |
Grain & Bale: 5.250 m³ / 185.338 ft³ |
|
Number of hatches |
1 62,90x 10,35 m |
|
Hatch cover type |
Pontoon |
|
Max permitted loads |
On deck: 1,6 t/m² Tanktop: 15,0 t/m² |
|
Crew size |
8 |
|
Manager |
Amasus Shipping B.V. Abel Tasmanplein 4 9934 GD Delfzijl The Netherlands |
|
Previous managers |
02/2002 - 08/2007 Geuze Shipping B.V., Poortvliet - The Netherlands 08/2007 - 07/2012 VW-NYKI Shipping B.V., Rhoon - The Netherlands |
|
Registered owner |
Amny Dollard BV, Rhoon - The Netherlands Care of Amasus Shipping BV Abel Tasmanplein 4 9934 GD Delfzijl The Netherlands |
|
Previous names & owners |
02/2002 - 08/2007 Esperance - Geuze Shipping B.V., Poortvliet - The Netherlands 08/2007 - 07/2012 Amny Dollard - Amny Dollard B.V., Rhoon - The Netherlands |
|
Latest data adjustment |
02 March 2024 |
