| Westerschelde 01 September 2015 |
|
Name |

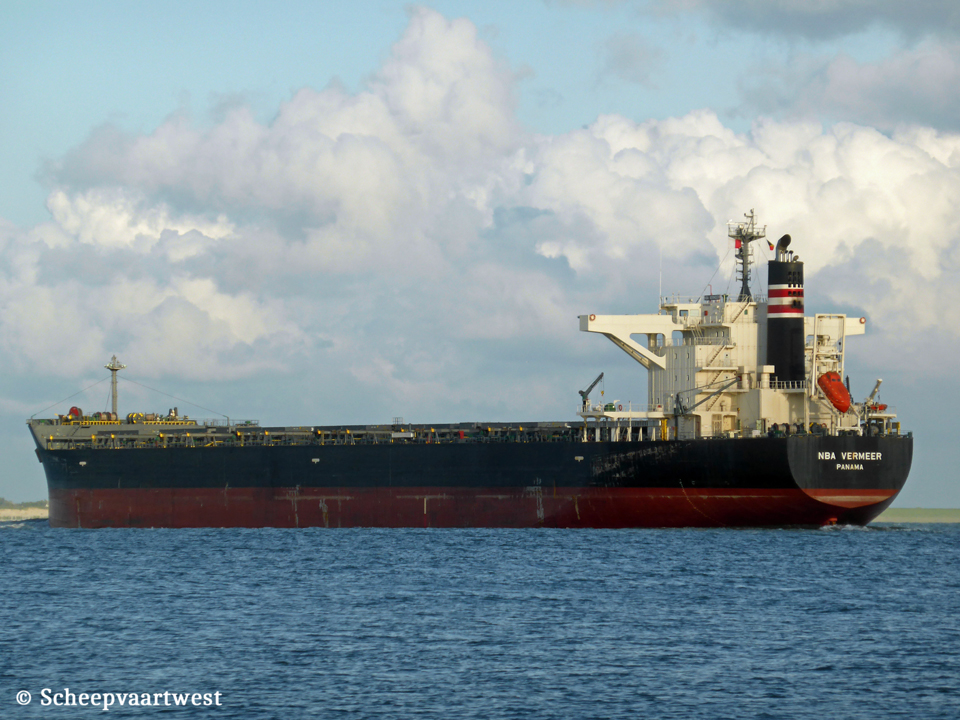

NBA VERMEER |
|
Type |
Gearless bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9624249 |
|
Call sign |
3EXU3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
50.625 t |
|
DWT |
95.708 t |
|
NRT |
31.470 t |
|
Length |
234,98 m overall |
|
Breadth |
38,00 m |
|
Moulded L x B x D |
227,00 x 38,00 x 19,90 m |
|
Registered L x B x D |
227,71 x 38,00 x 19,90 m |
|
Draught |
Summer: 14,47 m |
|
Freeboard |
Summer: 5.483 mm |
|
Depth |
19,90 m moulded |
|
Speed |
Max: 16,9 knots Service: 14,5 knots |
|
Built |
2012 |
|
Keel laid |
23/06/2010 |
|
Launch date |
14/07/2012 |
|
Date of completion |
19/09/2012 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Marugame Headquarters Marugame Japan |
|
Yard number |
1584 |
|
Hull material |
Steel |
|
Main engine |
1x Hitachi/MAN-B&W 6S60MC-C - 2 stroke single acting 6 cylinder 600 x 2.400 mm combustion engine 12.950 kW / 17.607 hp at 101,0 rpm Manufacturer: Hitachi Zosen Corporation Ariake Works |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 585 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,8 MPa Evaporation: 2,90 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generatorsets total 1.965 kVA |
|
Number of holds |
7 |
|
Cargo hold capacity |
Grain: 109.476 m³ |
|
Tank capacities |
Fuel oil: 4.006 m³ Fresh water: 448 m³ |
|
Commercial manager |
NYK Bulkship Atlantic NV Noorderplaats 7 2000 Antwerpen Belgium |
|
ISM Manager |
NYK Shipmanagement Pte Ltd. 15-01, HarbourFront Tower One, 1 Harbourfront Place Singapore 098633 Republic of Singapore |
|
Registered owner |
NYK Bulkship Atlantic NV Noorderplaats 7 2000 Antwerpen Belgium |
|
Latest data adjustment |
02 March 2024 |
