| Westerschelde 24 February 2018 |
|
Name |

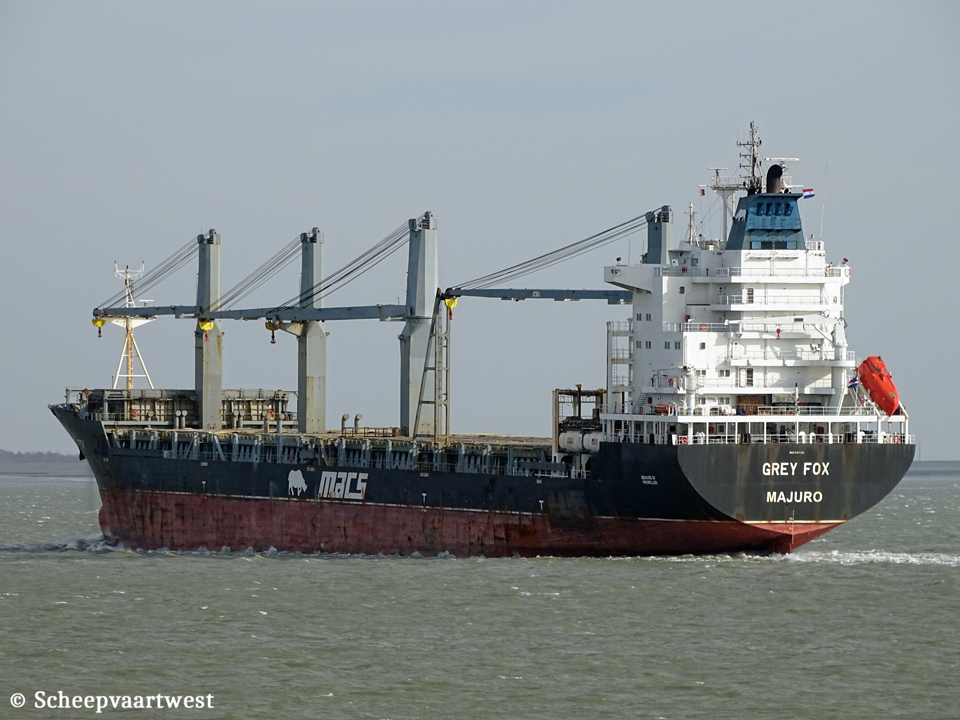

GREY FOX |
|
Type |
Multi-purpose dry cargo ships - Equipped for carriage of containers |
|
IMO-number |
9151905 |
|
Call sign |
V7LD4 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
1998 - 1998 Germany, Hamburg 1998 - 2003 Liberia, Monrovia 2003 - 2005 Marshall islands, Majuro 2005 - 2006 Germany, Hamburg - Call sign: DGMB |
|
GT |
23.401 t |
|
DWT |
33.684 t |
|
NT |
13.150 t |
|
Number of 20ft containers |
1486 |
|
Length |
192,25 m overall 180,80 m between perpendiculars |
|
Breadth |
26,70 m |
|
Draught |
Summer: 11,40 m |
|
Forecastle |
25,65 m |
|
Poop |
14,40 m |
|
Freeboard |
4.129 mm |
|
Depth |
15,51 m |
|
Speed |
Max: 16,0 knots |
|
Built |
1998 |
|
Keel laid |
21/10/1997 |
|
Launch date |
25/03/1998 |
|
Date of completion |
30/06/1998 |
|
Builder |
Shanghai Shipyard & Chengxi Shipyard Co., Ltd. 1, Jimo Road Pudong Shanghai 200120 People's Republic of China |
|
Yard number |
169 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x Sulzer 8 RTA 52 U - 2 stroke 8 cylinder 520 x 1.800 mm combustion engine 12.480 kW / 16.968 hp at 135 rpm Year of manufacture: 1996 Manufacturer: Shanghai Shipyard & Chengxi Shipyard Co., Ltd. 1, Jimo Road Pudong Shanghai 200120 People's Republic of China |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 38,0 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 172,0 m² Year of manufacture: 1996 Manufacturer: Jiangsu Hailu Boiler Co., Ltd. 17, Huancheng Nan Road Zhangjiagang 215600, Jiangsu People's Republic of China |
|
Electric installations |
3x Plant 440/220 V - 920 kVA 1x Plant 440 V - 125 kVA |
|
Generators |
3x Main diesel generatorsets each 920 kVA |
|
Emergency generator |
1x Diesel generatorset 125 kVA |
|
Compressed air receivers |
2x Receivers each 4.000 litres - 30,0 bar 2x Receivers each 400 litres - 30,0 bar 1x Receiver 1.000 litres - 12,0 bar |
|
Cargo hold capacity |
Grain 45.015 m³ |
|
Tank capacities |
Fuel oil: 2.457 m³ Water ballast: 8.936 m³ |
|
Anchor equipment |
3x Anchors weight each 8.300 kg Chain length: 632,50 m |
|
Cargo gear |
1x Deck crane - SWL 80,0 t 3x Deck cranes - SWL 40,0 t each |
|
Manager |
MACS - Maritime Carrier Shipping GmbH & Co. Hamburg Germany |
|
Registered owner |
Grey Fox Shipping GmbH & Co. c/o Macs Maritime Carrier Shipping GmbH Co. Hamburg Germany |
|
Renamed |
07/2018 Grey Palau, Malakal Harbor - Call sign: T8A2939 Owner: Gemini Marine (No. 4) Ltd. |
|
Scrapped |
12/08/2018 Beached at Gadani - Pakistan Scrapped by Horizon Ship Recycling, Karachi - Pakistan |
|
Latest data adjustment |
24 March 2024 |
