Name
|

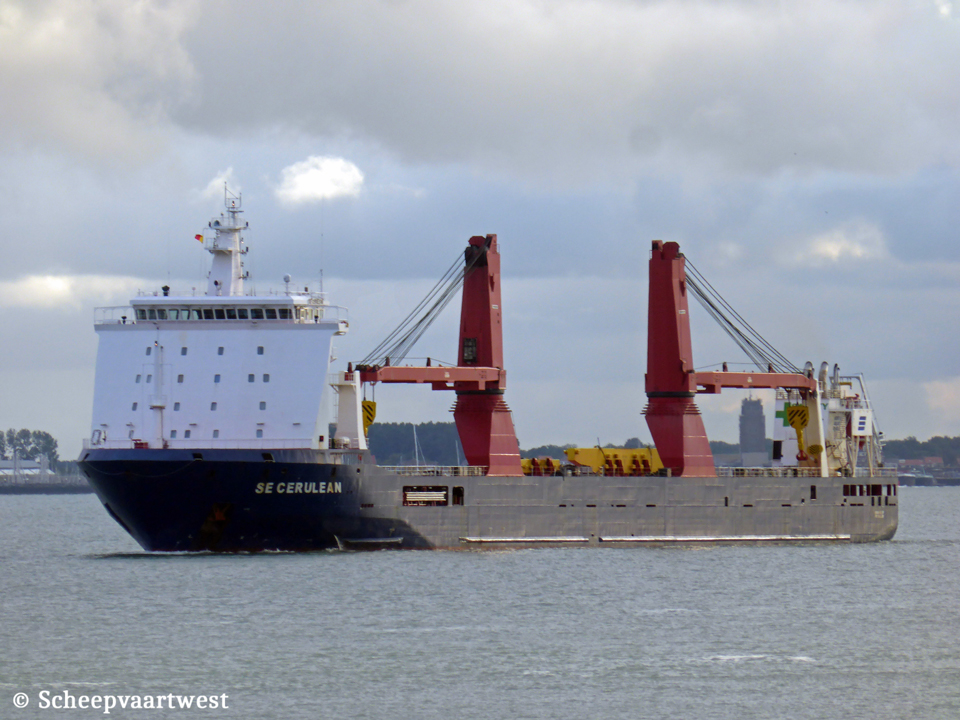

SE CERULEAN
|
|
Type
|
Multi-purpose dry carrier - Heavy lifter
Removable tweendeck
Open hatch box type
|
|
IMO-number
|
9655169
|
|
Call sign
|
9V9934
|
|
Flag
|
Republic of Singapore
|
|
Port of registry
|
Singapore City
|
|
GT
|
19.454 t
|
|
DWT
|
25.240 t
|
|
NT
|
8.055 t
|
|
Number of 20ft containers
|
On deck: 810
Inhold: 470
Total: 1.280
|
|
Number of 40ft containers
|
On deck: 390
Inhold: 190
Total: 580
|
|
Container capacity 14t
|
790 (teu) / 470 teu (under deck + 320 teu (on deck)
450 (feu)/180 feu (under deck ) + 270 feu (on deck)
|
|
Length
|
167,70 m overall
|
|
Breadth
|
26,00 m
|
|
Draught
|
Summer: 10,46 m fully laden
|
|
Reg. Dimensions L x B x D
|
158,23 x 26,00 x 14,30 m
|
|
Rule dimensions L x B x D
|
158,23 x 26,00 x 14,30 m
|
|
Keel to mast end
|
44,90 m
|
|
Freeboard
|
Summer: 3.852 mm
|
|
Depth
|
13,30 m
|
|
Speed
|
Max: 16,5 knots
Service: 13,0 knots
|
|
Built
|
2013
|
|
Keel laid
|
31/12/2010
|
|
Launch date
|
12/09/2012
|
|
Date of completion
|
07/06/2013
|
|
Builder
|
Sainty Shipbuilding (Yangzhou) Corporation Ltd.
Yangzhou
China
|
|
Yard number
|
SAM 10018M
|
|
Hull material
|
Steel
|
|
Main engine
|
2x Bergen B32:40L9P - 4 stroke 9 cylinder 320 x 400 mm combustion engine total 9.000 kW / 12.236 hhp at 780 rpm
Builder: Rolls-Royce Marine AS / Engine, Bergen - Norway
|
|
Propellers
|
1x Controllable pitch propeller
|
|
Boilers
|
1x Auxiliary Boiler STB - 8,8 kg/cm²
1x Economizer STB - 8,8 kg/cm²
Manufacturer: Aalborg Heaters A/S
|
|
Generators
|
3x Main diesel generatorsets each 1.400 kVA - 440 Volt
|
|
Number of holds
|
2
Hold 1: 23,40 x 20,50 m
Hold 2: 76,05 x 20,50 m
|
|
Cargo hold capacity
|
Bale: 28.687 m³
|
|
Number of hatches
|
2
|
|
Floor space
|
Under deck: 3.949 m²
On deck: 3.531 m²
|
|
Max permitted loads
|
Tanktop: 20,0 t/m²
Tweendeck: 4,0 t/m²
Hatch cover: 3,0 t m³
|
|
Tank capacities
|
Fuel oil: 1.738,9 m³
Fresh water: 255,2 m³
Water ballast: 12.167,9 m³
|
|
Cargo gear
|
2x Electro hydraulic Mac Gregor deck cranes - SWL 450 t each
|
|
Operator
|
SE Shipping Lines
Singapore City
Republic of Singapore
|
|
Registered owner
|
SE Shipping Lines Pte
|
|
Renamed
|
2015 Cerulean
Liberia, Monrovia - Call sign: 5LLN2
Owner: Starleena Shipping Pte Ltd.- Republic of Singapore
Manager: Skeiron Logistics Pte Ltd.- Republic of Singapore
|
|
Latest data adjustment
|
23 March 2024
|
