| Westerschelde 23 August 2016 |
|
Name |

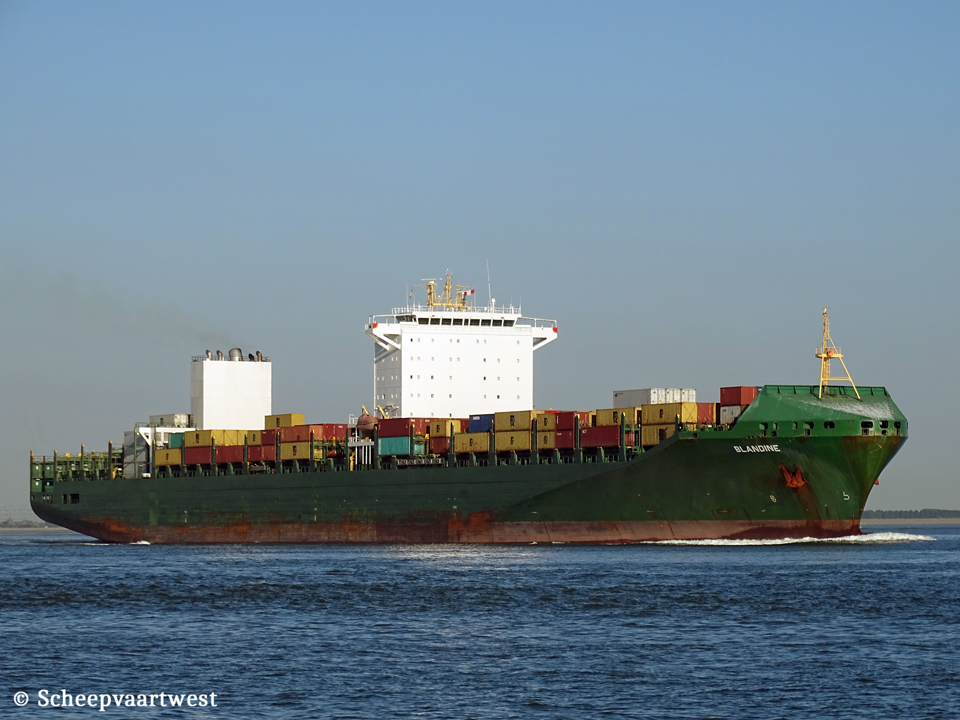

BLANDINE |
|
Previous names |
Launch as: 2009 Medbaffin 09/2009 - 07/2014 CSAV Suape 07/2014 Sonche Trader |
|
Type |
Cellular containership - Panamax |
|
IMO-number |
9437048 |
|
Call sign |
CQDR |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
2009 - 09/2009 Cyprus, Limassol 2009 – 09/2017 Liberia, Monrovia – Call sign: A8TR6 |
|
GT |
52.726 t |
|
DWT |
Summer: 65.700 t |
|
NT |
32.613 t |
|
Light ship |
22.108 t |
|
Number of 20ft containers |
5.301 |
|
Number of 40ft containers |
1.025 |
|
Container capacity 14t |
3.360 |
|
Reefer capacity |
1.200 |
|
Length |
294,09 m overall 282,47 m between perpendiculars |
|
Breadth |
33,20 m registered |
|
Draught |
13,62 m |
|
Forecastle |
141,60 m |
|
Bridge |
119,13 m |
|
Depth |
21,60 m moulded |
|
Speed |
24,1 knots |
|
Built |
2009 |
|
Keel laid |
30/06/2008 |
|
Launch date |
30/03/2009 |
|
Date of completion |
12/09/2009 |
|
Builder |
Zhejiang Ouhua Shipbuilding Co., Ltd. XiaoGan Island PuTuo District Zhoushan City, Zhejiang People's Republic of China |
|
Yard number |
516 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 7RT-flex96C - 2 stroke 7 cylinder 960 x 2.500 mm combustion engine 40.040 kW / 54.439 hp at 102,0 rpm Year of manufacture: 2008 Manufacturer: Doosan Engine Co., Ltd. 18, Gongdanro21-gil, Sungsan-gu Changwon, Kyongsang-namdo Republic of Korea |
|
Main engine electric |
1x Electric motor 4.000 kW at 102,0 rpm Manufacturer: VEM Sachsenwerk GmbH Pirnaer Landstr. 176 01257 Dresden Federal Republic of Germany |
|
Propellers |
1x Solid propeller (keyless), aft at 102,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 115,0 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 570,0 m² Year of manufacture: 2008 Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. Machinery Industry Park Qingdao Development Area Qingdao, Shandong People's Republic of China |
|
Electric installations |
1x Pant 6.600 V - 5.130 kVA 3x Plants each 6.600 V - 5.760 kVA 1x Plant 2.200 V - 3223 kVA 1x Plant 450 V - 594 kVA 1x Plant 24 V - 12 Ah 2x Plants each 24 V - 90 Ah 2x Plants each 24 V - 100 Ah 1x Plant 24 V - 180 Ah 2x Plants each 24 V - 200 Ah |
|
Shaft generator |
1x 3.223 kVA |
|
Generators |
3x MAN-B&W 9L32/40 main diesel generatorsets each 5.760 kVA 1x MAN-B&W 8L32/40 main diesel generator 5.130 kVA |
|
Emergency generator |
1x Diesel generatorset 594 kVA |
|
Batteries |
2x Batteries for automation each 200 Ah 1x Battery for UPS navigation 180 Ah 2x Batteries for other purpose each 100 Ah 2x Batteries for start emergency engine each 90 Ah 1x Battery for automation 12 Ah |
|
Compressed air receivers |
2x Receivers each 14.000 litres - 30,0 bar 1x Receiver 710 litres - 30,0 bar 1x Receiver 160 litres - 10,0 bar 1x Receiver 2.500 litres - 8,0 bar |
|
Bow thruster |
1x Transverse thruster 2.000 kW, forward |
|
Anchor equipment |
3x Anchors weight each 12.900 kg Chain length: 715,00 m |
|
Group |
Peter Döhle |
|
Renamed |
09/2021 GSL Tripoli Liberia, Monrovia – Call sign: 5LBR8 Manager: Technomar Shipping Inc. Registered owner: Sea 252 Leasing Co., Limited |
|
Latest data adjustment |
11 August 2024 |
