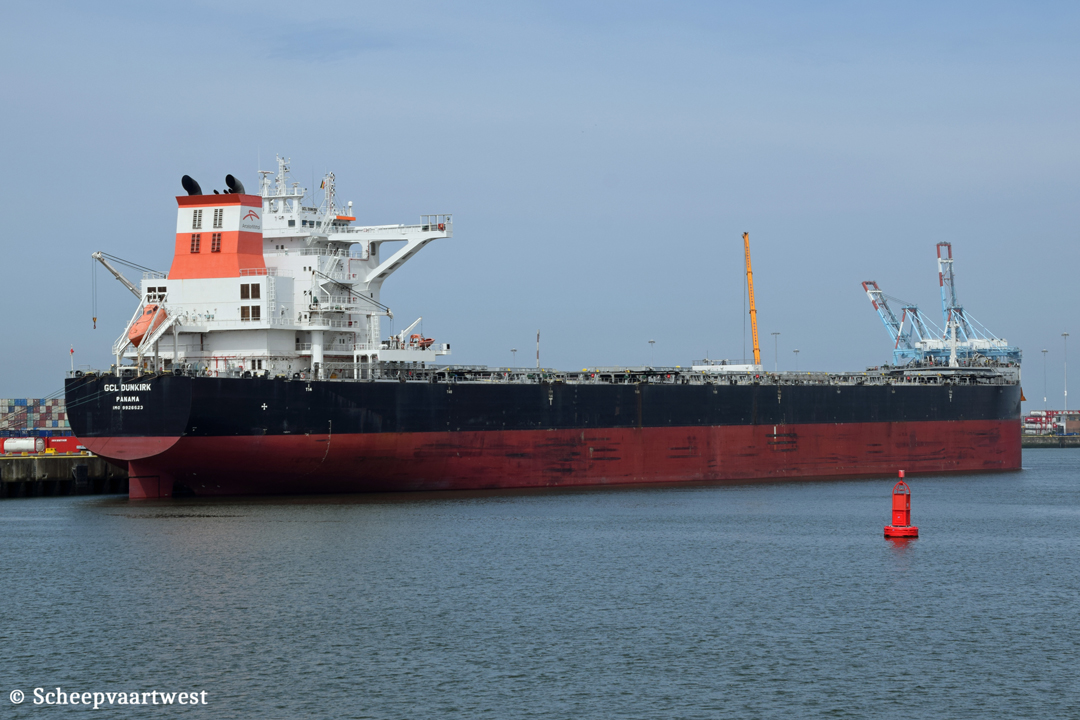

GCL Dunkirk IMO 9926623 03
Zeebrugge 17 May 2024

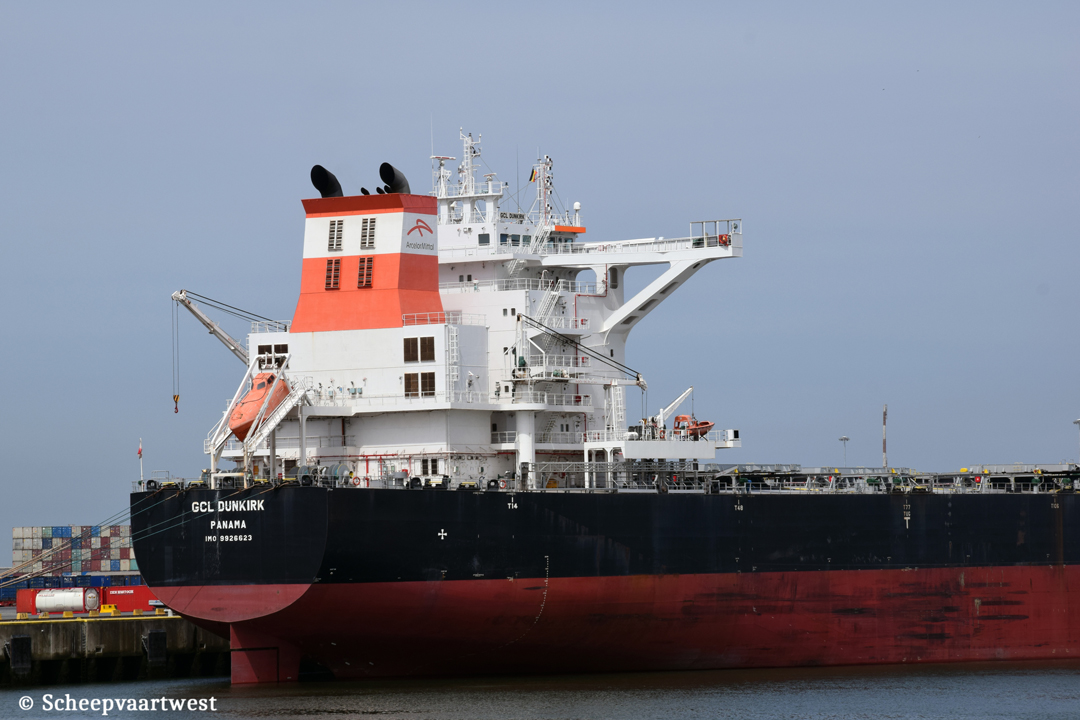

GCL Dunkirk IMO 9926623 04
Zeebrugge 17/05/24


Name

GCL DUNKIRK

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9926623

Call sign

3E2074

Flag

Republic of Panama

Port of registry

Panama City

GRT

94.973 t

DWT

180.953 t

NRT

58.824 t

Length

291,50 m overall

Breadth

45,00 m moulded

Draught

Summer: 18,32 m

Moulded L x B x D

286,50 x 45,00 x 24,90 m

Registered L x B x D

286,50 x 45,00 x 24,90 m

Freeboard

6.634 mm

Depth

24,90 m moulded

Built

2022

Keel laid

16/12/2015

Launch date

20/10/2021

Date of completion

11/01/2022

Builder

Jiangsu Yangzi Xinfu Shipbuilding Co., Ltd.

Jiangsu

China

Yard number

YZJ2015-2027

Hull material

Steel

Main engine

1x 2 stroke single acting 6 cylinder 700 x 3.256 mm combustion engine 14.800 kW at 72,0 rpm

Manufacturer: CSSC-MES Diesel Co., Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 700 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 0,90 MPa

Evaporation: 5.,34 t/h

Manufacturer :Miura Co., Ltd.

Generators

4x Generatorsets total 4.813 kVA

Cargo hold capacity

Grain: 197.982,7 m³

Tank capacities

Fuel oil: 5.894,5 m³

Fresh water: 709,1 m³

Crew

21

Manager

Dalian Dongrong Ship Management Co.,Ltd.

Operator

Nikko Kisen Co., Ltd. & Sun Lanes Shipping S.A.

Latest data adjustment

21 May 2024
