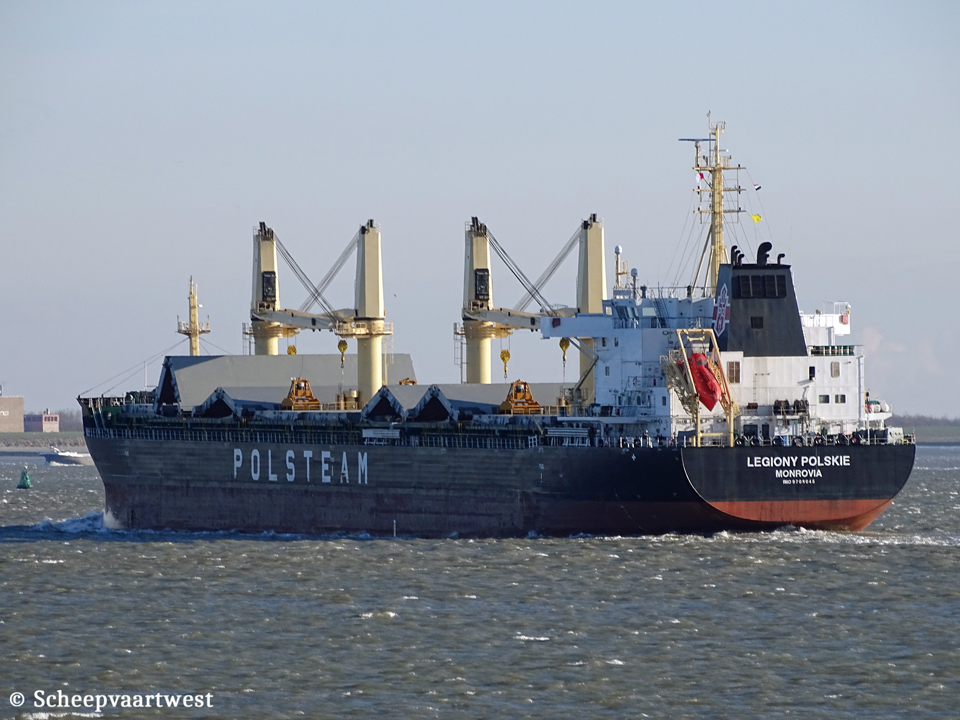

| Westerschelde 07 January 2018 |
|
Name |
LEGIONY POLSKIE |
|
Type |
Single Deck, Double skinned, Box, Open hatch, Self-trimming bulk carrier Armia Krajowa type |
|
IMO-number |
9708045 |
|
Call sign |
D5JD8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GRT |
25.278 t |
|
DWT |
Summer: 39.085,5 t Winter: 37.957,2 t |
|
NRT |
13.009 t |
|
Light ship |
10.141 t |
|
Length |
179,99 m overall 176,65 m between perpendiculars |
|
Breadth |
30,03 m |
|
Draught |
Summer: 10,50 m Winter: 10,28 m |
|
Keel to mast end |
44,00 m |
|
Depth |
15,00 m moulded |
|
Speed |
Ballast: 14,2 knots - Eco: 12,5 knots Laden: 13,0 knots - Eco: 12,0 knots |
|
Built |
2016 |
|
Keel laid |
14/11/2013 |
|
Launch date |
08/12/2015 |
|
Date of completion |
22/07/2016 |
|
Builder |
Zhejiang Yangfan Zhoushan China |
|
Yard number |
BC38K-PZ02 |
|
Hull material |
Steel |
|
Hull type |
Double skinned |
|
Movable bulkheads |
4 |
|
Main engine |
MAN-B&W 5S50ME-B9 - 2 stroke 5 cylinder 500 x 2.214 mm combustion engine 6.050 kW / 8.226 hp at 99,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Generators |
3x Main diesel generatorsets each 750 kVA - 440 Volt |
|
Emergency generator |
1x Diesel generatorset 150 kVA - 440 Volt |
|
Number of holds |
5 Hold 1: 23,20 x 20,80 x 15,40 m Hold 1: 31,20 x 25,40 x 15,40 m Hold 3: 31,20 x 25,40 x 15,40 m Hold 4: 31,20 x 25,40 x 15,40 m Hold 5: 17,20 x 25,40 x 15,40 m |
|
Caro hold capacity |
Grain: Hold 1: 7.030 m³ / 248.276 ft³ Hold 2: 11.809 m³ / 417.013 ft³ Hold 3: 11.783 m³ / 416.127 ft³ Hold 4: 11.783 m³ / 416.127 ft³ Hold 5: 8.383 m³ / 296.057 ft³ Total: 50.789 m³ / 1.793.600 ft³ |
|
Hold ventilation |
Natural + Mechanical |
|
Number of hatches |
5 Hatch 1: 14,95 x 20,80 x 2,10 m Hatch 2: 23,40 x 25,40 x 2,10 m Hatch 3: 23,40 x 25,40 x 2,10 m Hatch 4: 23,40 x 25,40 x 2,10 m Hatch 5: 17,25 x 25,40 x 2,10 m |
|
Tank capacities |
Fuel oil: 955,7 t Diesel oil: 165,8 t Fresh water: 200,6 t |
|
Cargo gear |
4x Deck cranes - SWL 35,0 t each With grabs: 28,0 t |
|
ISM & commercial manager |
Polska Zegluga Morska PP Plac Rodla 8 70-419 Szczecin Poland |
|
Operator |
Polsteam Szczecin Poland |
|
Registered owner |
Jupiter Two Shipping Ltd. Care of Polska Zegluga Morska PP (POLSTEAM) Plac Rodla 8 70-419 Szczecin Poland |
|
Latest data adjustment |
21 June 2024 |
