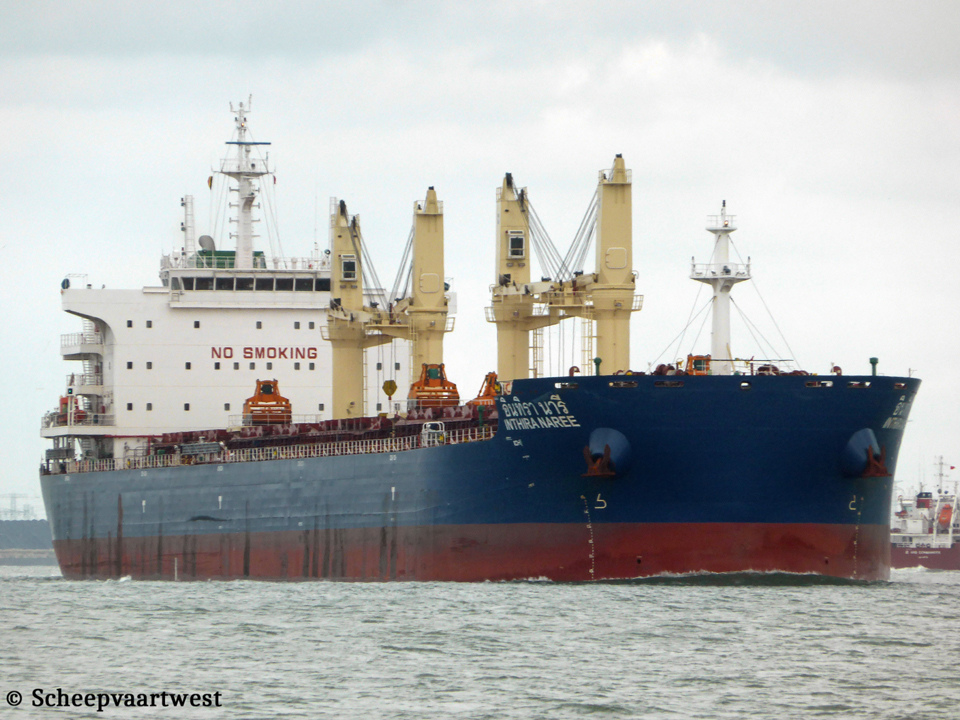

| Westerschelde 19 June 2015 |
|
Name |
INTHIRA NAREE |
|
Type |
Bulk carrier - Carriage of dangerous goods |
|
IMO-number |
9732199 |
|
Call sign |
HSRO |
|
Flag |
Thailand |
|
Port of registry |
Bangkok |
|
GT |
36.298 t Suez: 37.800,28 t |
|
DWT |
Summer: 63.455,8 t Winter: 61.730,0 t |
|
NT |
21.607 t Suez: 34.236,60 t Panama: 20.047 t |
|
Displacement |
75.196,6 t |
|
Length |
199,90 m overall 194,50 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 11,30 m Winter: 13,02 m |
|
Keel to mast end |
49,60 m |
|
Freeboard |
5.226 mm |
|
Depth |
18,50 m moulded |
|
Speed |
14,4 knots |
|
Built |
2014 |
|
Keel laid |
30/12/2013 |
|
Launch date |
19/04/2014 |
|
Delivery date |
03/07/2014 |
|
Builder |
Sainty Shipbuilding (Yangzhou) Corporation Ltd. 18 Binjiang East Road, Economic Development Zone, Puxi, Yizheng China |
|
Yard number |
SAM13010B |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x JAD/MAN-B&W -5S60ME-C8 - 5 cylinder 600 x 2.400 mm combustion engine Mcr 8.050 kW at 89,0 rpm Ncr: 6.842,5 kW at 84,5 rpm Manufacturer: Jiangsu Antai Power Machinery Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Zhenjiang Tongzhou Propeller Co., Ltd/ |
|
Boilers |
1x Composite boiler - 6,0 MPa Manufacturer: Greens Power Equipment (China) Ltd. |
|
Generators |
3x Main diesel generatorsets each 680 kW Manufacturer: Zhenjiang China Xiandai Generating Co., Ltd. |
|
Number of holds |
5 Hold 1: 19,20 x 17,70 x 18,68 m Hold 2: 22,30 x 17,70 x 18,68 m Hold 3: 22,30 x 17,70 x 18,50 m Hold 4: 22,30 x 17,70 x 18,50 m Hold 5: 22,30 x 17,70 x 18,50 m |
|
Cargo hold capacity |
Grain: Hold 1: 13.948,7 m³ Hold 2: 17.651,9 m³ Hold 3: 15.334,8 m³ Hold 4: 15.827,3 m³ Hold 5: 15.939,9 m³ Total: 78.702,60 m³ |
|
Number of hatches |
5 Hatch 1: 19,68 x 18,26 m Hatches 2-5: 22,96 x 1826 m |
|
Hatch cover type |
TTS Huahai - Hydraulic folding type |
|
Max permitted loads |
Hold 1,3,5: 25,0 t/m² Hold 2,4: 19,0 t/m² |
|
Tank capacities |
Diesel oil: 241,50 m³ Fresh water: 880,70 m³ Ballast: 33.064,70 m³ Lub oil: 180,61 m³ Fuel oil: 2.110,96 m³ |
|
Cargo gear |
4x Electro-Hydraulic centerline deck cranes - SWL 30,0 t each Manufacturer: TTS Bohai Machinery Dalian Co., Ltd. - China |
|
Commercial manager |
Precious Opals Limited 8/27-28, 7th Floor, Cathay House, North Sathorn Road, Silom, Bangrak Bangkok, 10500 Thailand |
|
ISM manager |
Great Circle Shipping Agency Limited 8/35, 10th Floor, Cathay House, North Sathorn Road, Silom, Bangrak Bangkok, 10500 Thailand |
|
Registered owner |
Precious Opals Limited 8/27-28, 7th Floor, Cathay House, North Sathorn Road, Silom, Bangrak Bangkok, 10500 Thailand |
|
Latest data adjustment |
17 July 2024 |
