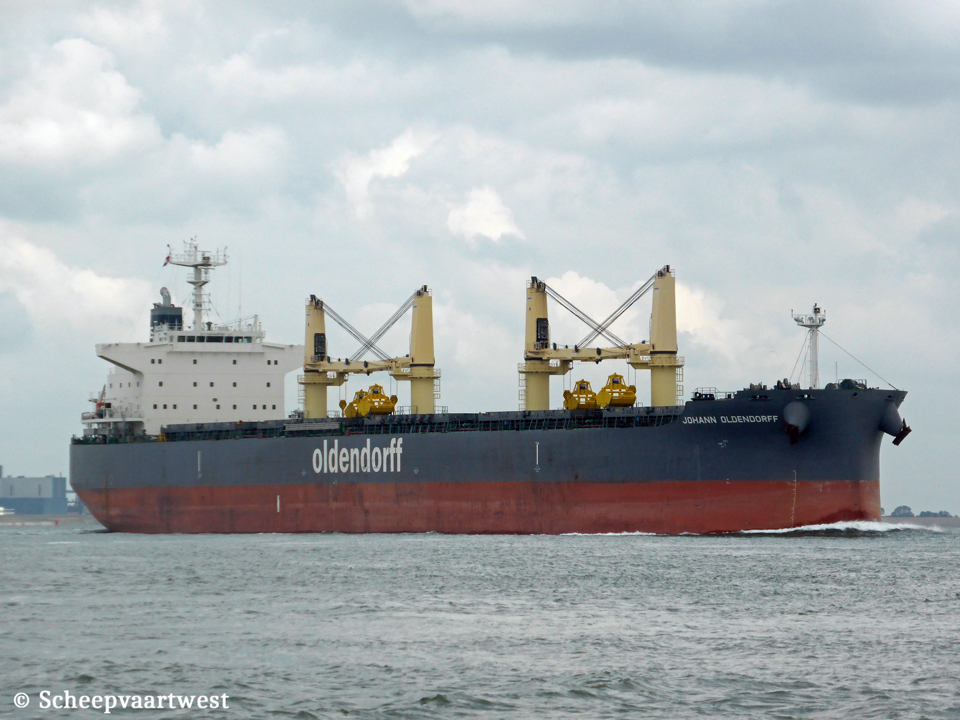

Johann Oldendorff IMO 9684471 01
Westerschelde 19 June 2015

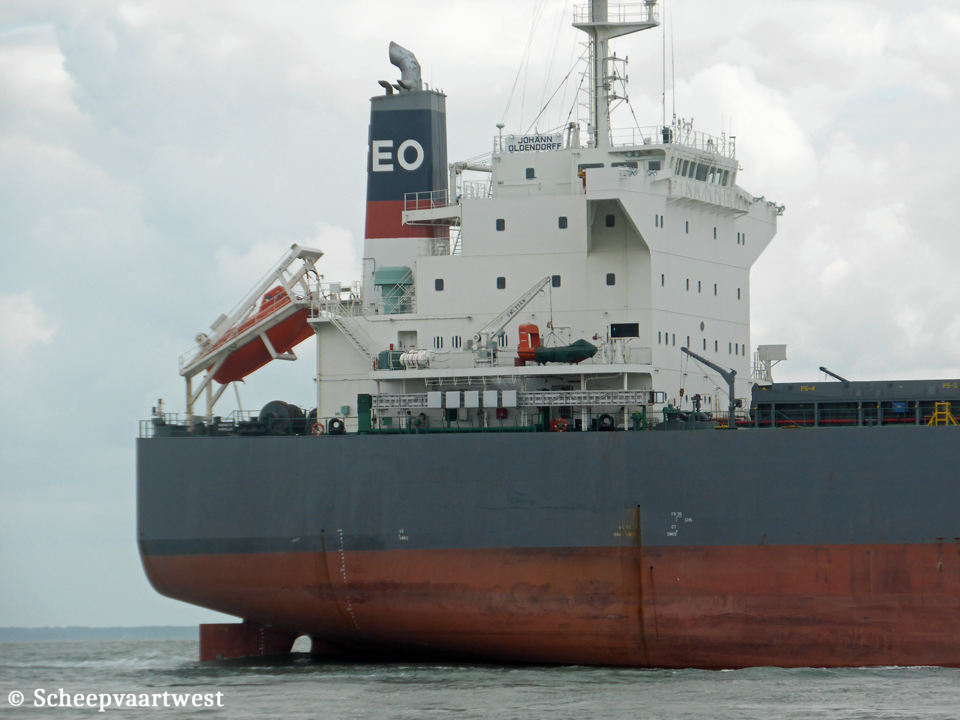

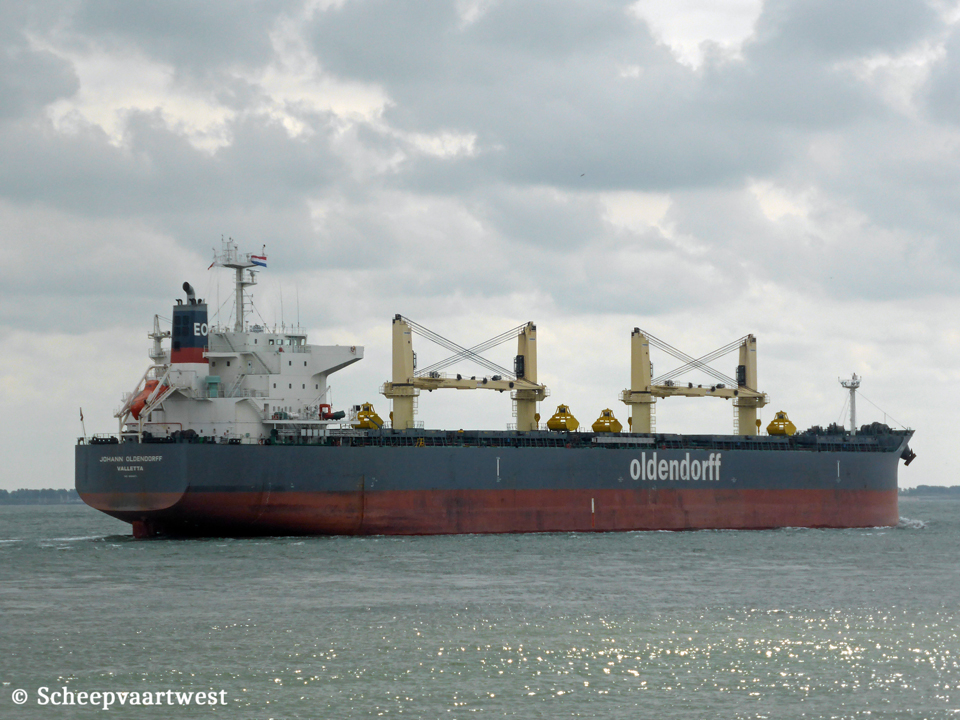

Johann Oldendorff IMO 9684471 03   Johann Oldendorff IMO 9684471 02
Westerschelde 19/06/15   Westerschelde 19/06/15


Name

JOHANN OLDENDORFF

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9684471

Call sign

9HA3615

Flag

Malta

Port of registry

Valletta

GT

34.612 t

DWT

Summer: 61.114 t

NT

20.170 t

Light ship

11.283 t

Length

199,90 m overall

Breadth

32,24 m

Draught

Max: 13,03 m

Moulded L x B x D

197,00 x 32,24 x 18,60 m

Registered L x B x D

197,00 x 32,24 x 18,60 m

Freeboard

5.627 mm

Depth

18,60 m moulded

Speed

Max: 16,1 knots

Service: 15,0 knots

Built

2014

Keel laid

26/09/2013

Launch date

27/03/2014

Date of completion

30/05/2014

Builder

Nantong Cosco Shipyard

Nantong

China

Yard number

NE154

Hull material

Steel

Main engine

1x MAN-B&W/Hudong 6S50ME-B9.3 - 2 stroke single acting 6 cylinder 500 x 1.214 mm combustion engine 8.130 kW / 11.054 hp at 108,0 rpm

Manufacturer: Hudong Heavy Machinery Co., Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 490 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 8,0 bar

Evaporation: 2,84 t/h

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

4x Generators total 2.596 kW

Number of holds

5

Cargo hold capacity

Grain: 77.546 m³

Bale: 73.552 m³

Number of hatches

6

Tank capacities

Fuel oil: 2.173 m³

Fresh water: 319 m³

Water ballast: 18.247 m³

Cargo gear

4x Deck cranes - SWL 30,0 t each

Crew size

25

Owner

Johann Oldendorff (Oldendorff Carriers GmbH & Co. KG)

Willy-Brandt-Allee 6

23554 Lübeck

German

Renamed

2018 CL Daisy

Hong Kong (China), Hong Kong - Call sign: VRSD5

Registered owner: CL Daisy Co., Ltd.

ISM & commercial manager: Bernhard Schulte, Shanghai, 201203 - China

03/2023 Lynux Synergy

Republic of Panama, Panama City - Call sign: 3E4099

Owner: Tianjin Xihue XIII Leasing Ltd.

Manager: Lynux Shipping Bulk Pte. Ltd.

Latest data adjustment

17 July 2024
