Westerschelde 19 June 2015 |
Name |

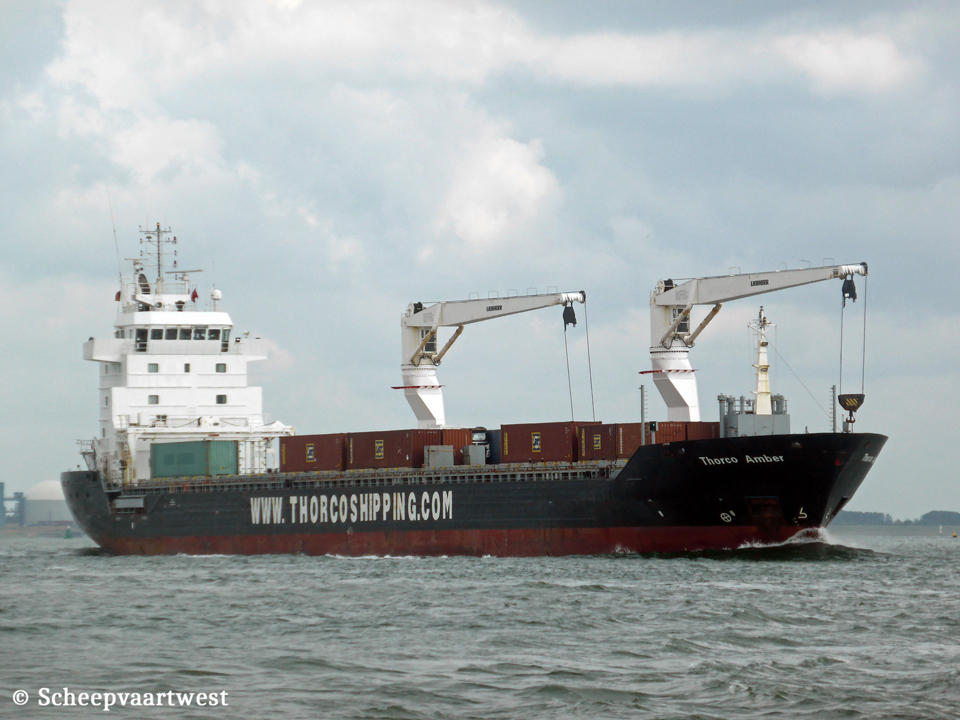

THORCO AMBER |
Previous names |
2011 - 2011 Beluga Notation 2011 - 2012 Enya |
Type |
Multi-purpose carrier - Single deck - Equipped for carriage of containers |
IMO-number |
9484247 |
Call sign |
V2QL8 |
Flag |
Antigua & Barbuda |
Port of registry |
St. John’s |
GT |
6.351 t |
DWT |
9.851 t |
DWCC |
9.000 t |
NT |
3.617 t |
Number of 20ft containers |
On deck: 206 In hold: 264 Total: 470 |
Container capacity 14t |
317 |
Reefer capacity |
20 on deck |
Length |
132,20 m overall 124,56 m between perpendiculars |
Breadth |
15,87 m extreme |
Draught |
Summer: 8,20 m |
Keel to mast end |
37,50 m |
Freeboard |
1.879 mm |
Depth |
9,65 m moulded |
Speed |
Max: 14,8 knots Service: 13,0 knots |
Built |
2011 |
Keel laid |
12/12/2007 |
Date of completion |
17/08/2011 |
Builder |
Qingdao Heshun Shipyard Co., Ltd. China |
Yard number |
H-8506 |
Hull material |
Steel |
Hull type |
Single hull |
Watertight bulkheads |
6 |
Main engine |
1x MaK 8M32C - 4 stroke 8 cylinder 320 x 480 mm combustion engine 3.840 kW / 5.217 hp at 600 rpm Built: 09/12/2009 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
Propellers |
1x Controllable pitch propeller - aft at 148 rpm |
Boilers |
1x CHR Tube Tec 77,00 m² - 10,0 bar 1x CHO Tube Tec 17,50 m² - 10,0 bar |
Shaft generator |
1x 694 kVA - 555 kW |
Generators |
2x Main diesel generatorsets each 405 kVA - 324 kW - 455 hp |
Emergency generator |
1x Diesel generatorset 117,5 kVA |
Bow thruster |
1x 500 kW |
Number of holds |
2x Box Hold 1: 40,36 x 13,20 x 10,86 m Hold 2: 52,54 x 13,20 x 10,86 m |
Cargo hold capacity |
Hold 1 bale/grain: 5.028,19 m³ Hold 2 bale/grain: 7.010,23 m³ Total: 12.038,42 m³ |
Hold space |
Hold 1:
Hold 2:
|
Hold ventilation |
12x Air changes per hour |
Number of hatches |
2 |
Max permitted loads |
Tanktop: 15,0 t/m² Tween deck: 3,50 t/m² Hatch cover: 1,75 t/m² |
Tank capacities |
HFO: 540,73 m³ MGO: 59,70 m³ Ballast: 3.537,88 m³ Fresh water: 73,11 m³ |
Lifting equipment |
1x Gantry crane to remove hatchcover panels |
Cargo gear |
2x Liebherr electro hydraulic cranes - SWL 60 t each |
Crew size |
12 |
Manager |
Heino Winter Gmbh & Co KG Hamburg Germany |
Owner |
TS Thorco Amber Ltd. c/o Reedereiverwaltung Heino Winter GmbH Co KG Hamburg Germany |
Renamed |
2017 Unisea Antigua & Barbuda, St. John’s - Call sign: V2QL8 Registered owner: MS "UNISEA" UG (haftungsbeschränkt) & Co. KG Manager: Held Bereederungs Gmbh & Co KG, 49733 Haren (Ems) - Germany 10/2022 O7 Vega S Antigua & Barbuda, St. John’s - Call sign: V2QL8 Manager: Reederei Jens Und Waller GmbH & Co., KG, Drochtersen - Germany |
Latest data adjustment |
18 July 2024 |
