Name |

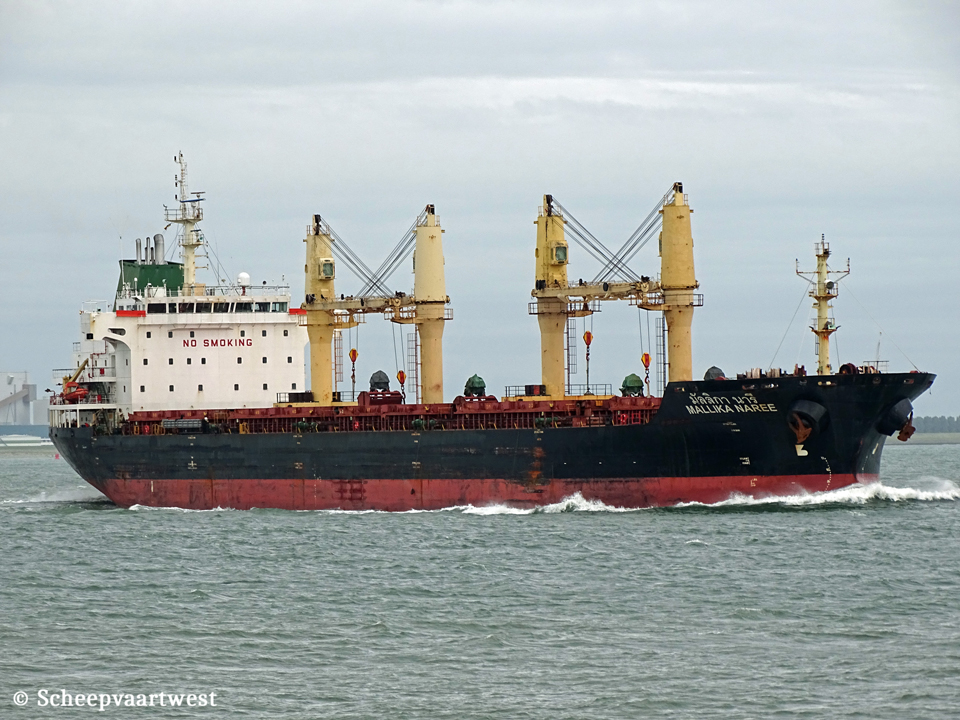

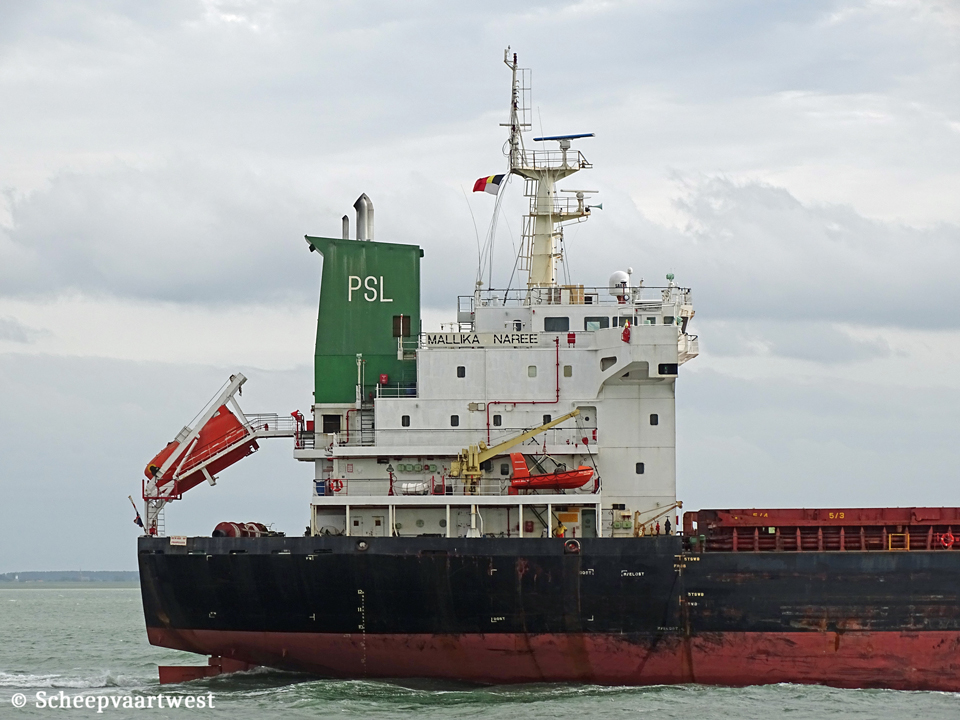

MALLIKA NAREE |
|
Previous names |
05/2008 - 04/2012 Good Pacific |
|
Type |
Geared grab fitted bulk carrier |
|
IMO-number |
9354739 |
|
Call sign |
HSDM |
|
Flag |
Thailand |
|
Port of registry |
Bangkok |
|
GT |
19.891 t |
|
DWT |
Summer: 30.195,25 t Winter: 28.938,8 t Suez: 20.646,11 t |
|
NT |
10.297 t Suez: 18.299,12 t |
|
Displacement |
30.195,25 |
|
Length |
178,66 m overall 170,82 m between perpendiculars |
|
Breadth |
28,05 m overall |
|
Draught |
Summer: 9,72 m Winter: 9,52 m |
|
Keel to mast end |
43,70 m |
|
Freeboard |
4.328 mm |
|
Depth |
13,99 m moulded |
|
Speed |
Max: 14,3 knots Service: 13,5 knots |
|
Built |
2008 |
|
Keel laid |
01/02/2007 |
|
Launch date |
27/12/2007 |
|
Delivery date |
07/05/2008 |
|
Builder |
Hindustan Shipyard Ltd. Gandhigram Visakhapatnam India |
|
Yard number |
11117 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x STX/MAN-B&W 6S42 MC Mk7 - 6 cylinder 420 x 1.764 mm combustion engine Mcr 6.232 kW / 8.357 bhp at 130,8 rpm Manufacturer: STX Engine Co., Ltd. |
|
Propellers |
1 Manufacturer: Sil La Metal Co. Ltd. |
|
Boilers |
1x Composite Auxiliary boiler - 9,0 MPa Manufacturer: Kang Rim Ind. Co. Ltd. |
|
Generators |
3x Yanmar E-6N18L- EV main diesel engines each 500 kW connected with generators each 625 kVA / 450 Volt 60 Hz, 3 phase Manufacturer: Taiyo Electric Co., Ltd. |
|
Number of holds |
5 Tanktop: Hold 1 W (FWD 1,60 m, AFT 19,60 m) x L 26,40 m Hold 2 W (FWD 19,90 m, AFT 22,40 m) x L 25,60 m Hold 3 W (FWD 22,40 m, AFT 22,40 m) x L 27,20 m Hold 4 W (FWD 22,40 m, AFT 22,40 m) x L 26,40 m Hold 5 W (FWD 22,40 m, AFT 6,4 m) x L 27,20 m |
|
Cargo hold capacity |
Grain / Bale Hold 1: 6.064,40 m³ / 5.605 m³ Hold 2: 8.665,90 m³ / 8.265 m³ Hold 3: 9.189,70 m³ / 8.455 m³ Hold 4: 8.944,10 m³ / 8.075 m³ Hold 5: 8.110,80 m³ / 7.600 m³ Total: 40.974,9 m³ / 38.000 m³ |
|
Number of hatches |
5 Hatch 1: 16,60 x 15,00 m Hatch 2: 20,80 x 21,00 m Hatch 3: 20,80 x 21,00 m Hatch 4: 20,80 x 21,00 m Hatch 5: 20,80 x 21,00 m |
|
Hatch cover type |
Seohae marine system, folding type opening by electro hydraulic |
|
Max permitted loads |
Hatch 1: 7,76 m² Hatch 2: 3,60 t/m² Hatches 3,4,5: 3,50 t/m² Tanktop: 20,0 t/m² |
|
Tank capacities |
Diesel oil: 196,80 m³ Lub oil: 118,50 m³ Ballast: 29.715,67 m³ Fuel oil: 1.728,60 m³ Fresh water: 218,00 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each Grabs: 12,0 m³ |
|
Commercial manager |
PSL - Precious Shipping Public Company Limited raju joseph karkapally 8/27-28, 8th Floor, Cathay House, North Sathorn Road, Silom, Bangrak Bangkok 10500 Thailand |
|
ISM manager |
Great Circle Shipping Agency Ltd., 8/35, North Sathorn Road Bangkok 10500 Thailand |
|
Registered owner |
Precious Flowers Limited 7th Floor, Cathay House, North Sathorn Road, Silom, Bangrak Bangkok 10500 Thailand |
|
Disponent owner |
DS Norden A/S, Copenhagen Dampskibsselskabet Norden A/S 52, Strandvejen DK-2900 Hellerup Denmark |
|
Previous names & owners |
05/2008 - 04/2012 Good Pacific - Goodearth Marine Ltd Chennai Timil Nadu - India |
|
Latest data adjustment |
26 July 2024 |
