Westerschelde 10 July 2017 |
Name |

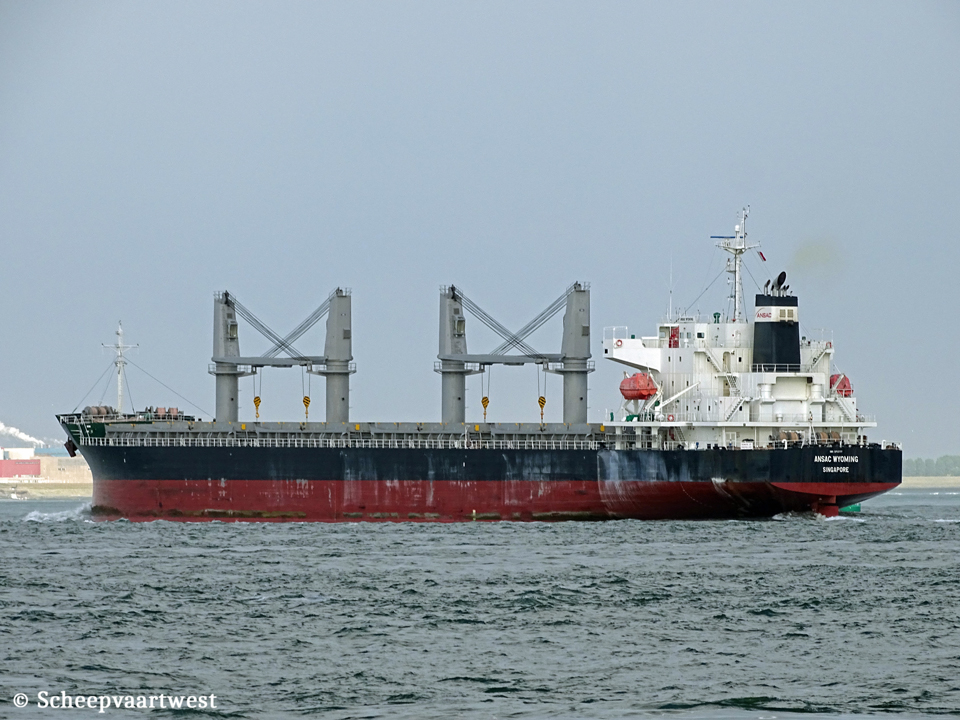

ANSAC WYOMING |
Type |
General dry cargo ship - Strengthened for heavy cargo loading |
IMO-number |
9713777 |
Call sign |
9V2947 |
Flag |
Republic of Singapore |
Port of registry |
Singapore City |
GRT |
21.265 t |
DWT |
33.117 t |
NRT |
11.278 t |
Length |
179,93 m overall |
Breadth |
28,40 m moulded |
Draught |
Summer: 10,02 m |
Moulded L x B x D |
173,50 x 28,40 x 14,25 m |
Registered L x B x D |
173,93 x 28,40 x 14,25 m |
Freeboard |
Summer: 4.294 mm |
Depth |
14,25 m moulded |
Speed |
Max: 15,7 knots Service:14,2 knots |
Built |
2015 |
Keel laid |
20/10/2014 |
Launch date |
29/11/2014 |
Date of completion |
31/03/2015 |
Builder |
Kanda Shipbuilding Co., Ltd. (Handa Zosensho K.K.) Kure Japan |
Yard number |
547 |
Hull material |
Steel |
Hull type |
Double hull construction applied to all cargo holds |
Main engine |
1x Mitsubishi/Kobe 6UEC45LSE - 2 stroke single acting 6 cylinder 450 x 1.930 mm combustion engine 5.500 kW / 7.478 hp at 108,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 435 mm |
Propellers |
1x Fixed pitch propeller |
Boilers |
1x Auxiliary vertical boiler - 0,78 MPa Evaporation: 2,12 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
Generators |
4x Generatorsets total 1.900 kVA |
Number of holds |
5 |
Cargo hold capacity |
Bale: 42.299 m³ Grain: 43.811 m³ |
Number of hatches |
5 |
Tank capacities |
Fuel oil: 1.675,76 m³ Fresh water: 306,66 m³ |
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
Manager |
Marufleet Management Pte. Ltd. |
Registered owner |
MMSL Pte. Ltd. 32-02, Frasers Tower 182, Cecil Street Singapore 069547 Republic of Singapore |
Latest data adjustment |
04 August 2024 |
