| Westerschelde 01 July 2017 |
|
Name |

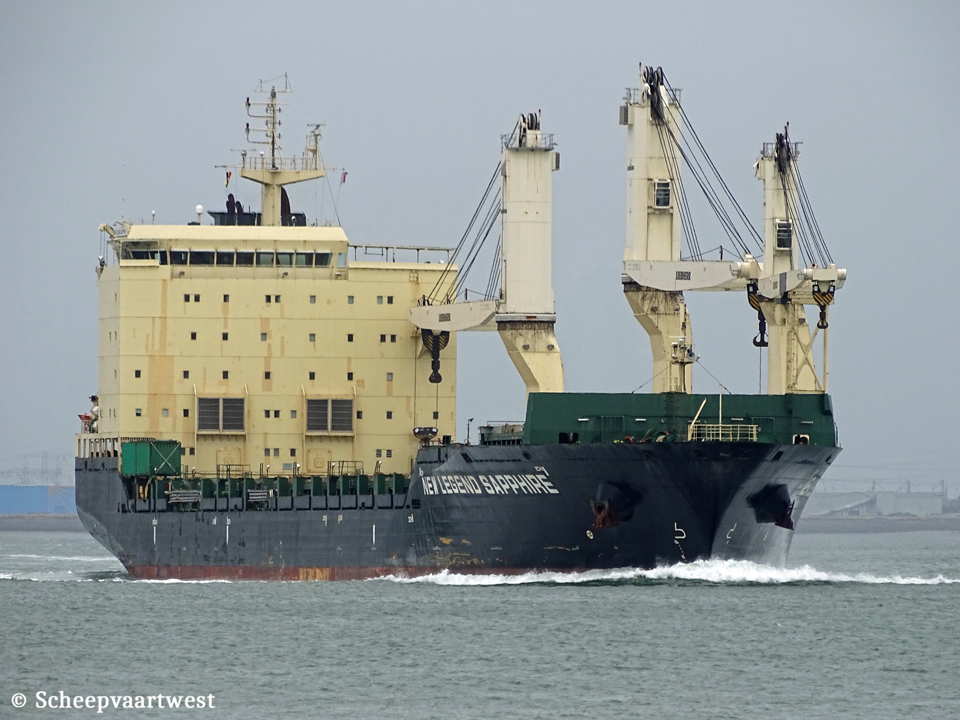

NEW LEGEND SAPPHIRE |
|
Previous names |
Build as: Rickmers Dubai |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Heavy load carrier |
|
IMO-number |
9526291 |
|
Call sign |
3FAR |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
19.534 t |
|
DWT |
24.290 t |
|
NT |
8.684 t |
|
Light ship |
11.396 t |
|
Number of 20ft containers |
1.439 |
|
Length |
175,35 m overall 165,78 m between perpendiculars |
|
Breadth |
26,46 m moulded 26,51 m extreme |
|
Draught |
Summer: 10,30 m |
|
Depth |
14,25 m |
|
Speed |
Max: 16,6 knots Service: 13,0 knots |
|
Built |
2014 |
|
Keel laid |
08/11/2011 |
|
Launch date |
03/09/2012 |
|
Date of completion |
28/06/2014 |
|
Builder |
Wuhu Xinlian Shipbuilding Co. Ltd. Wuhu China |
|
Yard number |
W0812 |
|
Hull material |
Steel |
|
Main engine |
Doosan/MAN-B&W 7S50ME-C8 - 2 stroke 7 cylinder 500 x 2.000 mm combustion engine 11.620 kW / 15.799 hp at 127,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired - Mission OC-H |
|
Generators |
3x Doosan/MAN 7L23/30H diesel generatprsets each 855 kW / 450 Volt 60 Hz |
|
Emergency generator |
1x 6068 HF 275 diesel generatprset 160 kW |
|
Bow thruster |
1x 800 kW |
|
Number of holds |
4 |
|
Cargo hold capacity |
Grain: 30.200 m³ |
|
Number of hatches |
4 Hatch 1: 19,20 x 16,70 m Hatch 2: 25,60 x 10,32 m Hatch 3: 38,40 x 10,32 m Hatch 4: 25,60 x 10,32 m |
|
Max permitted loads |
Tanktop: 23,0 t/m² Tween deck: 4,0 t/m² Hatch covers: 2,5 t/m² |
|
Tank capacities |
Fuel IFO 380 : 2.760,20 m³ Diesel Oil : 150,70 m³ Lubricating Oil : 195,20 cm³ Fresh Water : 286,80 cm³ Ballast Water : 10.497 m³ |
|
Anchor equipment |
Length: 599,10 m Diameter: 66 mm |
|
Cargo gear |
2x Deck cranes - SWL 350 t each 1x Deck crane - SWL 50 t each |
|
Registered owner |
Fujian Ocean Sh Co. Republic of Panama |
|
Renamed |
06/2020 Liberty Harvest Republic of Panama, Panama City - Call sign: 3FAR Owner: Xinlian Shipping Ltd., Hong Kong - China Manager: Ocean Fleet Shipmanagement Limited |
|
Latest data adjustment |
26 August 2024 |
