| Antwerpen 29 August 2024 |
|
Name |

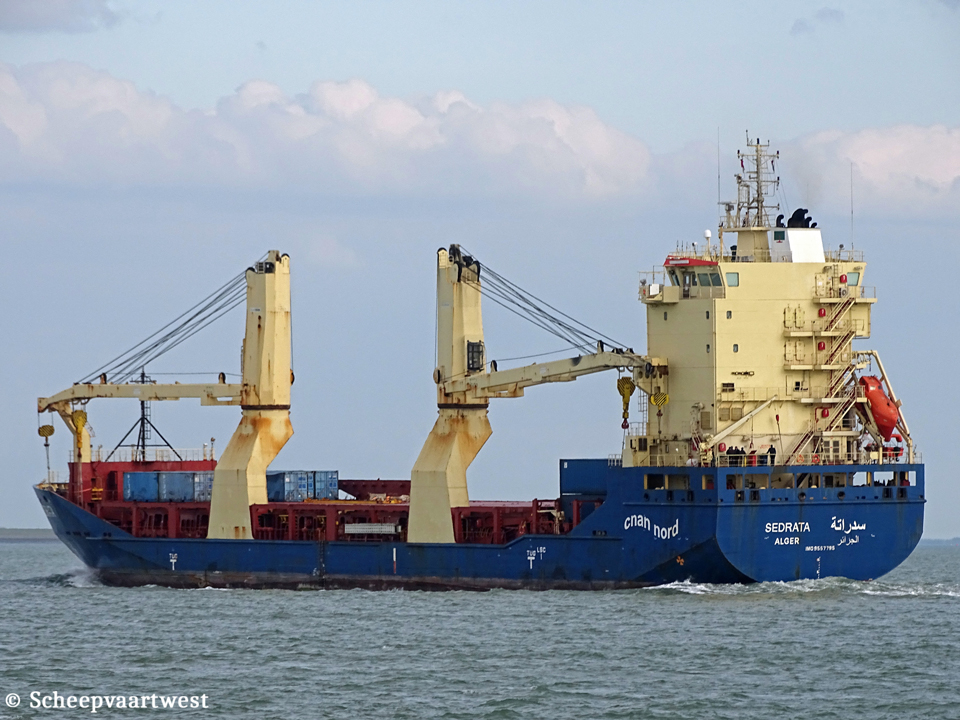

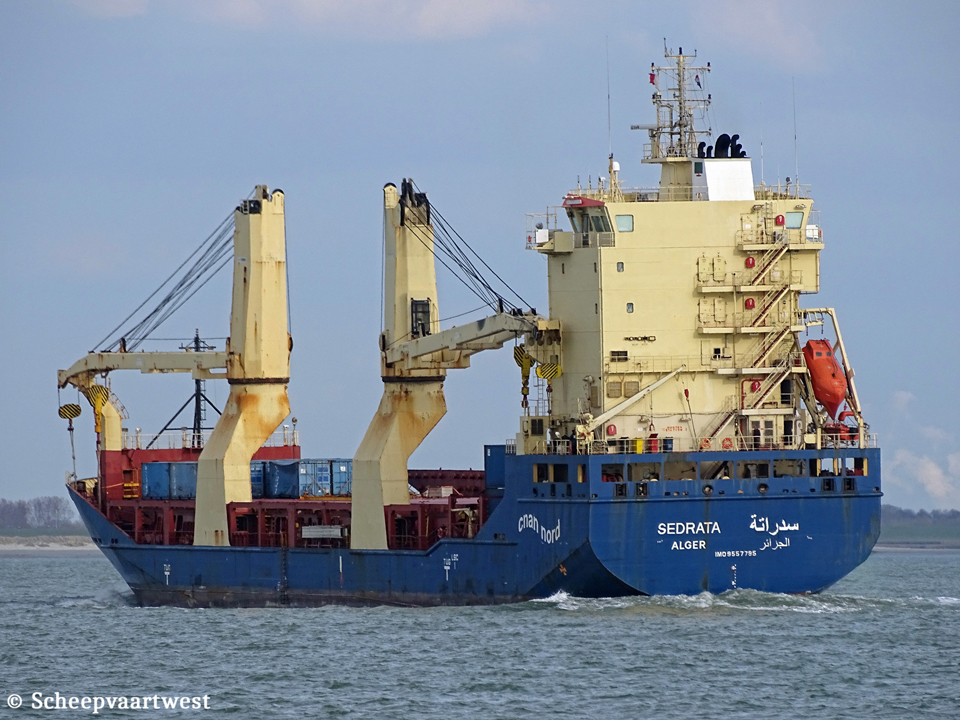

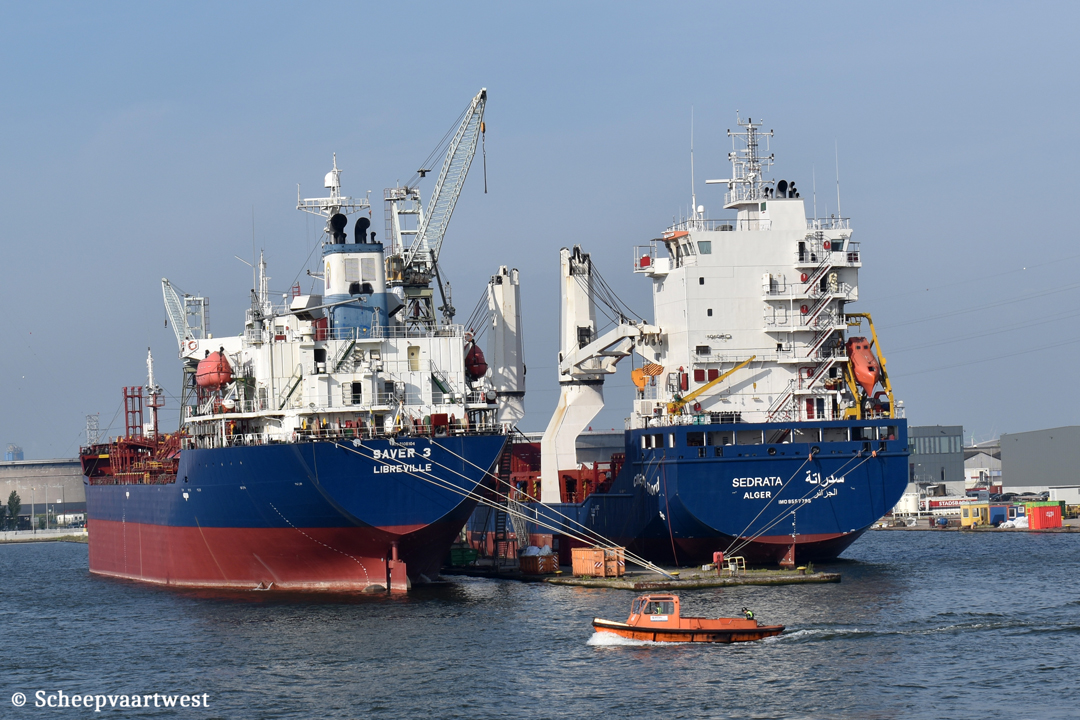

SEDRATA |
|
Previous names |
2011 - 10/2014 Clipper Galaxy |
|
Type |
Multi-purpose and heavy lift carrier |
|
IMO-number |
9557795 |
|
Call sign |
7THC |
|
Flag |
Algeria |
|
Port of registry |
Alger |
|
Previous flags |
2011- 2014 Bahamas, Nassau |
|
GT |
8.161 t Suez: 8.414,14 t |
|
DWT |
Summer: 9.065 t |
|
NT |
3.430 t Suez: 6.390,47 t Panama: 7.318 t |
|
Displacement |
Summer: 13.987 t |
|
Light ship |
5.301,2 t excluding tween deck |
|
Number of 20ft containers |
681 |
|
Reefer plug |
100 |
|
Length |
119,84 m overall 112,00 m between perpendiculars |
|
Breadth |
20,40 m moulded 20,70 m extreme |
|
Draught |
Summer: 8,45 m |
|
Keel to mast end |
44,80 m 41,30 m when mast is down |
|
Distance bow to bridge |
106,35 m |
|
Distance bridge to stern |
13,50 m |
|
Depth |
11,10 m moulded |
|
Speed |
16,0 knots loaded 17,0 knots ballast |
|
Build |
2011 |
|
Keel laid |
22/06/2010 |
|
Date of completion |
22/0//2011 |
|
Builder |
Zhoushan Shipyard (Yangfan Group) Zhoushan China |
|
Yard number |
H2143 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6S42MCT - 6 cylinder combustion engine 6.480 kW |
|
Propellers |
1 |
|
Generators |
3x Main diesel generatorsets each 792 kW at 720 rpm / 450 Volt 60 Hz |
|
Emergency generator |
1x Diesel generatorset 200 kW at 1.800 rpm / 450 Volt 60 Hz |
|
Bow thruster |
1x Pitch propeller 600 kW |
|
Number of holds |
1x Box Shaped 65,60 x15,30 x7,99 m Tween deck: 65,60 x 15,30 x 3,02 m |
|
Cargo hold capacity |
Gain: 13.131 m³ Bale: 11.025 m³ |
|
Number of hatches |
1 65,60 x 15,30 m |
|
Hatch cover type |
Mc Gregor |
|
Deck surface |
Area main deck: 800 m² Area tween deck: 900 m² Area weather deck: 1.003,7 m² Total: 2.703,7 m² |
|
Max permitted loads |
Tanktop: 20,0 t/m² Weather deck: 3,5 t/m² |
|
Tank capacities |
Ballast: 4.466,8 m³ Fresh water: 123,0 m³ HFO: 641,4 m³ Gas oil: 121,0 m³ Lub oil: 86,2 m³ |
|
Cargo gear |
2x MacGregor deck cranes - SWL 200 t each |
|
Manager |
CNAN Nord Spa Kouba (Alger) Algeria |
|
Registered owner |
CNAN Nord Spa 74, boulevard Mohamed V Kouba (Alger) Algeria |
|
Previous names & owners |
2011 - 10/2014 Clipper Galaxy - Clipper Project Shipping - Nassau - Bahamas |
|
Latest data adjustment |
09 September 2024 |
