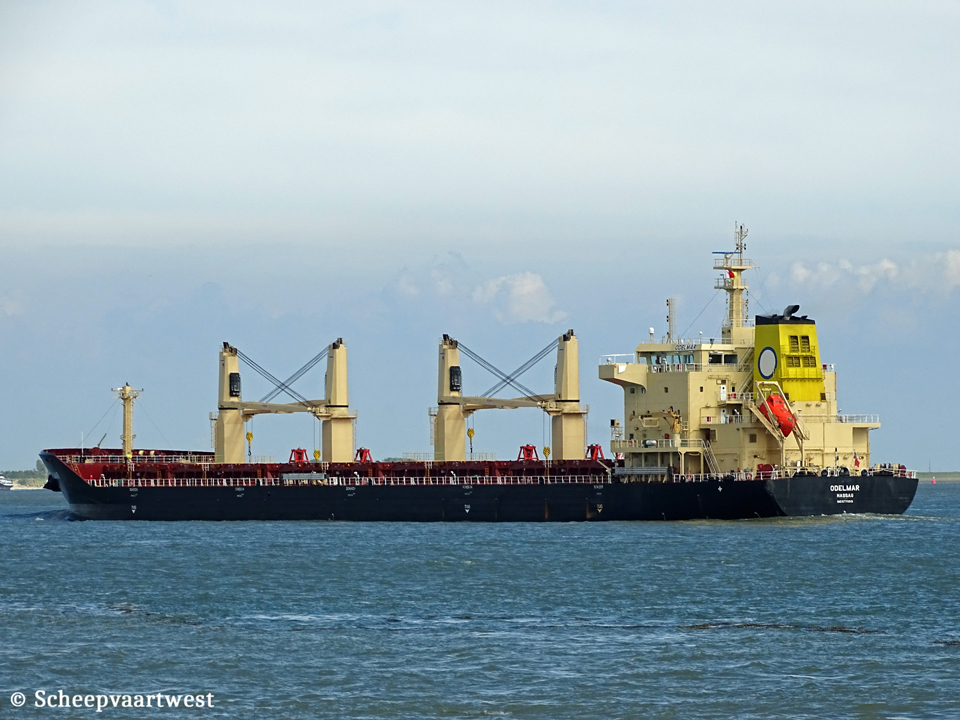

Odelmar IMO 9773313 02
Westerschelde 11 August 2017

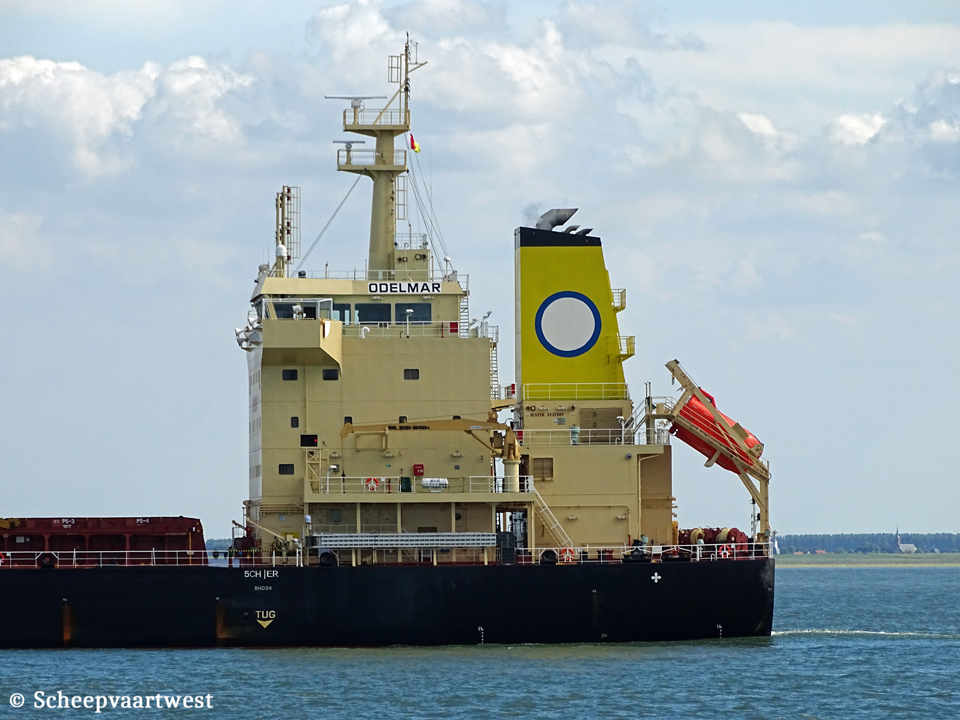

Odelmar IMO 9773313 01
Westerschelde 11/08/17


Name

ODELMAR

Type

Geared bulk carrier - Strengthened for heavy cargo loading

Handymax

IMO-number

9773313

Call sign

C6CZ5

Flag

Bahamas

Port of registry

Nassau

GRT

24.184 t

DWT

36.150 t

NRT

12.062 t

Length

180,00 m overall

Breadth

30,00 m moulded

Draught

Summer: 10,34 m

Moulded L x B x D

176,75 x 30,00 x 14,70 m

Registered L x B x D

176,67 x 30,00 x 14,70 m

Keel to mast end

46,20 m

Freeboard

Summer: 4.418 mm

Depth

14,70 m moulded

Speed

14,2 knots

Build

2017

Keel laid

30/09/2015

Launch date

03/10/2016

Date of completion

27/04/2017

Builder

Jiangdong Shipyard

Wuhu

China

Yard number

JD35000-8

Hull material

Steel

Hull type

Double hull cargo holds

Main engine

1x MAN-B&W 5S50ME-B9 - 2 stroke single acting 6 cylinder 500 x 2.214 mm combustion engine 6.050 kW / 8.226 hp at 99,0 rpm

Manufacturer: Jingjiang Dakai Heavy Machinery CO.,LTD.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 450 mm

Propellers

1x Fixed itch propeller

Boilers

1x Auxiliary vertical boiler - 0,90 MPa

Evaporation: 2,20 t/h

1x Auxiliary exhaust gas boiler - 0,70 MPa

Evaporation: 0,40 t/h

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

4x Generatorsets total 2.388 kVA

Number of holds

5

Hold 1: 27,50 x 26,00 m

hold 2: 26,20 x 26,60 m

Hold 3: 26,20 x 26,60 m

Hold 4: 26,20 x 26,60 m

Hold 5: 28,30 x 26,60 m

Cargo hold capacity

Bale: 45.498 m³

Grain: 46.732 m³

Number hatches

5

Hatch 1: 16,00 x 18,70 m

Hatch 2: 19,20 x 20,30 m

Hatch 3: 19,20 x 20,30 m

Hatch 4: 19,20 x 20,30 m

Hatch 5: 19,20 x 20,30 m

Tank capacities

Fuel oil: 1.946 m³

Fresh water: 250 m³

Cargo gear

4x Deck cranes - SWL 3,0 t each

Grabs: 4x 12,0 m³

ISM & commercial manager

Total Shipmanagement Services

9, Melitos Street, Nea Smyrni

171 21 Athens

Greece

Registered owner

Water Sprite Shipping SA

Care of Total Shipmanagement Services SA

9, Melitos Street, Nea Smyrni

171 21 Athens

Greece

Latest data adjustment

11 September 2024
