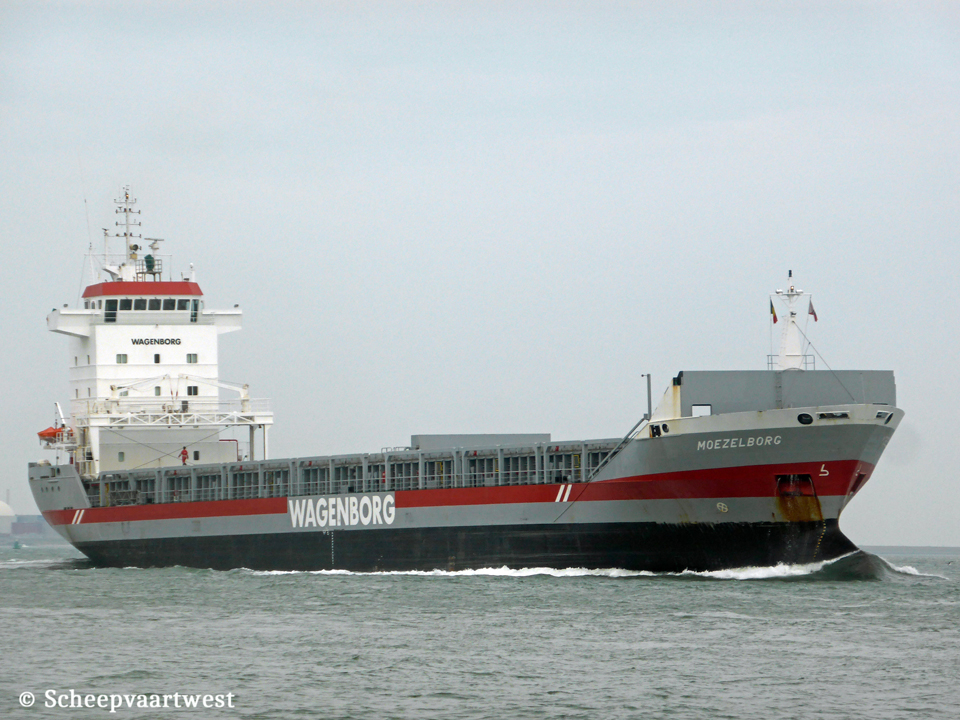

| Westerschelde 24 July 2015 |
|
Name |
MOEZELBORG |
|
Type |
Multi-purpose dry cargo ship - heavycargo - Container ship Single-decker - Open hatch fully box |
|
IMO-number |
9180839 |
|
Call sign |
PEAD |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
6.540 t |
|
DWT |
9.732 t |
|
DWCC |
Summer: 8.900 t |
|
NT |
3.686 t |
|
Number of 20ft containers |
604 |
|
Reefer capacity |
60 |
|
Length |
134,55 m overall 127,20 m between perpendiculars |
|
Breadth |
16,50 m overall |
|
Draught |
7,40 m |
|
Air draft |
33,50 m in ballast |
|
Freeboard |
2.413 mm |
|
Depth |
9,80 m moulded |
|
Speed |
16,0 knots |
|
Build |
1999 |
|
Keel laid |
26/06/1998 |
|
Launch date |
26/11/1998 |
|
Delivery date |
24/01/1999 |
|
Builder |
Bijlsma Shipyard B.V. Lemmer The Netherlands |
|
Yard number |
683 |
|
Hull material |
Steel |
|
Hull type |
Double skinned |
|
Watertight compartments |
8 |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 8L38 - 4 stroke single acting 8 cylinder 380 x 475 mm combustion engine 5.280 kW / 7.173 hp at 600 rpm Build: 1998 Builder: wärtsilä NSD, zwolle - The Netherlands |
|
Propellers |
1x Controllable pitch propeller - aft at 145,0 rpm |
|
Boilers |
1 CHR Wiesloch Marine 78,00 m² / 13,0 bar 1 CHO Wiesloch Marine 22,22 m² / 13,0 bar |
|
Generators |
2x Diesel generatorsets each 438 kVA - 350 kW - 514 hp |
|
Emergency generator |
1x Diesel generatorset 136 kVA - 109 kW - 163 hp |
|
Bow thruster |
1x 600 kW |
|
Number of holds |
2 Hold 1: 39,20 x 13,50 x 10,86 m Hold 2: 52,50 x 13,50 x 10,86 m |
|
Cargo hold capacity |
Grain/Bale: 13.059 m³ / 450.000 ft³ |
|
Hold ventilation |
12x Air changes per hour. Both holds fitted with dehumidifier system |
|
Number of hatches |
2 Hatch 1: 39,20 x 13,50 m Hatch 2: 52,50 x 13,50 m |
|
Tank capacities |
HFO: 584 m³ MGO: 80 m³ Water ballast: 4.294 m³ Fresh water: 66 m³ |
|
ISM & commercial manager |
Wagenborg Shipping B.V. Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Registered owner |
Wagenborg Rederij B.V. Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Previous owners |
01/1999- 05/2005 C.V. Scheepvaartonderneming Moezelborg, Delfzijl - The Netherlands |
|
Latest data adjustment |
27 September 2024 |
