| Westerschelde 23 May 2016 |
|
Name |

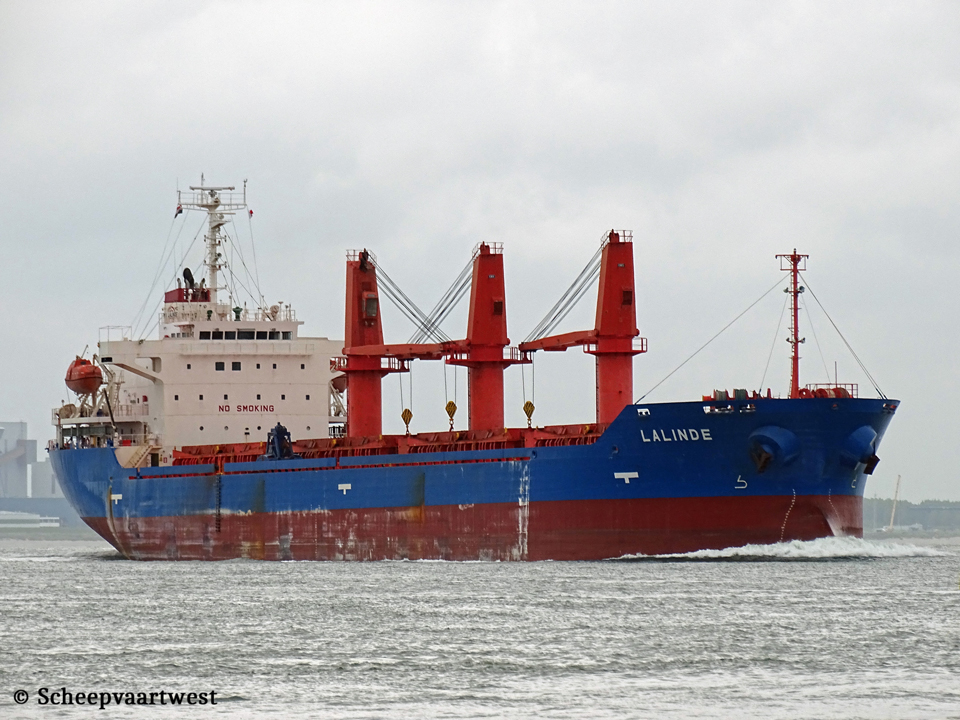

LALINDE |
|
Type |
Bulk carrier - Handysize |
|
IMO-number |
9354040 |
|
Call sign |
DYOJ |
|
Flag |
Philippines |
|
Port of registry |
Manila |
|
GT |
11.697 t Suez: 12.028 t |
|
DWT |
Summer: 18.804,29 t Winter: 18.250,09 t |
|
NT |
6.679 t Suez: 10.626 t Panama: 9.839 t |
|
Displacement |
Summer: 23.346,29 t Winter: 22.792,09 t |
|
Light ship |
4.542 t |
|
Length |
139,92 m overall 132,00 m between perpendiculars |
|
Breadth |
25,00 m moulded |
|
Draught |
Summer: 8,40 m Winter: 8,23 m |
|
Moulded L x B x D |
132,00 x 25,00 x 11,50 m |
|
Registered L x B x D |
139,48 x 25,00 x 11,50 m |
|
Keel to mast end |
37,91 m |
|
Air draft |
35,40 m |
|
Bridge to stern |
25,16 m |
|
Freeboard |
Summer: 3.092 mm Winter: 3.268 mm |
|
Depth |
11,50 m moulded |
|
Speed |
Max: 15,0 knots Service: 12,0 knots |
|
Build |
2006 |
|
Keel laid |
04/11/2005 |
|
Launch date |
16/02/2006 |
|
Date of completion |
15/05/2006 |
|
Builder |
Yamanishi Shipbuilding & Iron Works Ishinomaki Japan |
|
Yard number |
1041 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 7S35MC - 2 stroke single acting 7 cylinder 350 x 1.400 mm combustion engine 5.180 kW / 7.043 hp at 173,0 rpm Manufacturer: Makita Corporation - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 380 mm |
|
Propellers |
1x Fixed pitch propeller - 4 blades |
|
Boilers |
1x Auxiliary vertical boiler - 0,69 MPa Evaporation: 1,15 t/h Manufacturer: Miura Protec Co., Ltd. |
|
Generators |
3x Yanmar 6EY18ALW generatorsets total 1.235 kVA |
|
Number of holds |
4 Hold 1: 23,09 x fwd: 12,00 / aft: 21,98 x 12,08 m Hold 2: 23,08 x 22,00 x 12,08 m Hold 3: 23,75 x 21,94 x 12,08 m Hold 4: 23,00 m x fwd: 21,95 / aft: 11,80 x 12,08 m |
|
Cargo hold capacity |
Grain / bale: Hold 1: 5.556,57 m³ / 5.419,14 m³ Hold 2: 5.992,32 m³ / 5.833,00 m³ Hold 3: 6.155,11 m³ / 5.984,17 m³ Hold 4: 5.456,56 m³ / 5.326,70 m³ Total: 23.160,56 m³ / 22.563,01 m³ |
|
Number of hatches |
4 Hatch 1 -4: 17,50 x 15,00 m |
|
Hatch cover type |
MacGregor hydraulic folding type |
|
Max permitted loads |
Tanktop: 17,0 t/m² Hatch covers: 3,0 t/m² Deck strength: 4,1 t/m² |
|
Tank capacities |
Fuel oil: 1.123 m² Fresh water: 334 m³ |
|
Cargo gear |
3x Deck cranes - SWL 30,0 t each |
|
Manager |
Hellas Marine Services 26, Vouliagmenis Avenue Glyfada, 116 75 Athens Greece |
|
Owner |
Hellas Marine Services 26, Vouliagmenis Avenue Glyfada, 116 75 Athens Greece |
|
Renamed |
06/2021 Lady Laguna Barbados, Bridgetown - Call sign: 8PBE3 Registered owner: Laguna Marine Ltd., Piraeus - Greece Manager: Florence Shipping & Marine Services, Piraeus - Greece |
|
Latest data adjustment |
09 October 2024 |
