| Westerschelde 03 February 2017 |
|
Name |

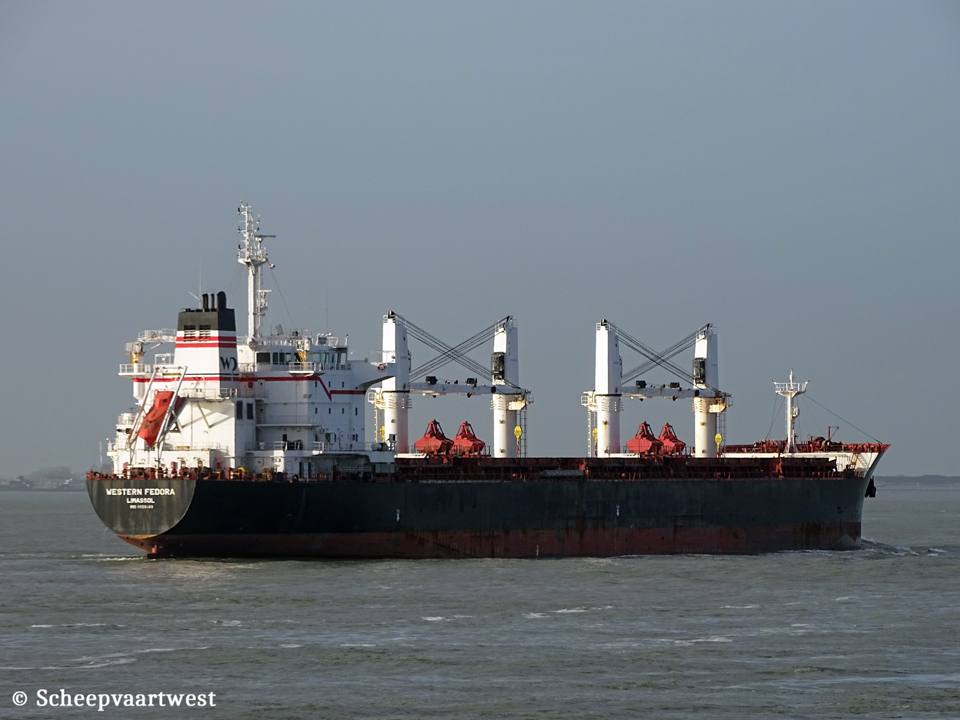

WESTERN FEDORA |
|
Type |
Bulk carrier |
|
IMO-number |
9609689 |
|
Call sign |
5BPX3 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
22.668 t |
|
DWT |
Summer: 37.400 t Winter: 36.300 t |
|
DWCC |
Summer: 36.600 t Winter: 35.000 t |
|
NT |
11.856 t |
|
Length |
186,96 m overall 178,00 m between perpendiculars |
|
Breadth |
28,63 m extreme |
|
Draught |
Summer: 10,40 m |
|
Freeboard |
5.216 mm |
|
Depth |
15,60 m moulded |
|
Speed |
Max: 14,3 knots |
|
Build |
2012 |
|
Date of completion |
03/07/2012 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. South Korea |
|
Yard number |
6108 |
|
Hull material |
Steel |
|
Hull type |
Single hull Double bottom |
|
Watertight compartments |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN-B&W 6S46MC-C - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine 7.700 kW / 10.462 hp at 12,0 rpm Build: 30/01/2012 Manufacturer: Hyundai Heavy Ind. Co., Ltd. - Engine & Mach. Div., Ulsan - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 120,0 rpm |
|
Boilers |
1x CHM SAACKE 238,86 m² / 8,8 bar |
|
Generators |
3x Main diesel generatorsets each 675 kVA - 540 kW - 781 hp |
|
Emergency generator |
1x Diesel generatorset 150 kVA - 120 kW - 188 hp |
|
Number of holds |
5 Hold 1: 28,00 m x 20,31 - 4,84 m Hold 2: 26,07 x 20,31 m Hold 3: 23,70 x 20,31 m Hold 4: 26,07 x 20,31 m Hold 5: 28,10 x 20,31 - 6,43 m |
|
Cargo hold capacity |
Hold 1: 9.000 m³ / 306.000 ft³ Hold 2: 10.400³ / 370.000 ft³ Hold 3: 10.080 m³ / 356.000 ft³ Hold 4: 10.400 m³ / 370.000 ft³ Hold 5: 9.700 m³ / 340.000 ft³ Total grain: 49.480 m³ / 1.742.000 ft³ Total bale: 47.940 m³ / 1.690.000 ft³ |
|
Hold ventilation |
Natural |
|
Number of hatches |
5 Hatch 1: 14,22 x 15,90 m Hatch 2: 18,96 x 15,90 m Hatch 3: 18,96 x 15,90 m Hatch 4: 18,96 x 15,90 m Hatch 5: 18,96 x 15,90 |
|
Type hatch covers |
McGregor folding type |
|
Tank capacities |
FO: 1.486,9 m³ MDO: 243,7 m³ Ballast: 12.412,9 m³ Freshwater: 222,0 m³ |
|
Lifting equipment |
2x Provision crane - SWL 3,0 t |
|
Cargo gear |
4x Cranes - SWL 30,0 t each max outreach 25,00 m 4x Grabs each 12,0 m³ / 425 ft³ |
|
Commercial manager |
MTL Maritime Transport August-Hirsch-Strasse 10 47119 Duisburg Germany |
|
ISM Manager |
Intership Navigation Co. Hartmann House 32, Miltonos Street 3050 Limassol Cyprus |
|
Registered owner |
Heket Shipping Limited Care of MTL Maritime Transport & Logistik GmbH & Co KG, August-Hirsch-Strasse 10 47119 Duisburg Germany |
|
Latest data adjustment |
18 October 2024 |
