| Westerschelde 12 March 2017 |
|
Name |

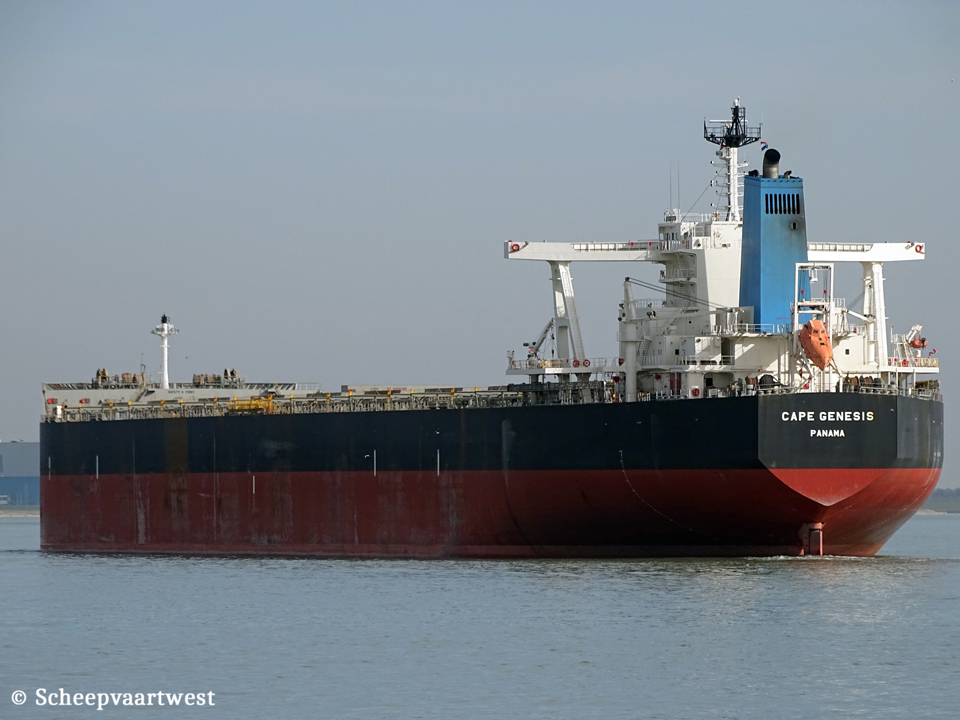

CAPE GENESIS |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9479307 |
|
Call sign |
3FBK8 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
93.230 t |
|
DWT |
182.097 t |
|
NRT |
58.480 t |
|
Light displacement |
25.542 t |
|
Length |
292,00 m overall |
|
Breadth |
45,00 m moulded |
|
Draught |
Summer: 18,18 m |
|
Moulded L x B x D |
287,90 x 45,00 x 24,50 m |
|
Registered L x B x D |
287,92 x 45,00 x 24,50 m |
|
Keel to mast end |
57,44 m |
|
Freeboard |
Summer: 6.385 mm |
|
Depth |
24,50 m moulded |
|
Speed |
Max: 16,9 knots Service: 14,5 knots |
|
Build |
2012 |
|
Keel laid |
24/06/2010 |
|
Launch date |
11/07/2012 |
|
Date of completion |
25/10/2012 |
|
Builder |
Japan Marine United Corporation Tsu Shipyard Japan Ex: Universal Shipbuilding Corporation |
|
Yard number |
152 |
|
Hull material |
Steel |
|
Hull type |
Double hull construction applied to all cargo holds |
|
Main engine |
1x Hitachi/MAN-B&W 7S65ME-C - 2 stroke single acting 7 cylinder 650 x 2.730 mm combustion engine 16.580 kW / 22.542 hp at 90,0 rpm Manufacturer: Hitachi Zosen Corporation Ariake Works |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 650 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical oiler - 0,70 MPa Evaporation: 2,99 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
4x Generatorsets total 2.275 kVA |
|
Number of holds |
9 |
|
Cargo hold capacity |
Grain: 193.396 m³ |
|
Tank capacities |
Fuel oil: 4.834 m³ Fresh water: 576 m³ Water ballast: 64.427 m³ |
|
ISM & commercial manager |
Tokei Kaiun Ltd. 219-1, Nakabori 4-chome Imabari Ehime Japan |
|
Registered owner |
Leo Ocean, S.A. & Tokei Kaiun Ltd. Care of Tokei Kaiun Ltd , 2263-8, Namikata, Namikata-cho, Imabari-shi, Ehime-ken Japan |
|
Latest data adjustment |
20 October 2024 |
