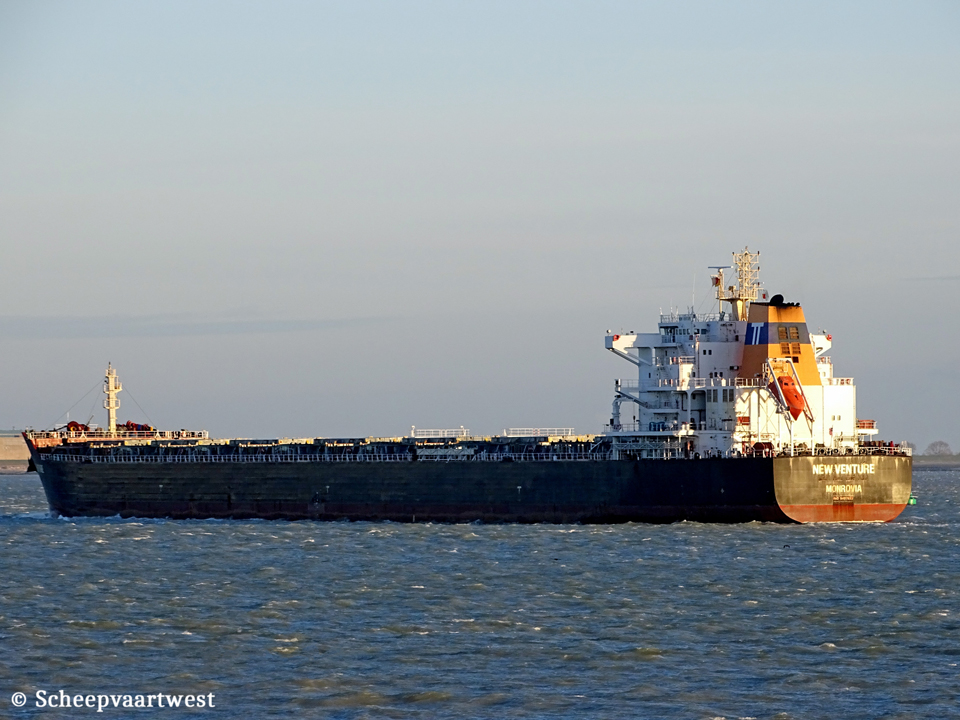

| Westerschelde 07 January 2018 |
|
Name |
NEW VENTURE |
|
Previous names |
Lan Hai Jin Xiu- Until 10/2014 |
|
Type |
Gearless bulk carrier - Panamax |
|
IMO-number |
9497622 |
|
Call sign |
D5HI5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
43.365 t |
|
DWT |
79.415 t |
|
NT |
27.334 t |
|
Light weight |
13.750 t |
|
Length |
229,00 m overall 222,00 m between perpendiculars |
|
Breadth |
32,26 m |
|
Draught |
Summer: 14,62 m |
|
Forecastle |
15,42 m |
|
Deckhouse |
20,50 m |
|
Freeboard |
5.654 mm |
|
Depth |
20,25 m moulded |
|
Speed |
14,0 knots |
|
Build |
2014 |
|
Keel laid |
20/10/2011 |
|
Date of completion |
24/09/2014 |
|
Builder |
Wujiazui Shipbuilding Company Limited Nanjing China |
|
Yard number |
YC015 |
|
Hull material |
Steel |
|
Bulkheads |
8 |
|
Continuous decks |
1x Upper deck |
|
Main engine |
1x YMD/MAN-B&W 7S50MC-C - 2 stroke 7 cylinder combustion engine 11.060 kW / 15.041 bhp at 127,0 rpm Build: 15/04/2012 Builder: Yichang Marine Diesel Engine Co.,Ltd |
|
Propellers |
1 |
|
Generators |
3x Main diesel generatorset each 720 kW / 450 Volt |
|
Number of holds |
7 |
|
Cargo hold capacity |
Grain: Hold 1: 10.659,42 m³ Hold 2: 15.750,10 m³ Hold 3: 15.404,26 m³ Hold 4: 13.759,95 m³ Hold 5: 14.831,92 m³ Hold 6: 15.759,16 m³ Hold 7: 11.709,37 m³ Total: Grain: 97.874,18 m³ Bale: 83.200 m³ |
|
Number of hatches |
7 5x 15,66 x 15,00 m 1x 13,05 x 15,00 m 1x 13,05 x 13,20 m |
|
Tank capacities |
Ballast: 33.734 m³ |
|
Lifting equipment |
1x Engine room overhead crane - SWL 4,0 t 1x Provision crane - SWL 4,0 t |
|
Manager |
New Shipping Limited Piraeus Greece |
|
Registered owner |
Ascott Maritime Co. Ltd. |
|
Latest data adjustment |
06 November 2024 |
