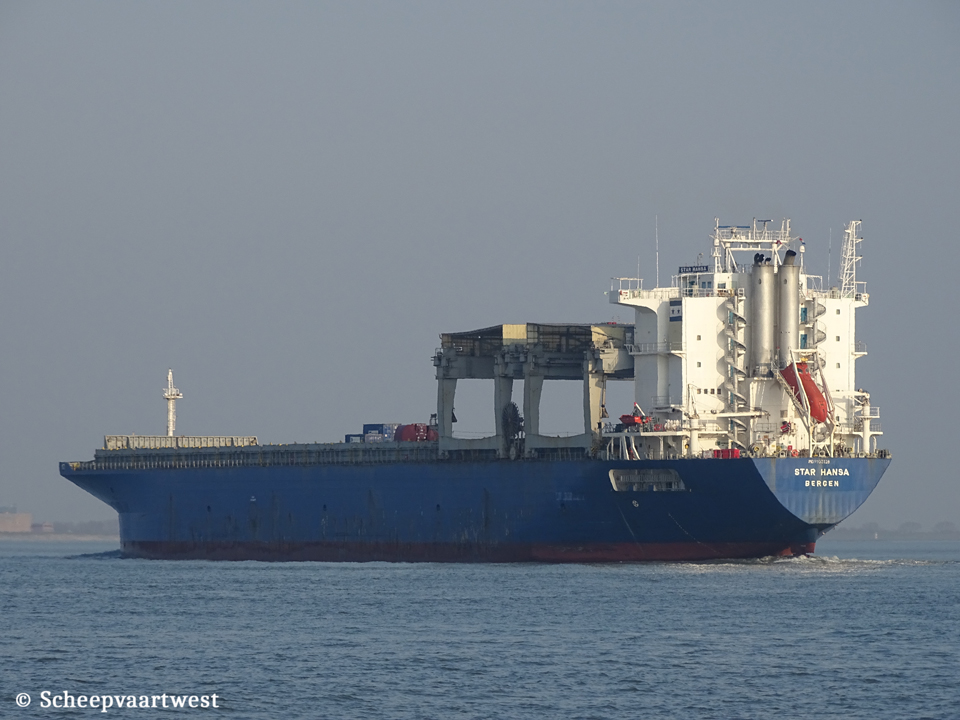

| Westerschelde 16 March 2017 |
|
Name |
STAR HANSA |
|
Type |
Gentry craned open hatch bulk carrier / Semi Containership |
|
IMO-number |
9103128 |
|
Call sign |
LAXP4 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GT |
32.749 |
|
DWT |
46.428 t |
|
NT |
13.647 |
|
Number of 20ft containers |
In hold: 1.350 on deck: 600 Total: 1.950 |
|
Length |
198,00 m overall 187,03 m between perpendiculars |
|
Breadth |
31,00 m |
|
Draught |
Summer: 12,32 m |
|
Keel to mast end |
45,00 m |
|
Freeboard |
3.316 mm |
|
Depth |
19,00 m to main deck |
|
Speed |
Max: 16,0 knots |
|
Build |
1995 |
|
Keel laid |
25/05/1995 |
|
Launch date |
13/06/1995 |
|
Date of completion |
21/12/1995 |
|
Builder |
Mitsui Engineering & Shipbuilding Co. Ltd., Tamano Works Japan |
|
Yard number |
1418 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Bulkheads |
Transverse: 14 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Mitsui 6S60MC - 2 stroke 6 cylinder 600 x 2.292 mm combustion engine 10.520 kW / 14.293 hp at 96,0 rpm Builder: Mitsui & Co., Ltd., Tamano - Japan |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x CHO 22,00 m² / 5,88 bar 1x CHR 168,00 m² / 5,90 bar |
|
Generators |
1x Bergen Diesel KRG-5 main diesel generatorset 900 kVA - 720 kW - 1.053 hp / 450 volt at 720 rpm 2x Bergen Diesel KRG-8 main diesel generatorsets 1.625 kVA - 1.300 kW - 1.895 hp / 450 volt at 720 rpm |
|
Emergency generator |
1x Yanmar 6CHL-TH diesel generatorset 100 kVA - 80 kW - 95 hp |
|
Compressed air receivers |
2x SPERRE HV2/200 - 145 m³/h capacity at 30,0 bar 1x SPERRE HV2/300 - 439 m³/h capacity at 8,0 bar One diesel generator cold start air compressor SAMVA S3A - 5 m³/h at 30,0 bar |
|
Bow thruster |
One bow- and one stern thruster 1.100 kW each thruster |
|
Number of holds |
11x Box-shaped cargo holds |
|
Cargo hold capacity |
Hold 1: 4.048,8 m³ / 142.983 ft³ Hold 2: 5.510,5 m³ / 194.603 ft³ Hold 3: 6.206,4 m³ / 219.179 ft³ Hold 4: 6.206,4 m³ / 219.179 ft³ Hold 5: 6.206,4 m³ / 219.179 ft³ Hold 6: 6.206,4 m³ / 219.179 ft³ Hold 7: 6.206,4 m³ / 219.179 ft³ Hold 8: 6.206,4 m³ / 219.179 ft³ Hold 9: 6.206,4 m³ / 219.179 ft³ Hold 10: 5.722,2 m³ / 202.079 ft³ Hold 11: 2.764,7 m³ / 97.635 ft³ Total: 61.491 m³ / 2.171.553 ft³ |
|
Number of hatches |
11 |
|
Fresh water generator |
One fresh water generator NIREX Type JWP-26-C100 Capacity: 30 t/day |
|
Purifiers and separators |
|
|
Max permitted loads |
Tanktop: 28 t/m² |
|
Tank capacities |
Fuel: 2.223,1 m³ Water ballast: 15.547 m³ |
|
Cargo gear |
2 x Mitsui Paceco make - SWL 40 t Hoisting speed: 35,00 m/min Lowering speed: 43,00 m/min Trolley speed: 76,00 m/min Gantry speed 30,00 m/min Turn table rotation: 1 rpm Outreach, from shipside: 8,00 m Clearance between legs: 13,95 m Auxiliary hoist capacity 6,0 t |
|
Crew size |
29 |
|
ISM manager |
Grieg Star AS C Sundtsgate 17/19 5004 Bergen Norway |
|
Registered owner |
Grieg Shipping II AS C Sundtsgate 17/19 5004 Bergen Norway |
|
Latest data adjustment |
01 January 2025 |
