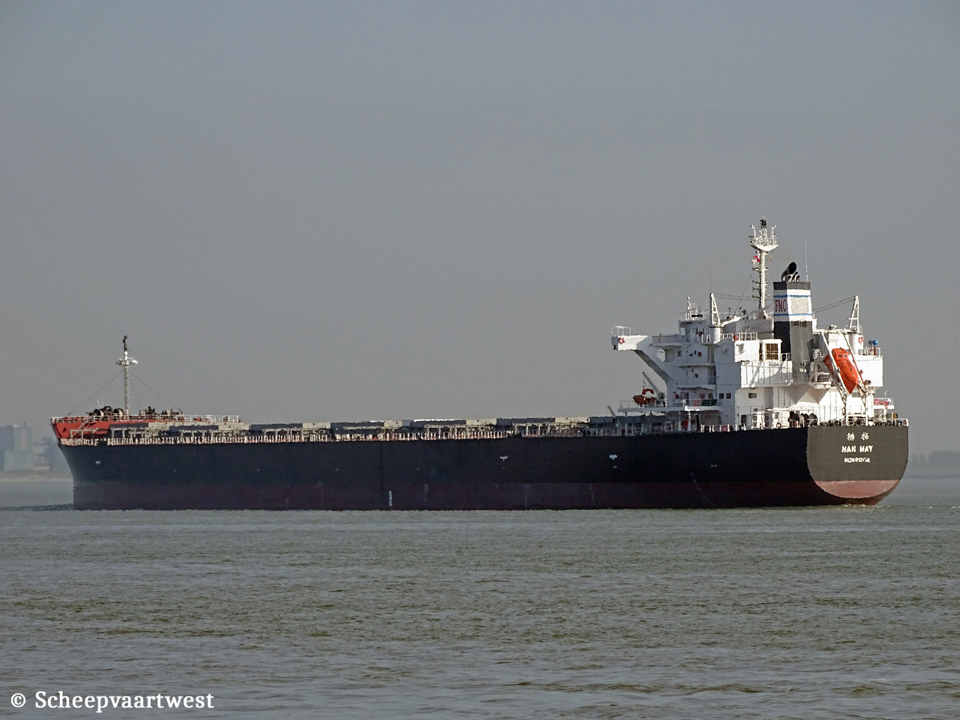

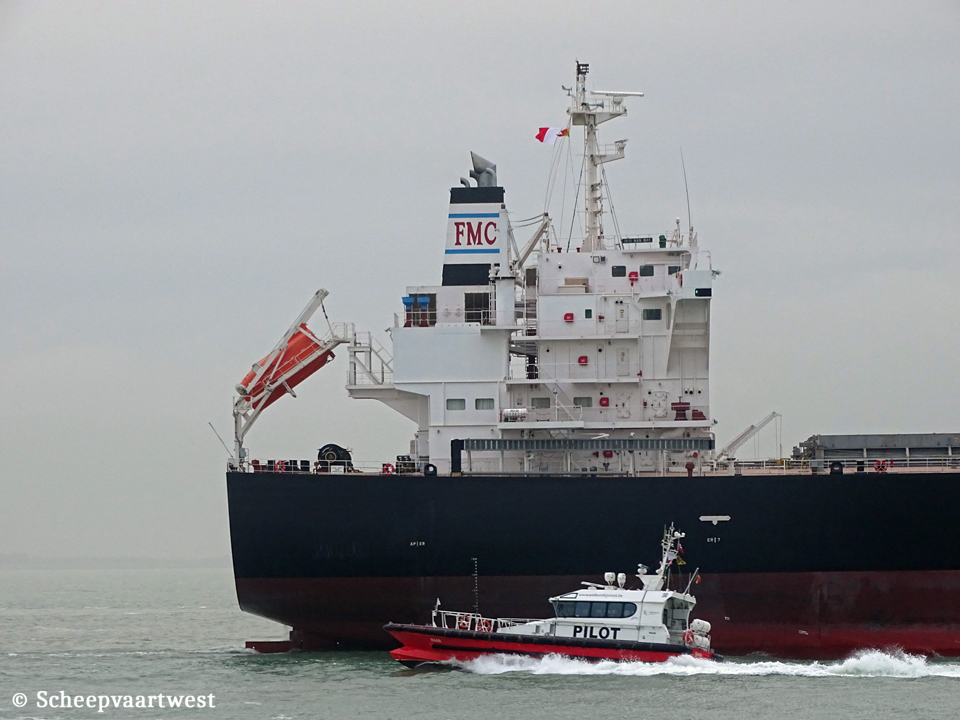

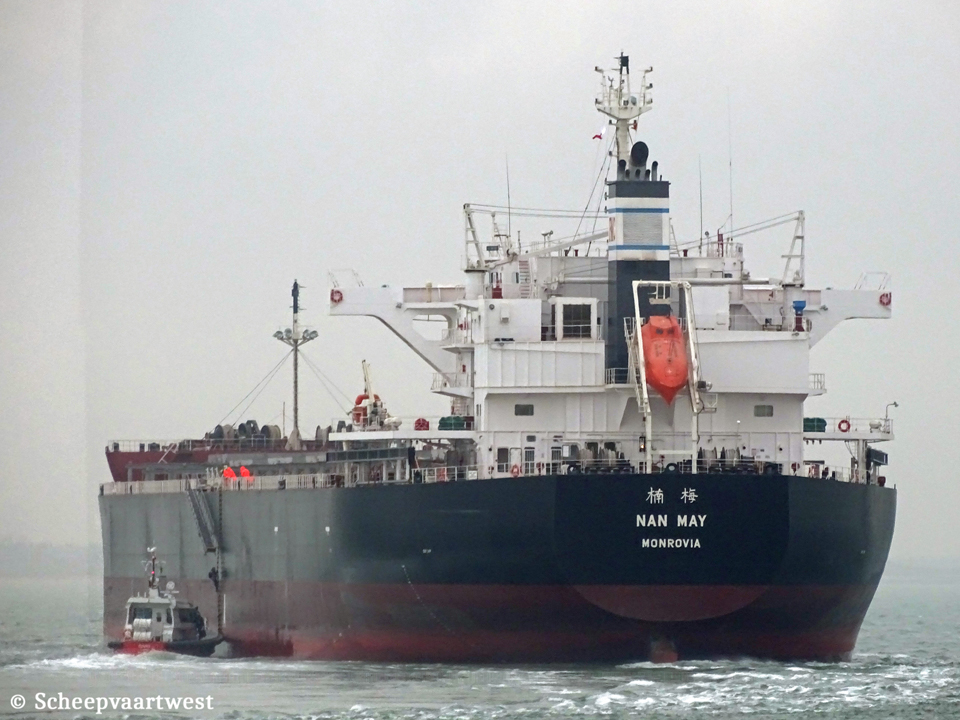

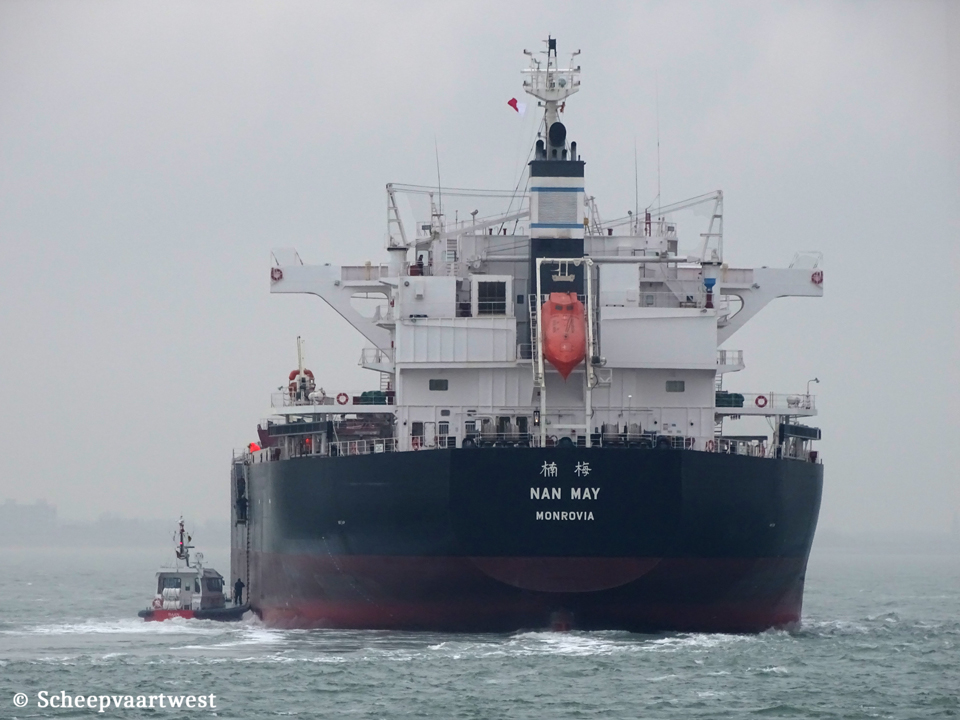

| Westerschelde 21 February 2017 |
 |
 |
 |
||
| Westerschelde 21/02/17 | Westerschelde 21/02/17 | Westerschelde 21/02/17 | ||
|
Name |
NAN MAY |
|
Type |
Bulk carrier |
|
IMO-number |
9774496 |
|
Call sign |
D5KO8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
46.990 |
|
DWT |
85.005 t |
|
NT |
27.488 |
|
Length |
228,41 m overall 223,00 m between perpendiculars |
|
Breadth |
36,50 m |
|
Draught |
13,94 m |
|
Freeboard |
5.969 mm |
|
Depth |
19,89 m |
|
Speed |
14,8 knots |
|
Build |
2016 |
|
Date of completion |
07/10/2016 |
|
Builder |
Oshima Shipbuilding Co., Ltd. Saikai Japan |
|
Yard number |
108000 |
|
Hull material |
Steel |
|
Watertight compartments |
45 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Mitsui - 2 stroke 6 cylinder 600 x 2.400 mm combustion engine 9.660 kW / 13.125 hp at 89 rpm Build: 17/06/2016 Builder: Mitsui Engineering & Shipbuilding Co., Ltd., Tamano - Japan |
|
Propellers |
1x Screw Propeller Solid - aft at 89 rpm |
|
Boilers |
1x CHM Osaka Boiler 228,00 m² / 7,00 bar |
|
Generators |
3x Main diesel generatorsets each 775 kVA - 620 kW - 910 hp |
|
Emergency generator |
1x Diesel generatorset 120 kVA - 96 kW - 175 hp |
|
Number of holds |
7 |
|
Cargo hold capacity |
103.117 m³ |
|
Number of hatches |
7 Hatch 1: 13,65 x 15,40 m Hatches 2,3,4,5,6; 16,38 x 16,90 m |
|
Tank capacities |
Fuel: 3.281,6 m³ |
|
Manager |
Foremost Group New York USA |
|
Registered owner |
Nan May Maritime LLC |
|
Latest data adjustment |
06 January 2025 |
