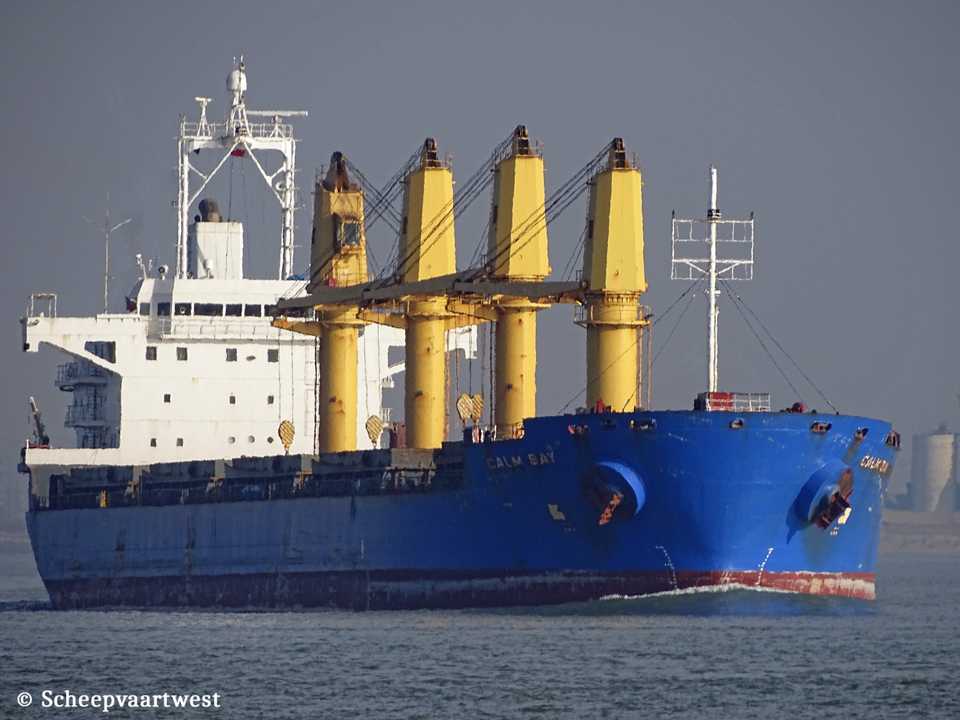

| Westerschelde 15 February 2017 |
|
Name |
CALM BAY |
|
Previous names |
Build as: Maria Oldendorff 2006 - 03/2014 Calm Way |
|
Type |
General cargo carrier - Strengthened for the carriage of heavy cargoes |
|
IMO-number |
9317705 |
|
Call sign |
2HFU7 |
|
Flag |
Isle of Man - United Kingdom |
|
Port of registry |
Douglas |
|
Previous flags |
2006 - 2014 Liberia, Monrovia |
|
GT |
22.698 Suez: 23.077,13 |
|
DWT |
Summer: 37.534 t Winter: 36.504 t |
|
NT |
12.674 Panama: 18.913,82 Suez: 20.858,67 |
|
Length |
177,84 m overall 169,80 m between perpendiculars |
|
Breadth |
28,60 m moulded |
|
Draught |
Summer: 10,87 m Winter: 10,64 m |
|
Moulded L x B x D |
169,80 x 28,60 x 15,00 m |
|
Registered L x B x D |
170,58 x 28,60 x 15,00 m |
|
Freeboard |
4.188 mm |
|
Depth |
15,00 m moulded |
|
Build |
2006 |
|
Keel laid |
10/12/2004 |
|
Launch date |
01/04/2006 |
|
Date of completion |
31/05/2006 |
|
Builder |
Saiki Heavy Industries Co. Ltd. Saiki Japan |
|
Yard number |
1155 |
|
Hull material |
Ordinary strength steel High strength steel |
|
Bulkheads |
Water tight: 67 Oil tight: 17 Non tight: 4 |
|
Main engine |
1x Akasaka/Mistubishi 6UEC52LA - 2 stroke single acting 6 cylinder 520 x 1.600 mm combustion engine 7.080 kW at 133,0 rpm Manufacturer: Akasaka Diesel Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 450 mm |
|
Propellers |
1 Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Vertical Composite Boiler - 6,9 bar Evaporation: 2,13 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
2x Main diesel generatorsets each 400 kW Manufacturer: Nishishiba Electric Co., Ltd. |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 45.706,85 m³ Grain: 46.030,12 m³ |
|
Number of hatches |
5 |
|
Number of tanks |
Ballast: 14 Lubricating Oil: 11 Fuel Oil: 6 Fresh Water: 6 Diesel Oil: 6 Sludge: 4 Chain: 2 Waste Water: 2 Sea Water: 1 |
|
Tank capacities |
Diesel oil: 316,70 m³ Freshwater: 232,81 m³ Fuel oil: 1.418,23 m² Lube oil: 93,70 m³ Tank ballast: 14.299,32 m³ |
|
Lifting equipment |
1x Provision crane - SWL 1,5 t Manufacture: Mansei Industry Co., Ltd. |
|
Cargo gear |
4x Deck cranes - SWL 36,0 t each Manufacture: Mitsubishi Heavy Ind., Ltd., Shimonoseki S.Y. & Machy. Works |
|
Registered owner |
Pioneer Marine Advisers Singapore City Republic of Singapore |
|
Renamed |
01/ 2020 Siroco Republic of Panama, Panama City - Call sign: 3EVE6 Registered owner: Apsida Investment Co. Manager: Zodiac Shiptrade S.A. |
|
Latest data adjustment |
30 January 2025 |
