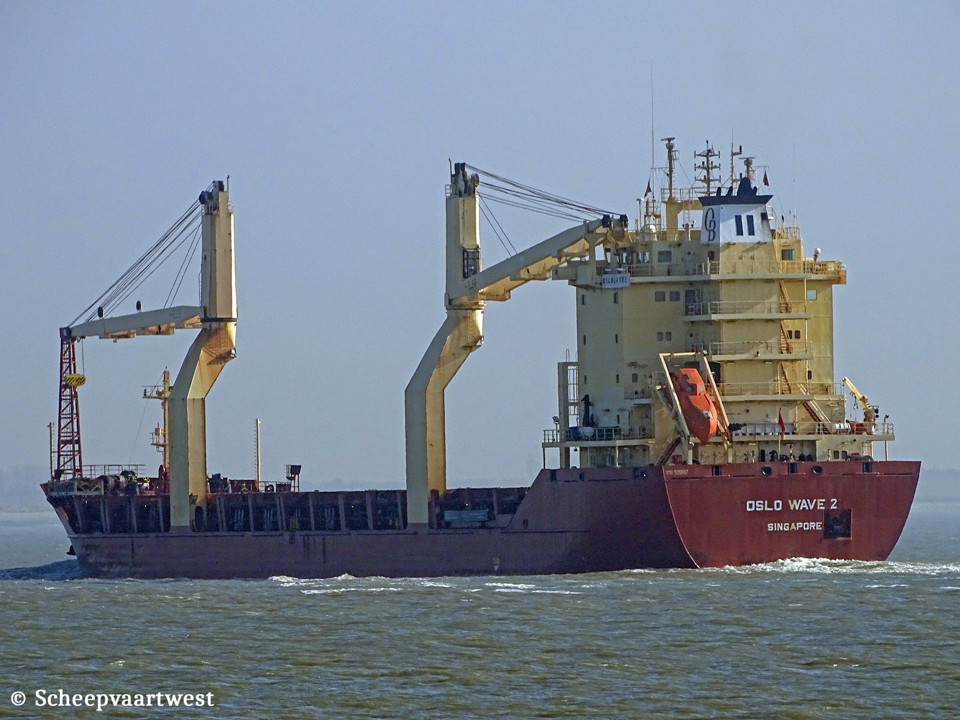

| Westerschelde 16 February 2017 |
|
Name |
OSLO WAVE 2 |
|
Previous names |
2001 - 09/2001 Atlantic Pride 09/2001 - 08/2002 Seaboard Rover 08/2002 - 03/2003 Atlantic Pride 03/2003 - 03/2003 Seaboard Rover 03/2003 - 05/2005 Atlantic Pride 05/2005 - 07/2007 Seaboard Chili II 07/2007 - 09/2010 Federal Pride 09/2010 - 04/2013 Hal Pride 04/2013 - 06/2019 Atlantic Progress |
|
Type |
General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Hull box-shaped multi-purpose tweendeck / Container carrier |
|
IMO-number |
9190107 |
|
Call sign |
LAKK8 |
|
Flag |
Norway |
|
Port of registry |
Oslo |
|
Previous flags |
01/2000 - 08/2003 Cyprus, Limassol 08/2003 - 05/2005 Gibraltar 05/2005 - 06/2016 Cyprus, Limassol - Call sign: P3QZ8 06/2016 - 04/2020 Republic of Singapore, Singapore City - Call sign: 9V5140 |
|
GT |
12.993 |
|
DWT |
Summer: 17.451 t |
|
NT |
5.894 |
|
Number of 20ft containers |
On deck: 712 In hold: 408 Total: 1.118 |
|
Number of 40ft containers |
On deck: 311 + 37 TEU In hold: 193 + 22 TEU Total: 504 + 59 TEU |
|
Reefer capacity |
30 |
|
Length |
143,15 m overall 133,00 m between perpendiculars |
|
Breadth |
22,80 m extreme |
|
Draught |
Summer: 9,71 m |
|
Depth |
13,30 m to main deck |
|
Speed |
15,5 knots |
|
Build |
2000 |
|
Keel laid |
03/05/1999 |
|
Launch date |
21/10/1999 |
|
Date of completion |
07/04/2000 |
|
Builder |
Jingjiang Shipyard China |
|
Yard number |
JS98-012 |
|
Hull material |
Steel |
|
Hull type |
Double hul |
|
Bulkheads |
3 |
|
Main engine |
1x MAN-B&W/Hudong 7L42MC - 2 stroke 7 cylinder combustion engine 6.965 kW / 9.469 hp at 176 rpm |
|
Propellers |
1x Fixed pitch propeller 4 blades |
|
Boilers |
1x Auxiliary boiler, composite - OVS2-120/60-24 |
|
Generators |
3x MAN/Holeby 5L16/24 main diesel engines each 500 kW at 1.200 rpm connected with generators 475 kW - 450 Volt 60 Hz |
|
Emergency generator |
1x Volvo Penta Tamd 71B diesel generatorset |
|
Bow thruster |
1x 500 kW |
|
Number of hold |
3 Hold 1: 22,60 x 13,25 x 11,80 m Hold 2: 42,36 x 18,60 x 13,90 m Hold 3: 28,20 x 18,60 x 13,90 m |
|
Cargo hold capacity |
Grain & bale Hold 1: 126.225 ft³ / 3.575 m³ Hold 2: 384.000 ft³ / 10.875 m³ Hold 3: 256.000 ft³ / 7.250 m³ Total: 766.255 ft³ / 21.700 m³ |
|
Hold ventilation |
Hold 1: 7 air changes per hour Holds 2 & 3: 6 air changes per hour |
|
Timber stanchions |
6,00 m high |
|
Number of hatches |
3 Hatch 1: 20,50 x 13,21 m Hatch 2: 38,80 x 18,60 m Hatch 3: 26,20 x 18,60 m |
|
Hatch cover type |
MacGREGOR hydraulic folding |
|
Max. permitted loads |
Tanktop: 20,0 t/m² |
|
Tank capacities |
Ballast: 5.809 m³ at 100 % HFO: 1.26 m³ at 98% MDO: 145 m³ at 98% |
|
Anchor equipment |
Length: 577,50 m Diameter: 60 mm |
|
Cargo gear |
2x Haegglunds/Sweden hydraulic fast cranes - each SWL 45,0 t x 28,00 m outreach |
|
Manager |
Bulkship Management AS |
|
Owner |
Oslo Venture Pte. Ltd. |
|
Renamed |
08/2021 Pola Dudinka Russia, St.-Petersburg - Call sign: UBNW5 Owner & manager: Pola Rise Ltd., St. Petersburg - Russia |
|
Latest data adjustment |
29 January 2025 |
