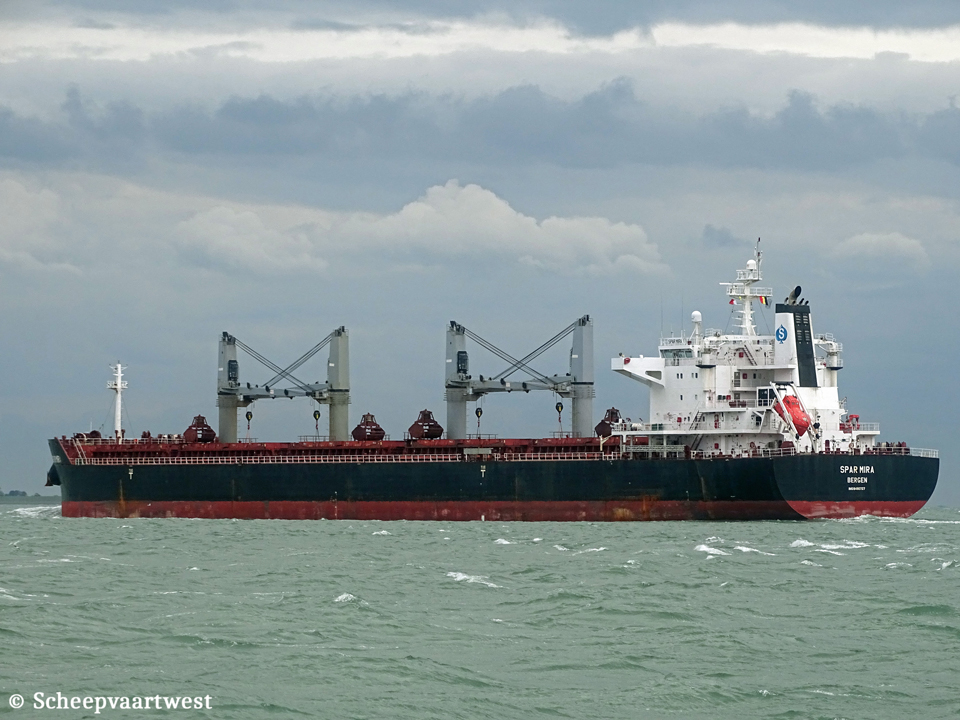

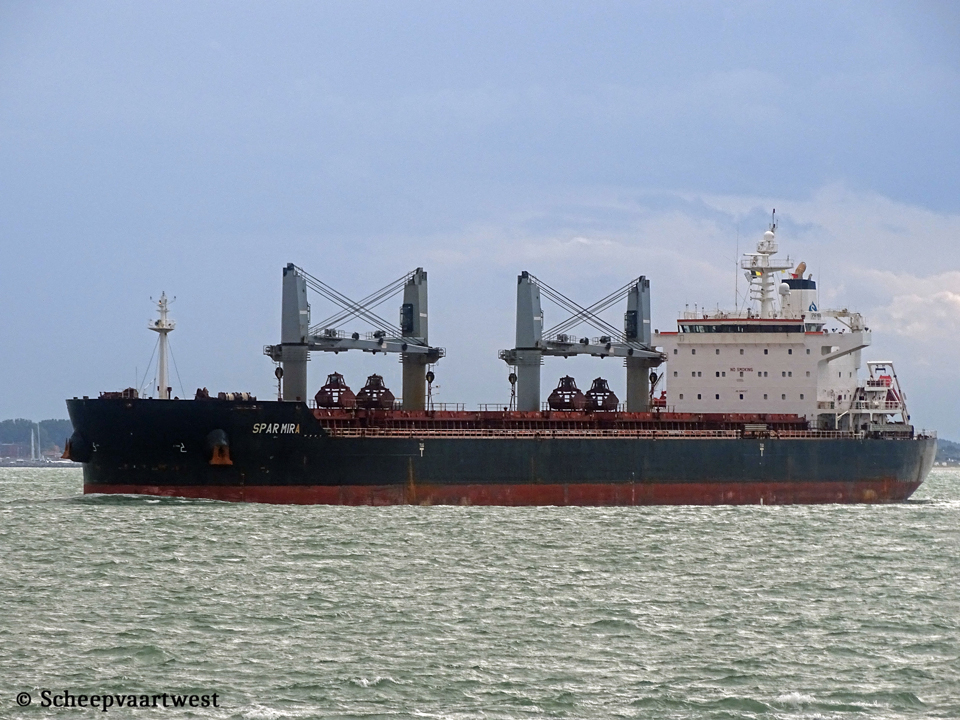

Spar Mira - IMO 9490727

Name

SPAR MIRA

Type

Geared bulk carrier - Strengthened for heavy cargo - Supramax

IMO-number

9490727

Call sign

LAJZ7

Flag

Norway

Port of registry

Bergen

GT

32.839

Suez: 33.689,21

DWT

Summer: 58.018 t

Winter: 56.419 t

NT

19.559

Suez: 30.843,13

Displacement

Summer: 68.970 t

Wine: 67.371 t

Light ship

10.952 t

Length

189,99 m overall

185,34 m between perpendiculars

Breadth

32,29 m extreme

Draught

Summer: 12,95 m

Winter: 12,68 m

Keel to mast end

45,04 m

Freeboard

Summer: 5.072 mm

Winter: 5.342 mm

Depth

18,00 m moulded

Speed

Max: 14,0 knots

Service: 13,5 knots

Build

2010

Keel laid

13/12/2009

Launch date

01/05/2009

Date of completion

28/09/2010

Builder

Yangzhou Dayang Shipbuilding Co., Ltd.

Yangzhou

China

Yard number

3017

Hull material

Steel

Hull type

Single hull

Main engine

1x MAN-B&W 6S50MC-C7 - 6 cylinder combustion engine

Mcr 9.480 kW / 12.898 bhp at 127,0 rpm

Propellers

1x Fixed pitch keyless mono-block propeller

4 blades - Diameter: 6.050 mm

Boilers

1x Auxiliary boiler, composite Mission OC - 0,7 MPa

Generators

3x Wärtsilä 4L20 main diesel generatorsets each 645 kW

Emergency generator

1x Cummins 6BT5.9-D(M) diesel generatorset 91 kW

Number of holds

5

Cargo hold capacity

Bale: 69.760,7 m³

Grain: 71.549,4 m³

Number of hatches

5

Hatch 1: 17,20 x 17,02 m

Hatch 2: 20,64 x 18,64 m

Hatch 3: 20,64 x 18,64 m

Hatch 4: 20,64 x 18,64 m

Hatch 5: 20,64 x 18,64 m

Max permitted loads

Tanktop:

Hold 1,3,5: 25,0 t/m²

Hold 2,4: 19,0 t/m²

Tank capacities 100%

Fuel oil: 2.264,1 m³

Diesel oil: 111,8 m³

Fresh water: 397,8 m³

Ballast: 16.924,7 m³

Anchor equipment

Length: 632,50 m

Diameter: 73 mm

Cargo gear

4x Electro hydraulic single deck crane - SWL 35,0 t each

Manager

Fleet Management Limited

27 Th Floor, South Island Place8 Wong Chuk Hang Roadhong

Hong Kong - China

Registered owner

Spar Shipping AS

Kokstadflaten 30

5257 Kokstad

Norway

Latest data adjustment

02 February 2025
