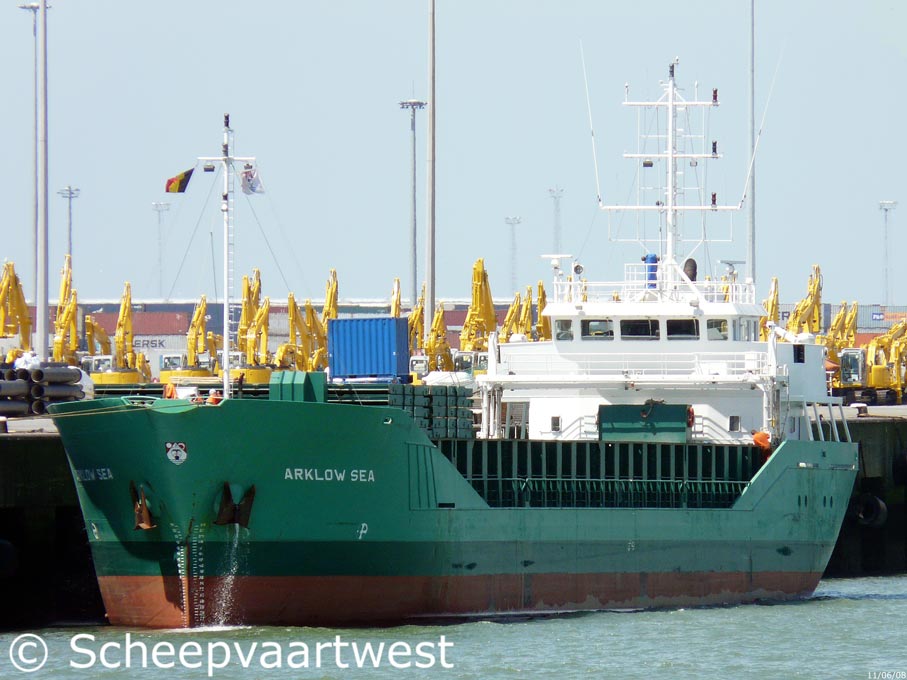

Arklow Sea - IMO 9163623

Name

ARKLOW SEA

Type

General cargo ship - Heavycargo

IMO-number

9163623

Call sign

PFTI

Flag

The Netherlands

Port of registry

Zaandam

GT

2.316 t

Summer

Summer: 3.211 t

DWCC

Summer: 3.000 t

Winter: 2.900 t

NT

1.295 t

Displacement

4.351 t

Number of 20ft containers

On hatch: 40

In hold: 114

Total: 154

Length

89,98 m overall

84,99 m between perpendiculars

Breadth

12,50 m moulded

Draught

Summer: 4,65 m

Air draft

Min: 19,80 m

Freeboard

1.180 mm

Depth

6,00 m moulded

Speed

10,5 knots

Built

1998

Keel

06/10/1997

Launch date

07/03/1998

Date of completion

31/03/1998

Builder

Barkmeijer Shipyard BV

Stroobos

The Netherlands

Yard number

286

Hull material

Steel

Hull type

Double hull

Movable bulkheads

2x Portable may be placed in 6 positions for cargo separation

Continuous decks

1

Main engine

1x MaK 8M20 - 4 stroke single acting 8 cylinder 200 x 300 mm combustion engine 1.360 kW / 1.847 hp at 1.000 rpm with Lohmann & Stolterfoht 4:1 reverse reduction gear

Build: 1997

Builder: Maschinenbau Kiel A.G., Kiel - German Federal Republic

Number of screws

1x Screw propeller solid - aft at 230 rpm

Electrical installation

Power voltage: 380 V

Lighting voltage: 220 V

Frequency: 50 Hz

Generators

2x Valmet 620DSG diesel engines each 110 kW connected with Stamford UCM274 E23 generators each 112 kVA 50 Hz

Emergency generator

1x Valmet 320DSG diesel engine 42 kW connected with Stamford UCM224 E47 generator 47,5 kVA 50 Hz

Bow thruster

1x 200 kW

Number of cargo holds

1

63,00 x 10,20 x 7,43 m

Cargo hold capacity

Grain & bale:

4.723,02 m³ / 166.792,0 ft³ without bulkheads

4.669,00 m³ / 164.884,2 ft³ with bulkheads

Hatchways

1

63,00 x 10,20 m

Hatches cover type

Roden Staal pontoon system

Max permitted loads

Hatch covers: 1,6 t/m²

Tanktop: 14,0 t/m²

Tank capacities

Ballast: 1.586,30 m³

Fuel: 92,50 m³

Fresh water: 56,20 m³

Lub oil: 3,56 m³

Crew

8

Manager

Arklow Shipping Nederland B.V.

Rotterdam

The Netherlands

Owner

BBS Bulk 1 KS

Bergen

Norway

Previous names & owners

• 04/1998 - 2001 Arklow Sea - Rederij Makkinga B.V., Zaandam - The Netherlands

• 2001 - 07/2006 Arklow Sea - Scheepvaart Maatschappij Zaanland B.V., Zaandam - The Netherlands

• 07/2006 - 12/2007 Arklow Sea - Arklow Shipping Nederland B.V., Rotterdam - The Netherlands

• 12/2007 - 05/2012 Arklow Sea - BBS Bulk 1 KS, Bergen - Norway

Renamed

• 05/2012 - 01/2014 BBS Sea - BBS Bulk 1 KS, Bergen - Norway

• 01/2014 - 09/2014 PS Sea - Pillar Shipping SCS (Hoyergruppen AS, Porsgrunn), Luxembourg - G.D. Luxembourg

• 09/2014 - 12/2021 Fluvius Axe - Fluvius Axe Ltd., Nassau - Bahamas

• 12/2021 - 05/2022 Fluvius Axe - Fluvius Axe B.V., Delfzijl, Groningen - The Netherlands

Latest data adjustment

31 October 2023
