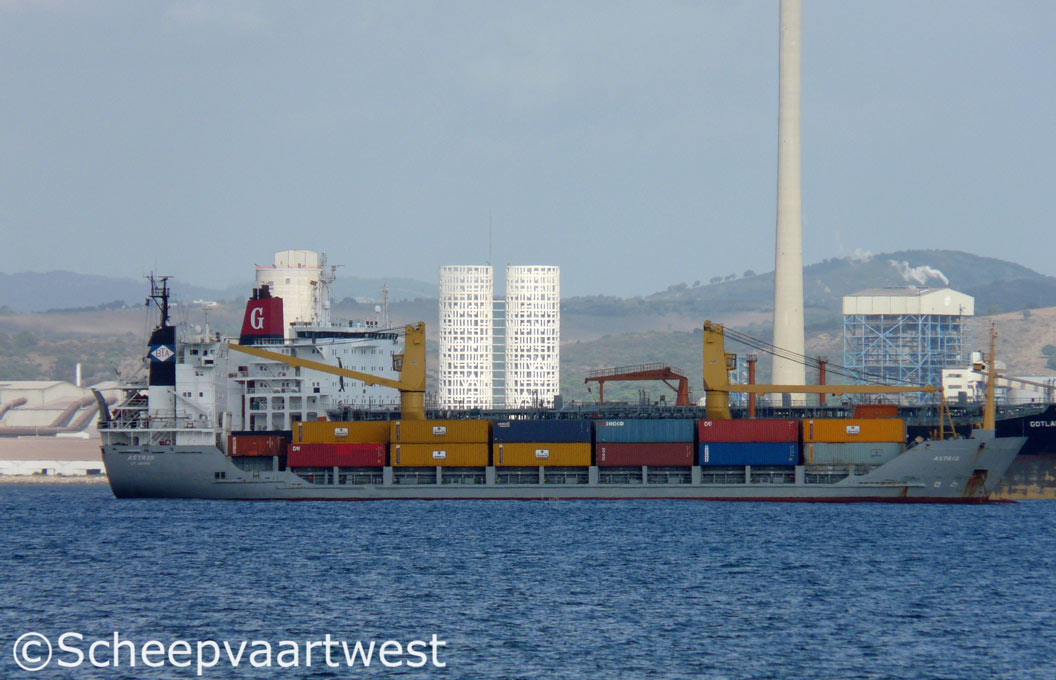

Astrid 02
Gibraltar 21 September 2011



Name

ASTRID

Previous names

1985 - 09.10.1985 Kathe Husmann

1985 - 29.04.1987 Bacol Vitoria

1987 - 13.05.1988 Kathe Husmann

1988 - 02.06.1992 Ville D´Orient

1992 - 28.05.1995 Nedlloyd Tulip

1995 - 12.06.1996 Cam Ayous Express

1996 - 09.05.2001 Fas Gemlik

2001 - 02.08.2001 BBC Germany

2001 - 05.07.2002 Fas Gemlik

2002 - 20.12.2002 Vento Di Tramontana

2002 - 06.02.2006 Astrid

2006 - 06.07.2006 Vento Di Tramontana

Type

General cargo ship

Sub type

Geared RORO/LOLO container vessel with stern ramp

IMO-number

8405036

Call sign

V2AJ3

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

5.608 t

DWT

7.120 t

NT

3.088 t

Number of 20ft containers

In hold: 206

On deck: 368

Total: 574

Container capacity 14t

410

Reefer plug

30

Length

116,96 m over all

107,27 m registered

Breadth

19,60 m registered

Draught

6,133 m

Forecastle

7,90 m

Poop

10,90 m

Quarterdeck

9,10 m

Depth

8,00 m moulded

Speed

13,0 knots

Built

1985

Keel laid

07.02.1985

Launch date

04.06.1985

Date of completion

10.1985

Builder

HDW Nobiskrug Werft GmbH
Rendsburg
Federal Republic of Germany

Yard number

725

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

4

Continuous decks

2

Main engine

1x Krupp Mak 6 M 551 - 4 stroke 6 cylinder 450 x 550 mm diesel engine - 1.899 kW at 450 rpm

Year of manufacture: 1985

Manufacturer: Krupp Mak Maschinenbau GmbH
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft at 150 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 34,3 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 165,9 m²

Year of manufacture: 1985

Manufacturer: HTI Hoch-Temperatur Industrieanlagen GmbH
Hagenbeckstr. 11
22527 Hamburg
Federal Republic of Germany

Electric installations

1x Plant 440 V - 298 kVA

1x Plant 440 V - 298 kVA

1x Plant 440 V - 500 kVA

1x Plant 440 V - 215 kVA

Shaft generator

1x 500 kVA

Generators

2x Main diesel generatorsets each 298 kVA

Emergency generator

1x Diesel generatorset 215 kVA

Compressed air receivers

2x Receivers each 500 litres - 30,0 bar

1x Receiver 20 litres - 10,0 bar

Bow thruster

1x Transverse thruster HATLAPA - 340 kW, forward

Cargo capacity

Grain: 9.150 m³

Number of hold

1

Dimension: 76,55 x 15,20 m

Tank capacities

Fuel oil: 513 m³

Ballast water: 3.122 m³

Anchor equipment

3x Anchors weight each 3.780 kg

Chain length: 522,50 m

Lifting equipment

2x Cranes - SWL 0,9 t each

2x Cranes - SWL 35,0 t each

Manager

Johs. Thode GmbH & Co. KG
Köhlbrandtreppe 2
22767 Hamburg
Federal Republic of Germany

Owner

KG Astrid Beteiligungsges. mbH & Co.
Rathausstr. 2
21423 Winsen
Federal Republic of Germany
