| Cascais, Portugal 10 June 2013 |
 |
 |
 |
||
| Cascais, Portugal 10/06/13 | Antwerpen 05/07/13 | Antwerpen 05/07/13 |
|
Name |

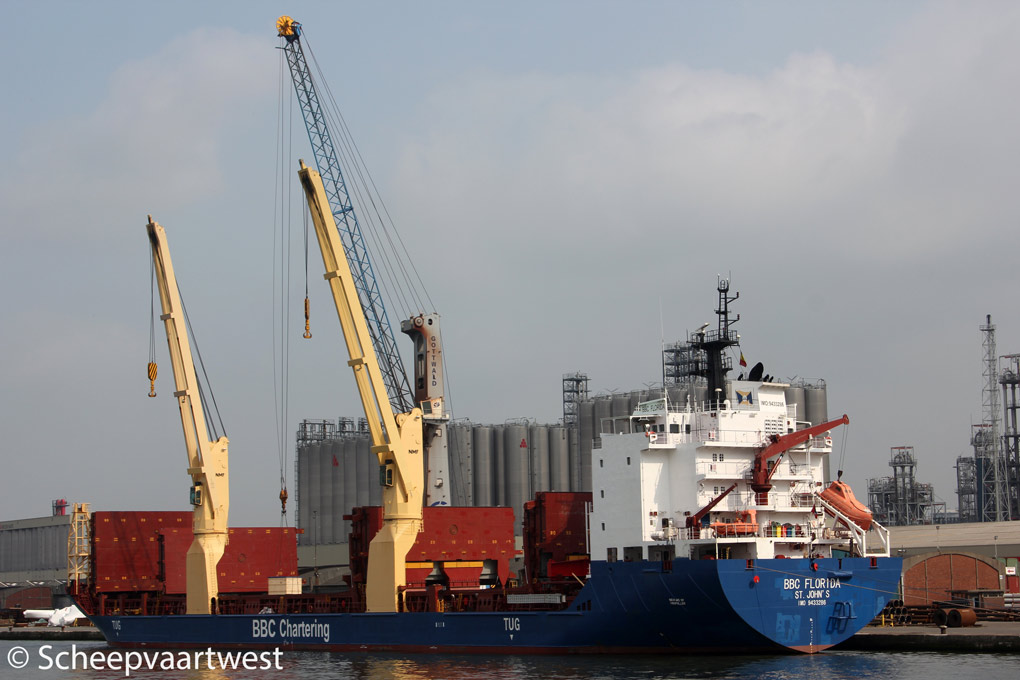

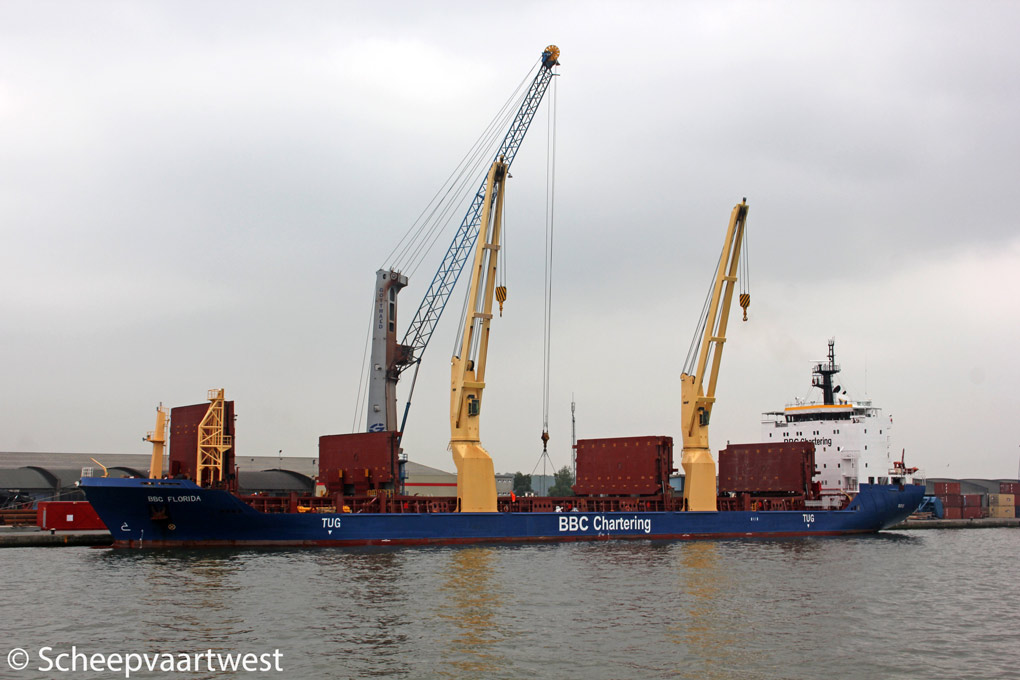

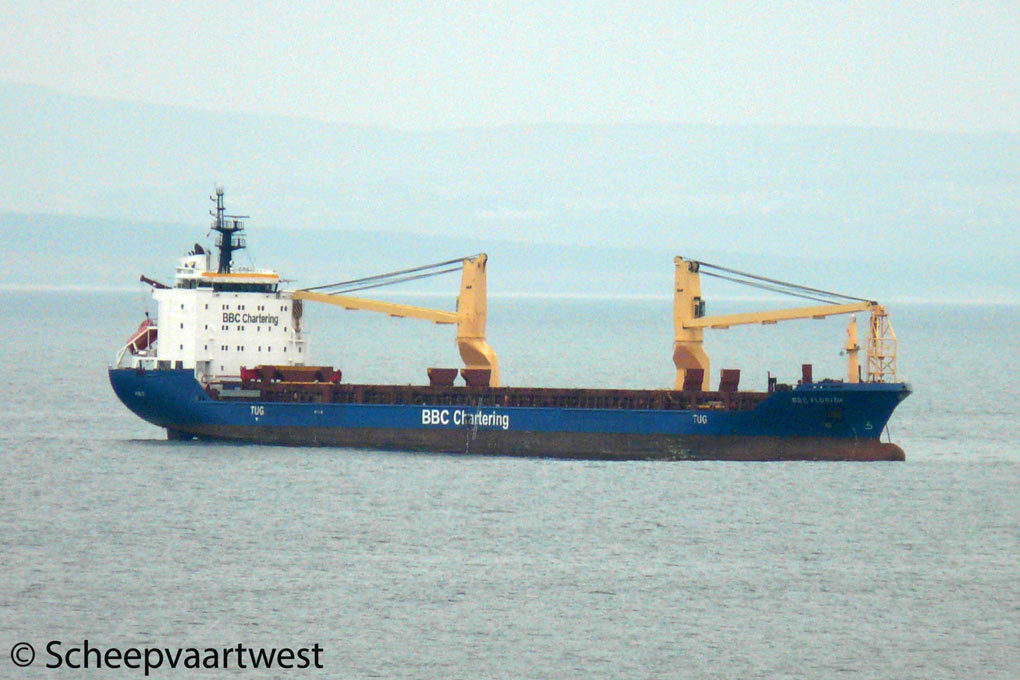

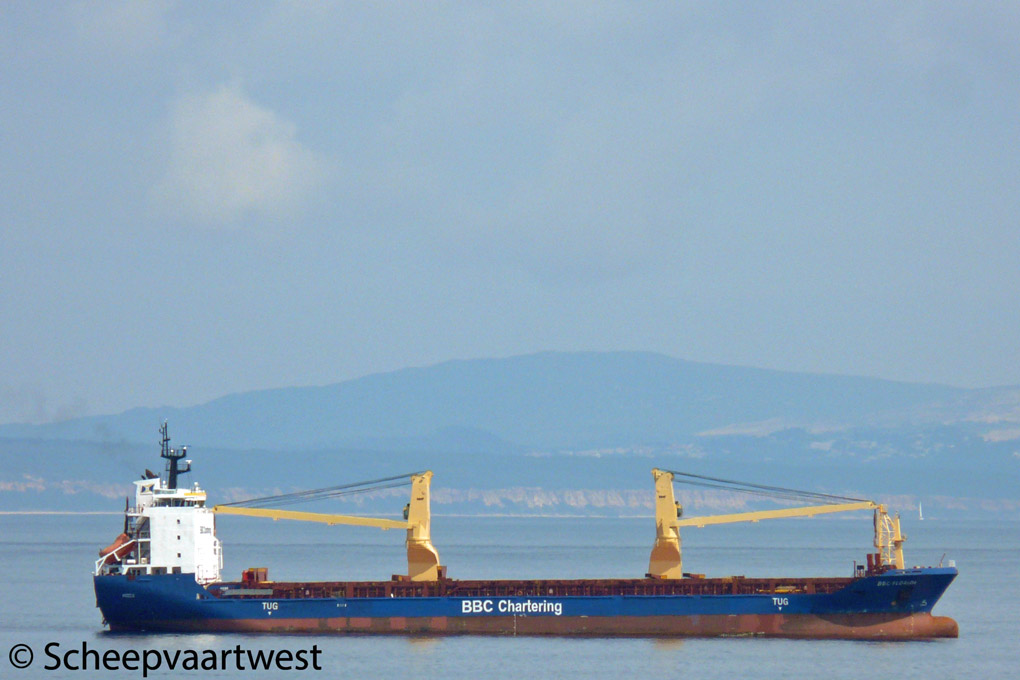

BBC FLORIDA |
|
Type |
Multi-purpose dry heavylifter - strengthened for heavy cargoes, equipped for the carriage of containers, equipped for the carriage of dangerous goods |
|
IMO-number |
9433286 |
|
Call sign |
V2EK3 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
9.627 t |
|
DWT |
Summer: 12.729 t |
|
NT |
4.261 t |
|
Number of 20ft containers |
665 |
|
Container capacity 14t |
528 |
|
Reefer capacity |
50 reefer plugs on deck |
|
Length |
138,54 m overall 130,71 m registered |
|
Breadth |
21,00 m registered |
|
Draught |
Summer: 8,00 m |
|
Height above keel |
40.09 m |
|
Forecastle |
9,96 m |
|
Poop |
12,60 m |
|
Depth to main deck |
11,00 m |
|
Speed |
15,0 knots |
|
Built |
2009 |
|
Keel laid |
19.12.2008 |
|
Launch date |
11.04.2009 |
|
Date of completion |
20.09.2009 |
|
Builder |
Taizhou Sanfu Ship Engineering Co., Ltd. |
|
Yard number |
SF0086 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M43C - 4 stroke 6 cylinder 430 x 610 mm diesel engine - 5.400 kW at 500 rpm Year of manufacture: 2009 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft at 132 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 88,6 m² Year of manufacture: 2008 Manufacturer: TUBE-TEC Rohrverformungstechnik GmbH 1x Thermal oil heater, oil fired - 13,0 bar Heating Surface: 39,0 m² Year of manufacture: 2008 Manufacturer: Alfa Laval Aalborg A/S |
|
Electric installations |
3x Plants each 400 V - 626 kVA 1x Plant 400 V - 875 kVA 1x Plant 400 V - 124 kVA 2x Plants each 24 V - 80 Ah 3x Plants each 24 V - 120 Ah 1x Plant 24 V - 135 Ah 1x Plant 24 V - 180 Ah |
|
Shaft generator |
1x 875 kVA |
|
Generators |
3x Main diesel generatorsets each 626 kVA |
|
Emergency generator |
1x Diesel generatorset 124 kVA |
|
Batteries |
1x Battery for automation 180 Ah 1x Battery for automation 135 Ah 3x Batteries for diesel start each 120 Ah 2x Batteries for diesel start each 80 Ah |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 30,0 bar 1x Receiver 60 litres - 30,0 bar 1x Receiver 1.000 litres - 10,0 bar 1x Receiver 250 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster - 500 kW, forward |
|
Cargo hold capacity |
15.952 m³ / 563.340 ft³ |
|
Floor space |
Under deck: 2.810 m² / 30.247 ft² On deck: 1.480 m² / 15.931 ft² |
|
Anchor equipment |
3x Anchors weight each 4.590 kg Chain length: 550,00 m |
|
Cargo gear |
2x Cranes NMF situated portside 150,0 t capacity each / 300,0 t capacity combined |
|
Crew size |
18 |
|
Manager |
W. Bockstiegel Reederei GmbH & Co. KG |
|
Operator |
BBC Chartering |
|
Registered owner |
W. Bockstiegel GmbH & Co. Reederei KG MS "ASIAN ISLAND" |
|
Last update |
18 June 2013 |
