Name |

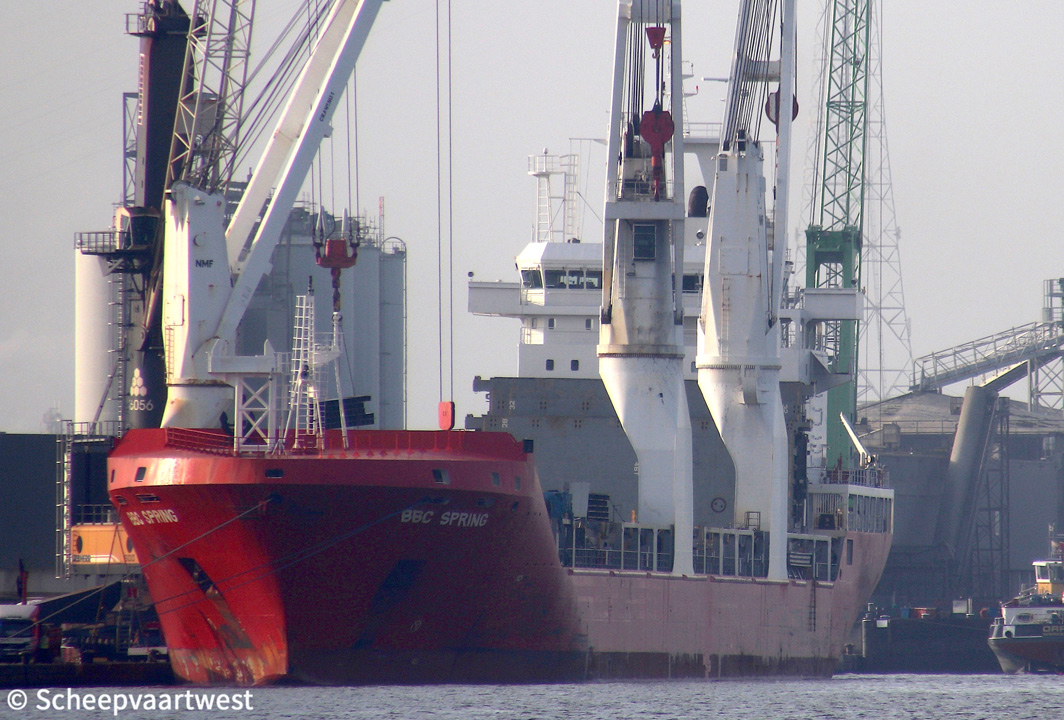

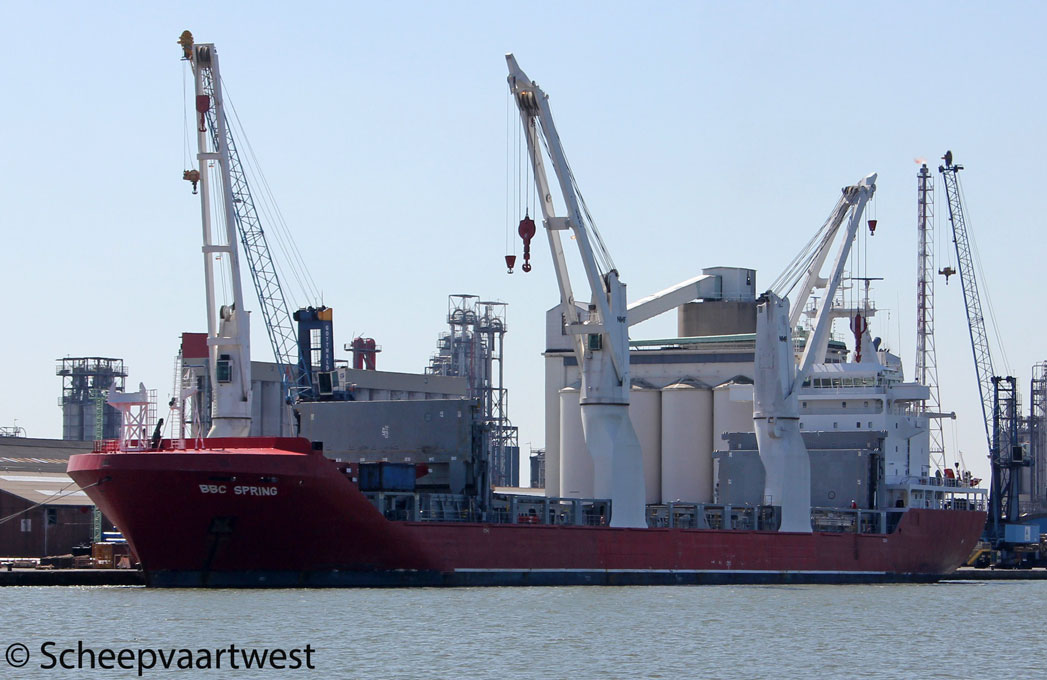

BBC SPRING |
|
Previous names |
2010 - 03/2012 Beluga Sao Paulo 2012 - 12/2012 HHL Bilbao |
|
Type |
General multi-purpose cargo ship - Heavy Load Carrier - Strengthened for heavy cargoes, equipped for the carriage of containers, equipped for the carriage of dangerous goods |
|
IMO-number |
9418999 |
|
Call sign |
V2EU2 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
15.377 t |
|
DWT |
Summer: 16.522,78 t |
|
NT |
5.722 t |
|
Number of 20ft containers |
On Deck: 532 Under Deck: 487 Total: 1.019 |
|
Number of 40ft containers |
On Deck: 213 + 106 TEU Under Deck: 212 + 63 TEU Total: 425 + 169 TEU |
|
Container capacity 14t |
646 |
|
Reefer plug |
122 on deck |
|
Length |
166,25 m overall 156,00 m between perpendiculars |
|
Breadth |
23,27 m extreme 22,90 m moulded |
|
Draught |
9,50 m |
|
Height above keel |
45,62 m |
|
Depth to main deck |
13,90 m |
|
Speed |
Eco: 14,0 knots Service: 16,5 knots Max: 17,8 knots |
|
Built |
2010 |
|
Keel laid |
20/02/2009 |
|
Launch date |
18/11/2009 |
|
Date of completion |
08/11/2010 |
|
Builder |
China Changjiang Shipping Group Qingshan Shipyard Wuhan China |
|
Yard number |
QS20060307 |
|
Hull material |
Steel |
|
Hull type |
Single hull double bottom |
|
Movable bulkheads |
3 - in 3 positions |
|
Main engine |
1x MAN 7L 58/64CD - 7 cylinder combustion engine 9.800 kW |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite MISSION TM OC |
|
Generators |
3x Caterpillar 3412 DITA main diesel generatorsets each 620 kW |
|
Emergency generators |
1x Caterpillar 3412 DITA diesel generatorset |
|
Number of holds |
2 |
|
Cargo hold capacity |
Hold 1: 3.889 m³ / 137.336 ft³ Hold 2: 20.070 m³ / 708.752 ft³ - Double skin boxshaped Total 23.959 m³ / 846.088 ft³ |
|
Hold ventilation |
Mechanical ventilation 6 air changes per hour |
|
Number of hatches |
2 Dimensions: Hatch 1: 25,20 m x 13,10 m Hatch 2: 86,50 m x 18,00 m |
|
Hatch type |
Type of hatch covers Hydraulic Folding Type of tween deck Moveable, pontoon type |
|
Floor space |
Under deck 3.557 m² / 38.287 ft² On deck 1.992m² / 21.442 ft² |
|
Max. permitted loads |
Tanktop: 18,00 t/m² Tweendeck: 3,50 t/m² Hatchcover: 5,00 t/m² Pontons covers middle of hatch 28,00 t/m² |
|
Tank capacities |
Ballast: 9.600 m³ Freshwater: 192 m³ HFO: 1570 m³ MGO: 235 m³ |
|
Anchor equipment |
Length: 577,90 m Diameter: 60 mm |
|
Cargo gear |
2x Cranes NMF cranes situated port side: SWL 400 t capacity each SWL 800 t capacity combined Plus 1 NMF crane situated starboard side SWL 120 t capacity |
|
Manager |
Hansa Heavy Lift GmbH Oberbaumbrücke 1 20457 Hamburg Germany |
|
Operator |
BBC Chartering |
|
Owner |
Hansa Heavy Lift GmbH Oberbaumbrücke 1 20457 Hamburg Germany |
|
Renamed |
2020 UHL Partner Portugal, Madeira - Call sign: CQEA9 Owner: Beluga Shipping GmbH & Co. KG MS "Beluga Participation" Manager: Nordic Hamburg Shipmanagement GmbH & Co. KG |
|
Last update |
03 March 2020 |
