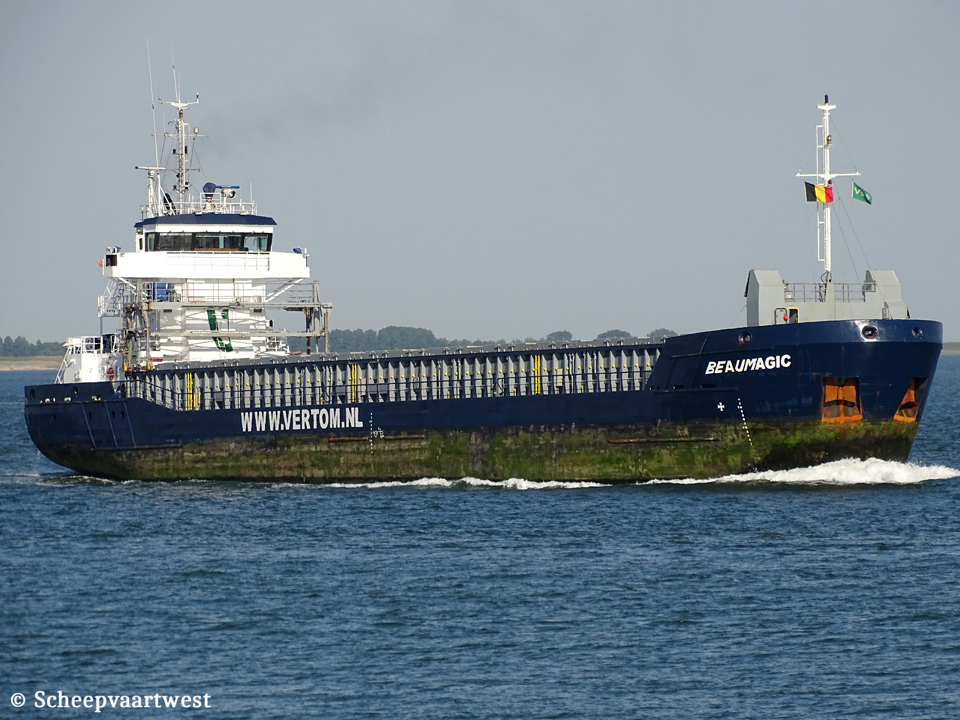

Westerschelde 24 June 2020 |
 |
 |
 |
 |
 |
 |
|||||

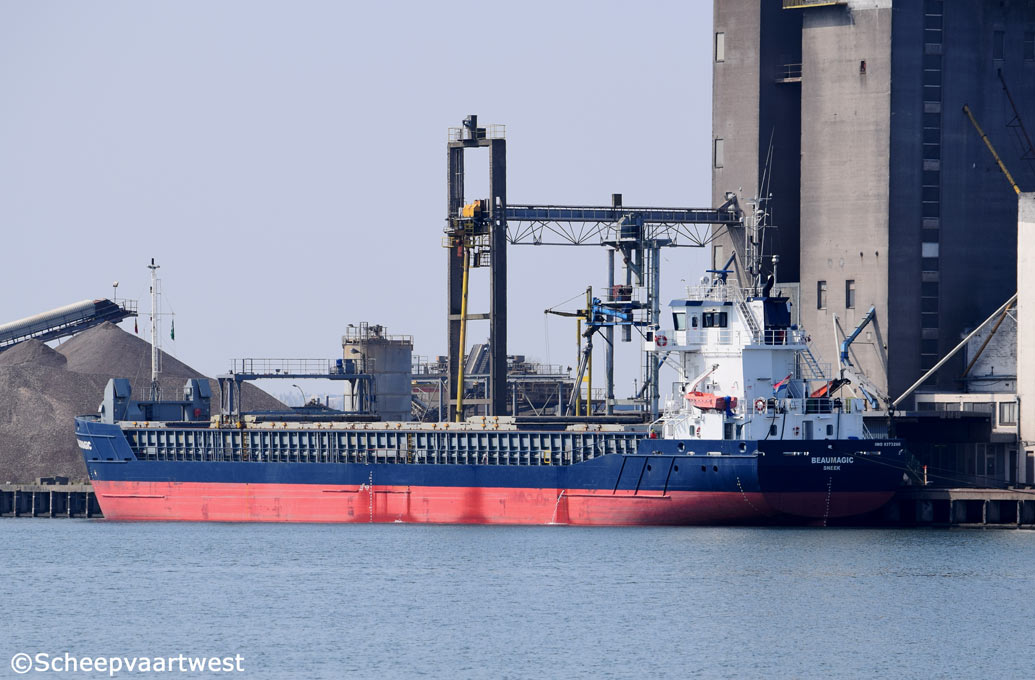

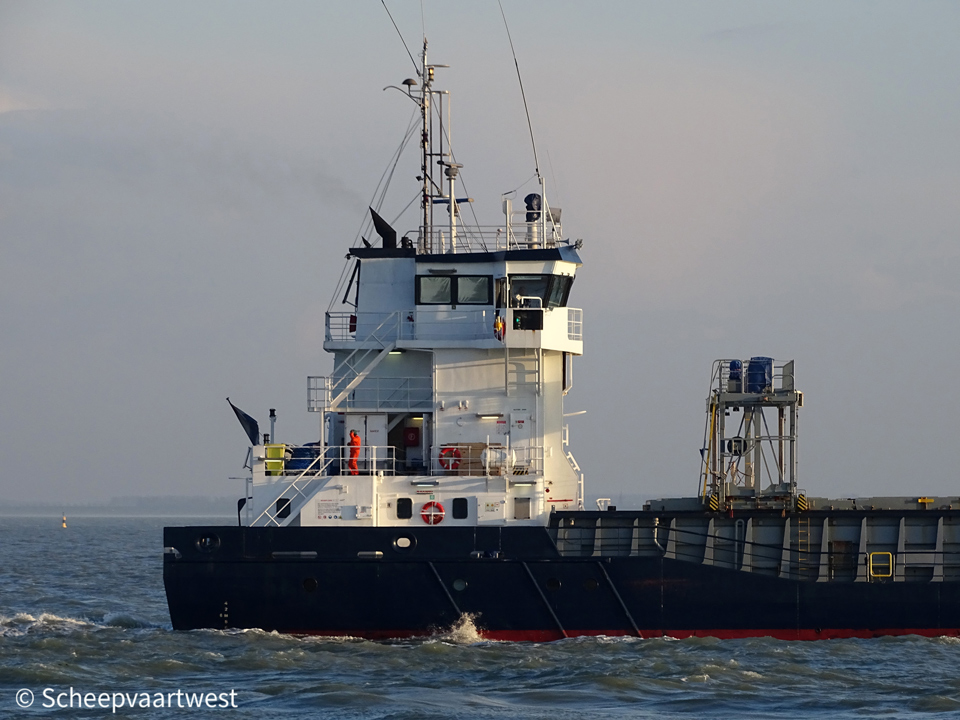

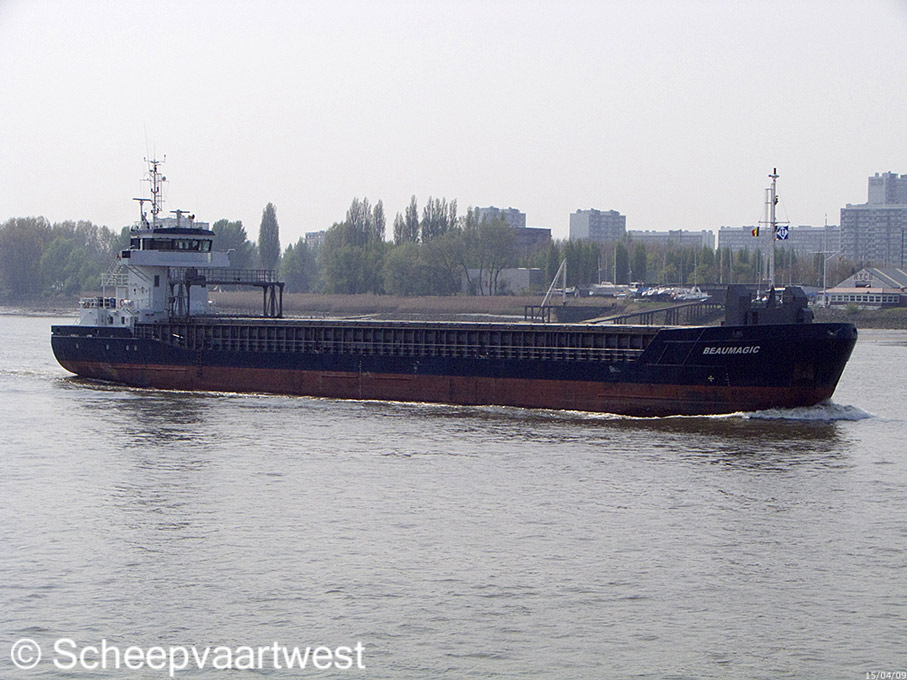

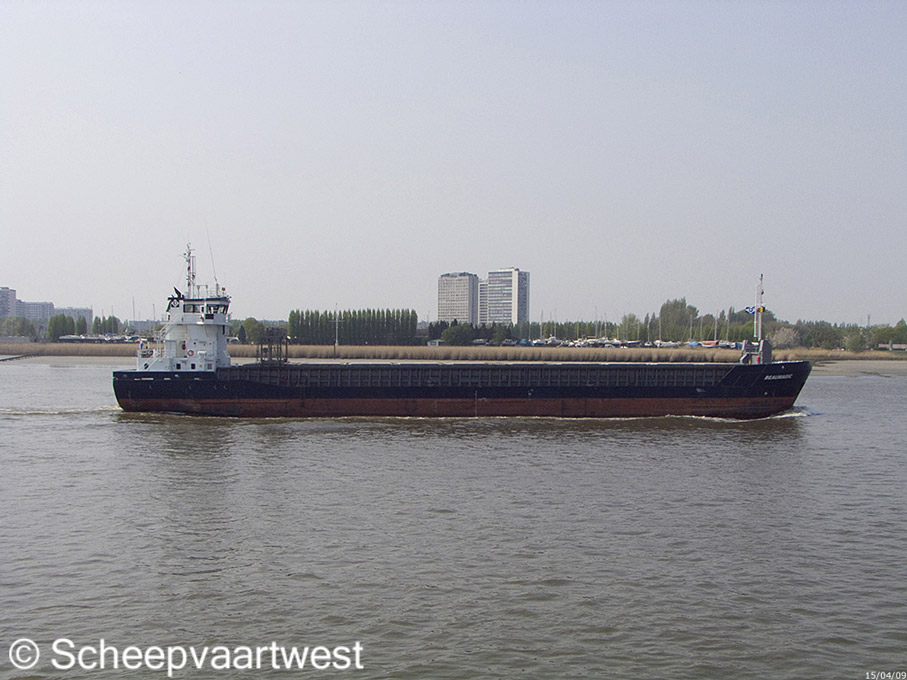

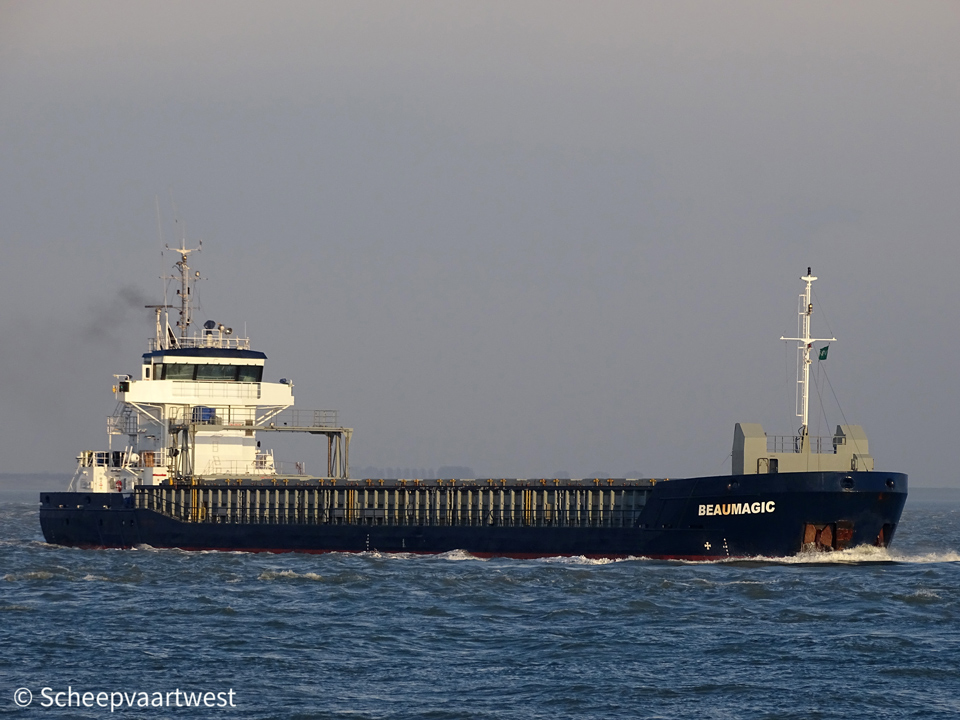

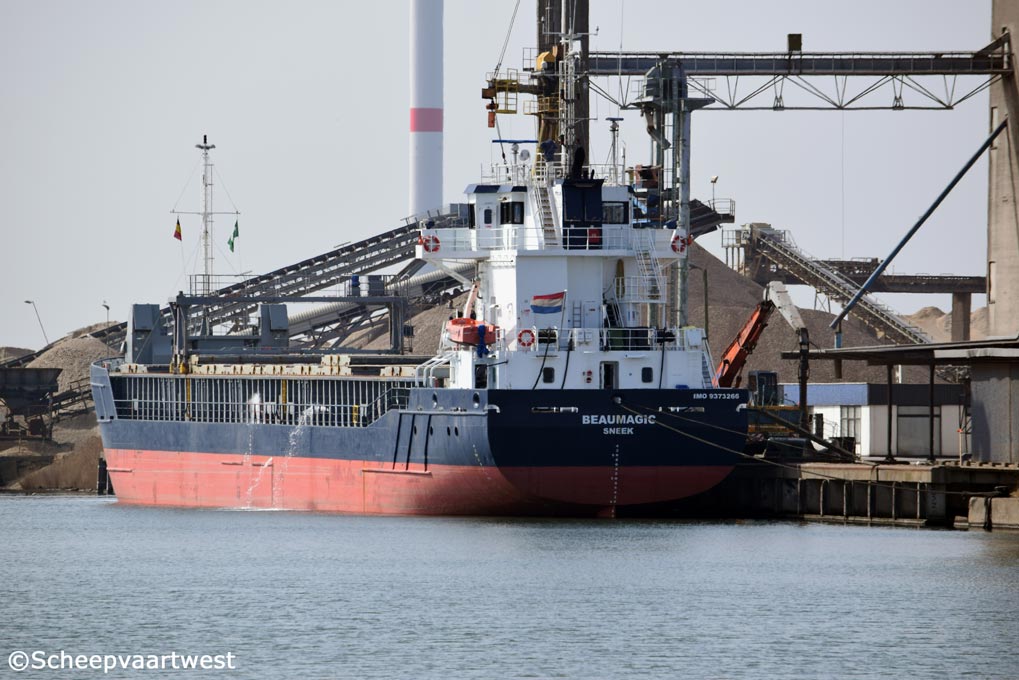

| Westerschelde 28/03/17 | Westerschelde 28/03/17 | Antwerpen 15/04/09 | Antwerpen 15/04/09 | Zeebrugge 08/04/15 | Zeebrugge 08/04/15 |
|
Name |
BEAUMAGIC |
|
Previous names |
2007 Launch as: Beaumajor |
|
Type |
Multi-purpose general cargo - Single deck - Box side |
|
IMO-number |
9373266 |
|
Call sign |
PHKH |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
Previous flag |
2007 - 02/2016 The Netherlands, Sneek- Call sign: PHKH |
|
GT |
2.545 t |
|
DWT |
3.850 t |
|
NT |
1.460 t |
|
Number of 20ft containers |
In hold: 108 On deck: 80 Total: 188 |
|
Length |
88,60 m overall 84,99 m between perpendiculars |
|
Breadth |
12,51 m moulded |
|
Draught |
Summer: 5,42 m Winter: 5,28 m Ballast: 3,41 m |
|
Keel to mast end |
24,80 m |
|
Air draft |
27,40 m keel / mast down |
|
Depth |
7,00 m moulded |
|
Speed |
Service: 10,80 knots Max.: 12,00 knots |
|
Built |
2007 |
|
Launch date |
21/09/2006 |
|
Date of completion |
04/2007 |
|
Builder casco |
Brodogradilište Sava Shipyard Sremska Mitrovica Serbia |
|
Outfitting yard |
Damen Shipyards Bergum B.V Bergum The Netherlands |
|
Yard number |
9366 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
2x Moveable, can be positioned giving a clear boxspace of 48,50 x 10,10 m (in 9 positions) |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M20 - 4 stroke 8 cylinder 200 x 300 mm combustion engine 1.520 kW / 2.067 hp at 1.000 rpm Builder: MaK Caterpillar, Kiel - Germany |
|
Number of screw |
1 |
|
Bow thruster |
1x 420 kW |
|
Number of holds |
1 62,52 x10,10 x 8,43 m |
|
Hold capacity |
Bales / Grain: 5.250 m³ - 185.400 ft³ |
|
Number of hatches |
1 62,52 x 10,10 m |
|
Hatch cover type |
Pontoon |
|
Max. permitted loads |
Tank top: 15 t/m² Hatch covers: 1,6 t/m² |
|
Manager |
Vertom Scheepvaart- en Handelmaatschappij B.V. Rotterdam The Netherlands |
|
Previous managers |
04/2007 - 08/2014 Unisea Shipping BV (G. de Jager), NL-8606 VP Sneek - The Netherlands |
|
Owner |
Vertom UCS Beaumagic B.V. Rotterdam |
|
Previous owners |
04/2007 - 08/2014 Beaumagic B.V. Sneek The Netherlands |
|
Remarks |
23/10/2006 stranded in bad weather on the coast of Portugal in the Cova Alfarroba between Baleal and Peniche |
|
Latest data adjustment |
21 November 2021 |
