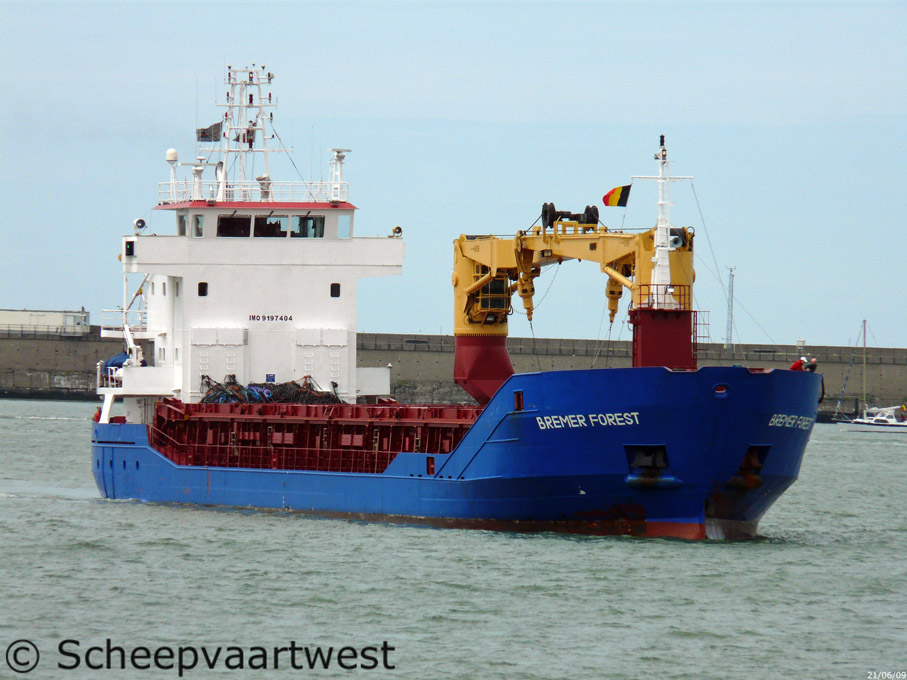

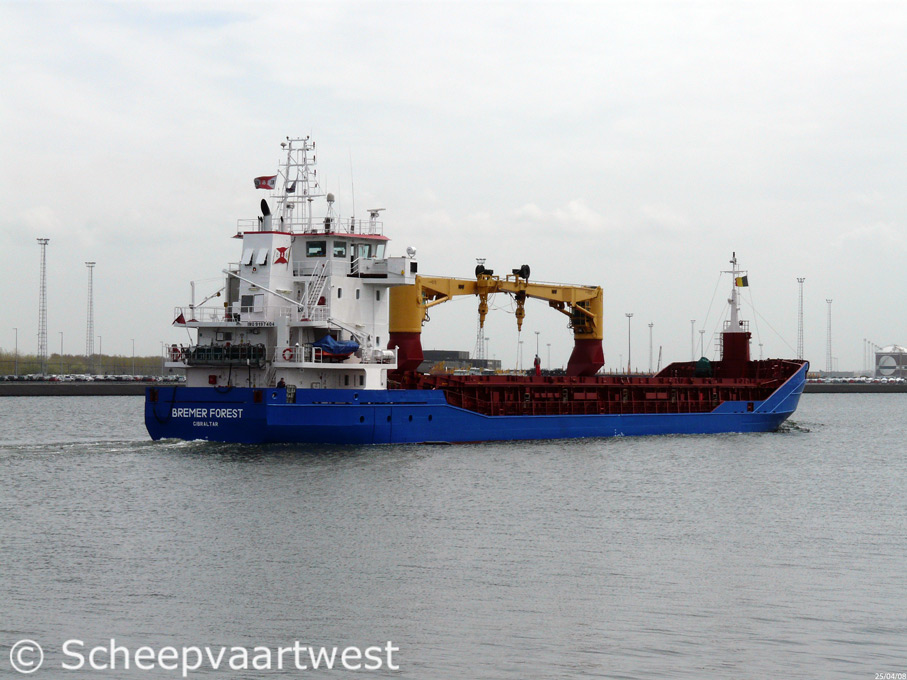

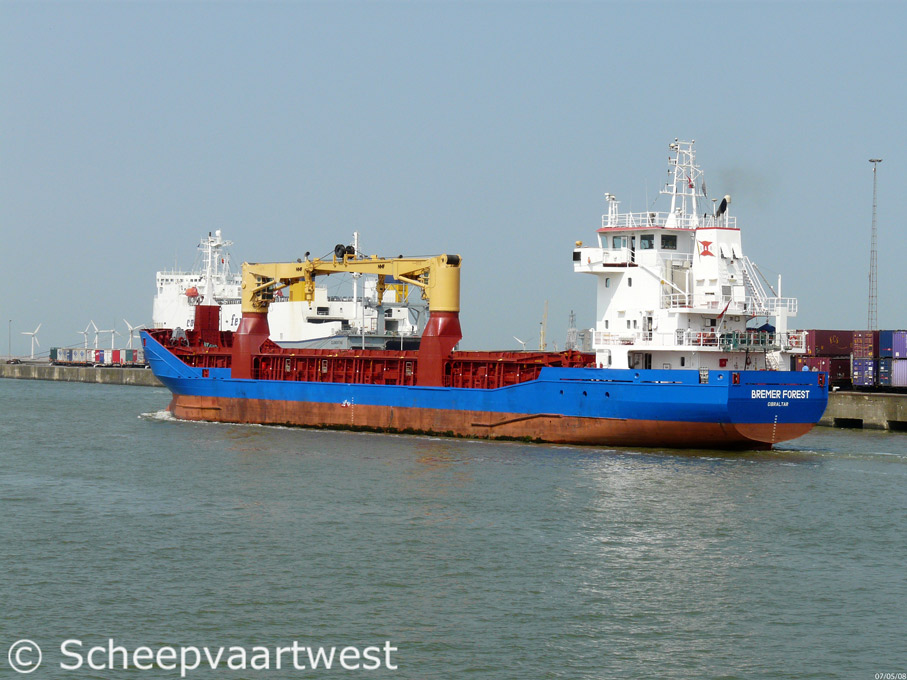

Bremer Forest - IMO 9197404

Name

BREMER FOREST

Previous names

2000 - 2001 Paapsand
2001 - Bremer Forest

Type

General Cargo
Multi-purpose Vessel - Tween decker

IMO-number

9197404

Call sign

ZDED7

Flag

Gibraltar

Previous flag

Germany

Port of registry

Gibraltar

GT

2.528 t

DWT

3.399 t

3.500 t (without tween deck)

NT

1.372 t

Number of 20ft containers

Deck: 62
Hold: 105

Total: 167

Container capacity 14t

129

Reefer plugs

18 CEE plug 32 A

Length

86,57 m overall
81,07 m between perpendiculars

Breadth

12,80 m moulded

Draught

Summer: 5,546 m

Forecastle

6,70 m

Freeboard

1.550 mm

Depth

7,10 m moulded

Speed

12,3 knots

Built

2000

Keel laid

02.06.1998

Launch date

15.06.1999

Completion

06.2000

Builder

Slovenske Lodenice A.S.
Rolnickej Skoly 1519
945 25 Komarno
Slovak Republic

Yard number

1901

Hull material

Shipbuilding steel (standard)

Hull type

Single hull

Double bottom

Watertight bulkheads

4

2 pcs, movable, can be placed in 7 positions, tween deck pontoons can be used as bulkheads

Continuous decks

2

Main engine

1x Krupp MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm diesel engine - 2.000 kW at 750 rpm

Builder: Krupp MaK Maschinenbau GmbH, Kiel - Germany

Number of screws

1x Controllable pitch propeller - aft

Boiler

Water heater, oil fired - 4,0 bar

Electric installations

1x 380/220 V - 526 kVA

1x 380 V - 470 kVA

1x 380 V - 90 kVA

Shaft generator

1x 470 kVA / 400 kW

Generators

2x MAN D 1866 LE diesel generatorsets each 263 kVA / 230 kW at 1.500 rpm

Emergency generator

1x Diesel generatorset 90 kVA at 1.500 rpm

Bow thruster

1x Transverse thruster JASTRAM - 185 kW forward

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

1x Receiver 10 litres - 30,0 bar

Cargo capacity

Grain: 4.677 m³

Bales: 4.620 m³

Holds

1
Dimensions: 56,55 x 10,20 x 8,10 m

Hatches

1
Dimensions: 56,55 x 10,20 m

Hold ventilation

12 air changes per hour

Strength on

TT 20,00 t/m²

WD 2,50 t/m²

Floor space

570 m² under deck + 576 m² on deck

Tank capacity

Ballast: 1.546 t - 1.479,4 m³
Freshwater: 51,8 t - 51,8 m³
Lub oil: 10 t
MCO: 213,3 t - 237 m³

Cranes

2x Cranes each up to 35 t portside combinable up to 70 t

Anchor equipment

3x Anchors weight each 1.920 kg

Chain length: 440,00 m

Accommodation

12 persons
9 cabins

Crew

8

Ship manager

Briese Schiffahrts GmbH & Co KG
12, Hafenstrasse
26789 Leer
Germany

Owner

Briese Schiffahrts GmbH & Co. KG MS "LÜTJE HÖRN"
12, Hafenstrasse
26789 Leer
Germany

Registered owner

Paapsand
12, Hafenstrasse
26789 Leer
Germany
