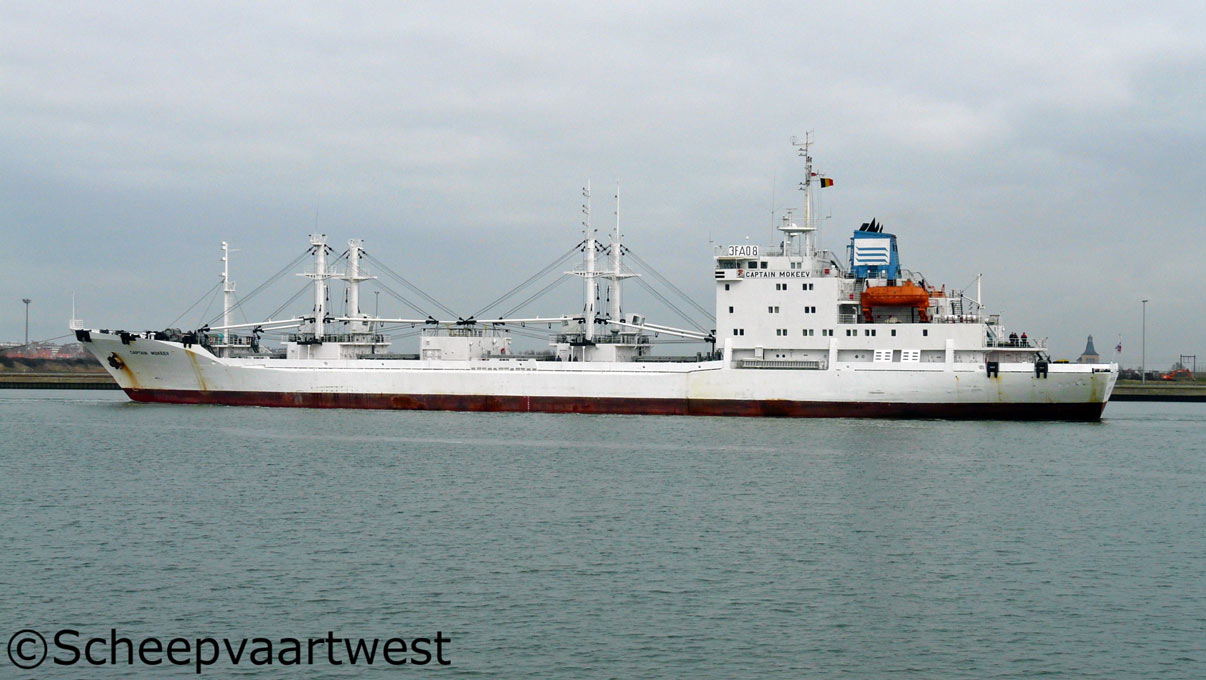

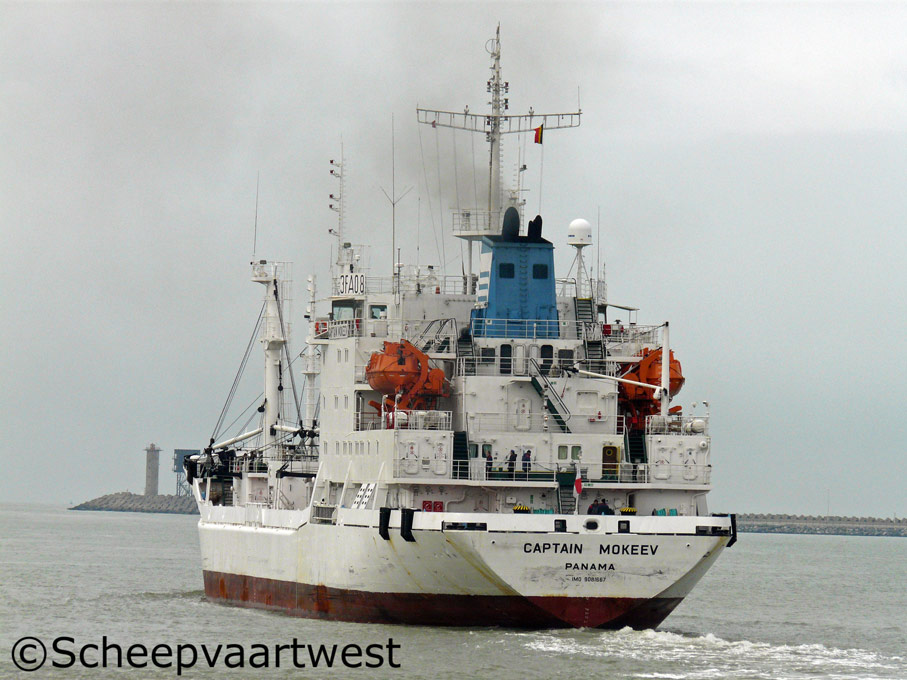

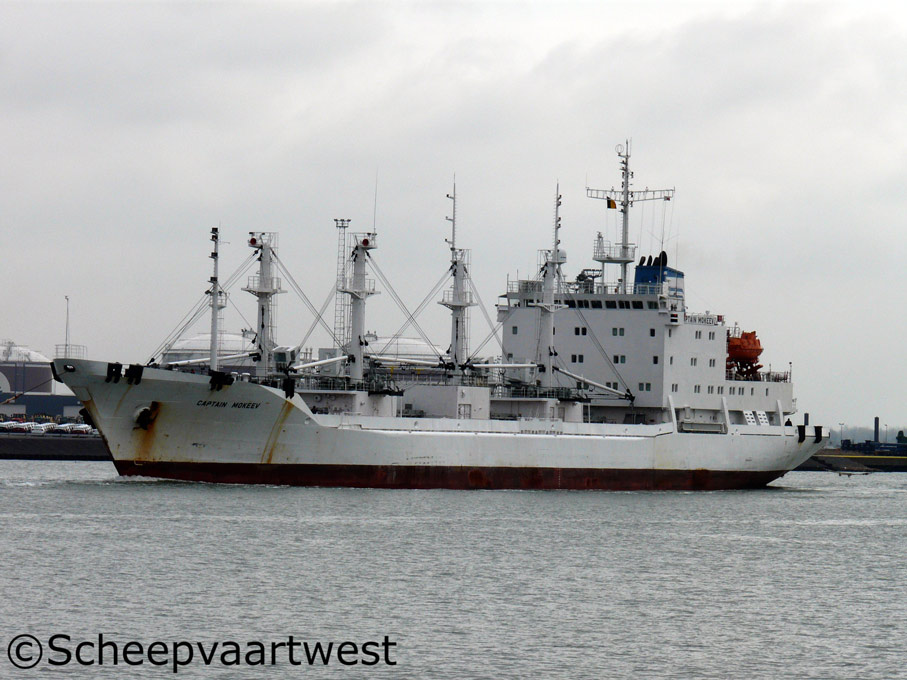

| Zeebrugge 05 March 2011 |
 |
 |
|
| Zeebrugge 05/03/11 | Zeebrugge 05/03/11 |
|
Name |
CAPTAIN MOKEEV |
|
Previous names |
Frio Marathon |
|
Type |
Refrigerated cargo ship |
|
IMO-number |
9081667 |
|
Call sign |
3FAO8 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
6.971 t |
|
DWT |
6.720 t |
|
NT |
3.103 t |
|
Number of 20ft containers |
On deck: 41 In holds: 48 Total: 89 |
|
Length |
133,95 m overall 122,92 m registered |
|
Breadth |
18,00 m registered |
|
Draught |
7,887 m |
|
Forecastle |
18,00 m |
|
Depth |
10.70 m moulded |
|
Speed |
15,0 knots |
|
Built |
1998 |
|
Keel laid |
25.10.1995 |
|
Launch date |
02.11.1996 |
|
Date of completion |
02.1998 |
|
Builder |
61 Communards Shipbuilding |
|
Yard number |
1146 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
9 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN B&W 6 DKRN 42/136-10 - 2 stroke single acting 6 cylinder 420 x 1.360 mm diesel engine - 5.100 kW at 168 rpm Year of manufacture: 1994 Manufacturer: Bryansk Engineering Works |
|
Propeller |
1x Solid propeller |
|
Boilers |
1x Steam boiler exhaust gas heated - 10,0 bar Heating surface: 150,0 m² Year of manufacture: 1995 1x Steam boiler, oil fired - 6,9 bar Heating surface: 97,8 m² Year of manufacture: 1997 Manufacturer: Black Sea Shipyard S.E. |
|
Electric installations |
1x Plant 380/220 V - 688 kVA 1x Plant 380/220 V - 688 kVA 1x Plant 380/220 V - 688 kVA 1x Plant 380 V - 125 kVA |
|
Generators |
3x Main diesel generatorsets each 688 kVA |
|
Emergency generator |
1x Diesel generatorset 125 kVA |
|
Compressed air receivers |
1x Receiver 130 litres - 60,0 bar 2x Receivers each 2.250 litres - 30,0 bar 1x Receiver 1.000 litres - 30,0 bar 1x Receiver 150 litres - 30,0 bar 1x Receiver 1.000 litres - 10,0 bar 1x Receiver 500 litres - 10,0 bar |
|
Total capacity of holds |
7.500 m³ |
|
Holds |
4 |
|
Hatches |
4 size: 7,80 x 6,50 m |
|
Compartments |
12 |
|
Largest hatch |
Length: 6,50 m Breadth: 7,80 m |
|
Ballast water |
563 m³ |
|
Anchor equipment |
3x Anchors weight each 3.780 kg Chain length: 522,50 m |
|
Lifting equipment |
4x Derricks - SWL 5,0 t each 4x Derricks - SWL 5,0 t each |
|
Refrigerating |
Maker of refrigerating machinery: Sabroe Refrigeration A/S Marine Division Controlled atmosphere: Mobile gas generating systems for controlled atmosphere taken on board on demand Controlled atmosphere short: CAmob Temperature of insulated spaces, min.: -30°C Temperature of sea water, max.: 32°C Number of holds: 12 Number of insulated holds: 8 Number of separate cooled holds: 8 |
|
Compressors |
3x Compressors model SAB 128 HF |
|
Evaporators / Condensers |
Number of air cooler: 16 Number of circulating fan: 58 Number of condenser: 3 Number of cooling water pump: 3 Number of liquid receiver: 3 Number of oil separator: 3 Number of refrigerating machinery room fan: 3 Refrigerant: R 22 Kind of cooling: Direct evaporation |
|
Crew |
22 |
|
Manager |
Yugreftransflot JSC |
|
Owner |
Naval Challenger S.A. |
