| Zeebrugge 28 June 2010 |
 |
| Zeebrugge 28/06/10 |
|
Name |

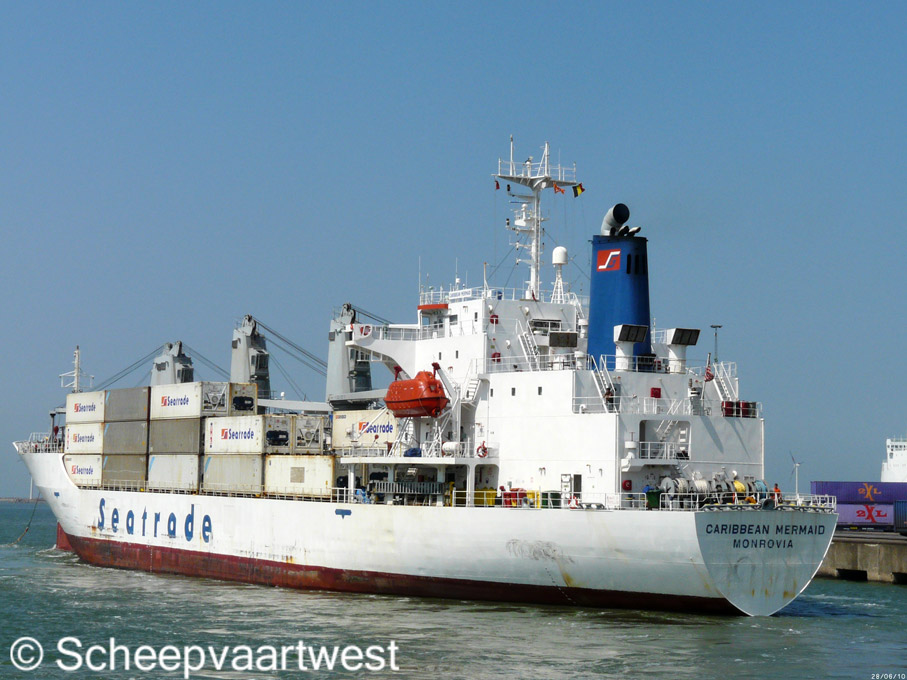

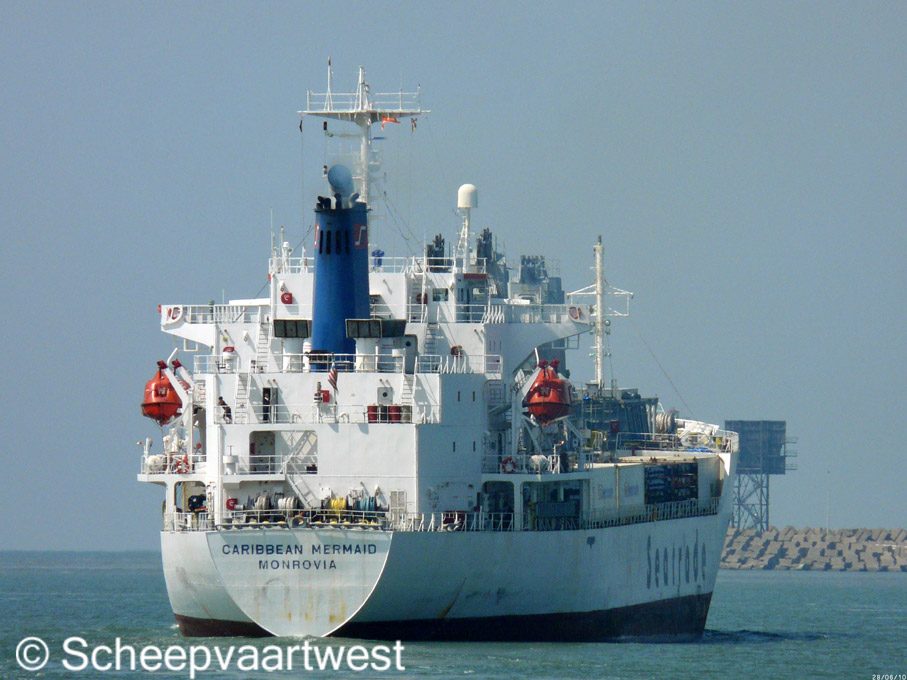

CARIBBEAN MERMAID |
|
Previous names |
1992 Caribbean Mermaid 2002 Northern Mermaid 2004 Caribbean Mermaid |
|
Type |
Refrigerated cargo ship Frozen cargo |
|
IMO-number |
9064229 |
|
Call sign |
A8JH5 |
|
Flag |
Republic of Liberia |
|
Port of registry |
Monrovia |
|
GT |
9.829 t |
|
DWT |
Summer: 10.464 t |
|
NT |
3.538 t |
|
Number of 20ft containers |
80 |
|
Reefer plugs |
49 |
|
Length |
141,80 m overall 133,00 m between perpendiculars |
|
Breadth |
22,80 m |
|
Draught |
Summer: 8,81 m |
|
Freeboard |
4.213 mm |
|
Depth |
13,01 m |
|
Speed |
19,5 knots |
|
Built |
1993 |
|
Date of completion |
24.02.1993 |
|
Builder |
Iwagi Shipbuilding Co., Ltd. |
|
Yard number |
149 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
7 |
|
Continuous decks |
4 |
|
Main engine |
1x B&W 7S 50 MC - 2 stroke 7 cylinder 500 x 1.910 mm internal combustion engine - 9.170 kW / 12.460 bhp at 123 rpm Build: 1992 Builder: Hitachi, Osaka - Japan |
|
Propelling system |
1x Screw Propeller Solid at 119 rpm |
|
Boilers |
1x CHM Miura 17,00 m² - 8,0 bar |
|
Electrical installation |
Power voltage: 440 V Lighting voltage: 100 V Frequency: 60 Hz |
|
Generators |
3x Diesel generatorsets each 1.000 kVA - 800 kW - 1.200 hp |
|
Number of holds |
24 |
|
Total capacity of holds |
15.295,00 m³ |
|
Cargo hatchways |
4 Dimension: 7,60 x 7,10 m |
|
Cargo handling |
2x Cranes - SWL 10,0 t each 2x Cranes - SWL 30,0 t each |
|
Refrigerating installations |
Compressors: 3 Refrigerant type: R22 Method of cooling: Brine Means for distribution: Air coolers |
|
Refrigerating installations |
Temperature range: -30°C Number of holds: 20 Total capacity: 15.295 m³ Insulation material: Glass wool and Polyurethane Insulation lining: Plywood |
|
Fuel capacity |
1.725 m³ |
|
Crew |
23 |
|
Manager |
Seatrade Groningen B.V. 9728 JS Groningen |
|
Operator |
Seatrade |
|
Owner |
Caribbean Mermaid Schifffahrts GMBH & Co KG |
