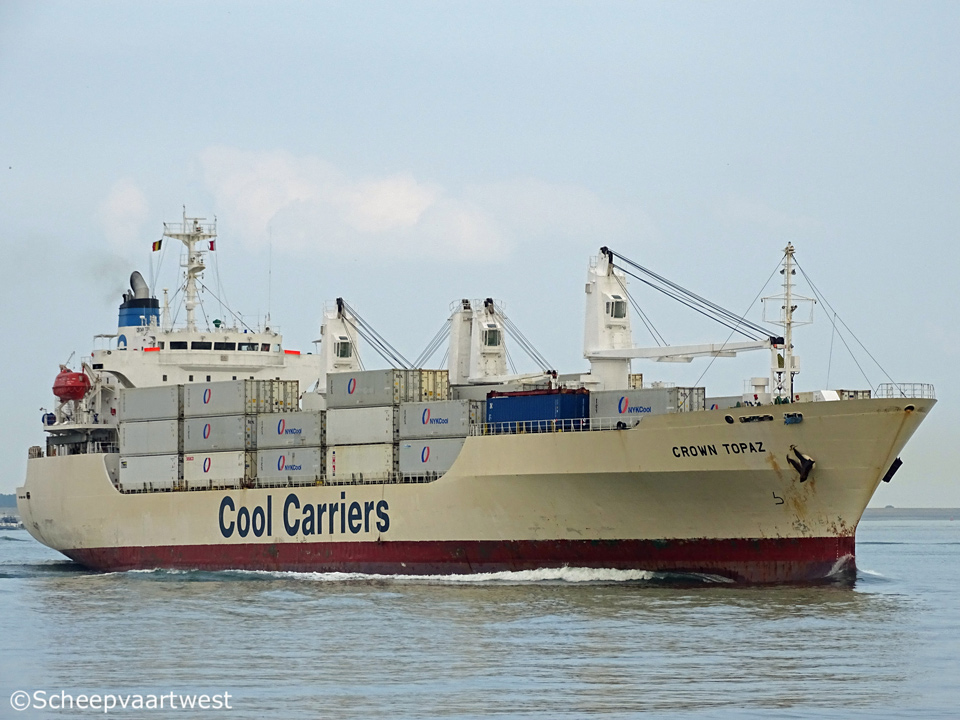

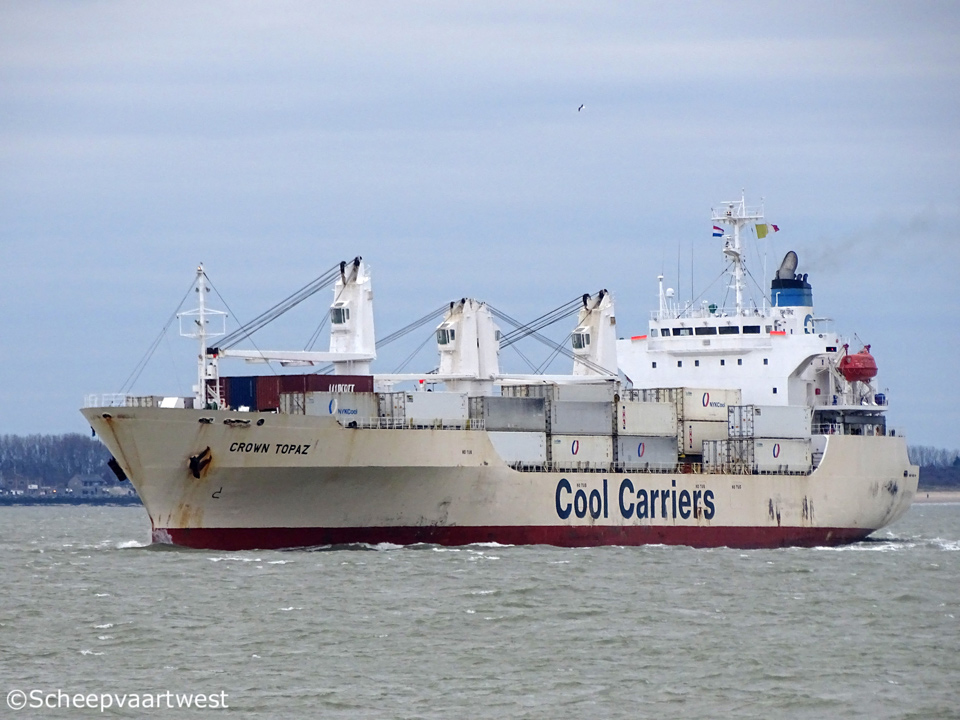

Crown Topaz 15

Westerschelde 25 December 2017

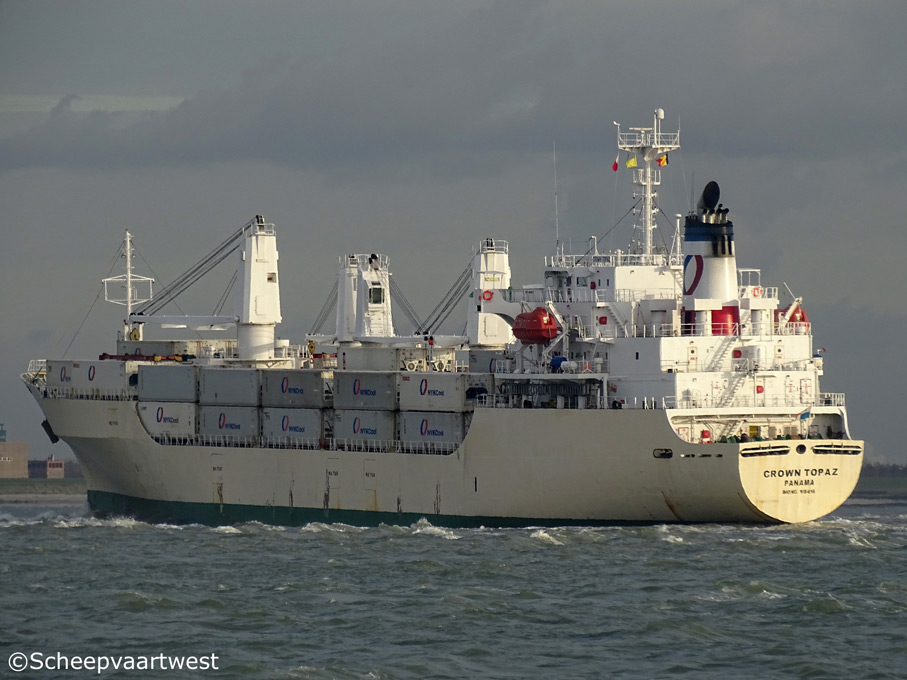

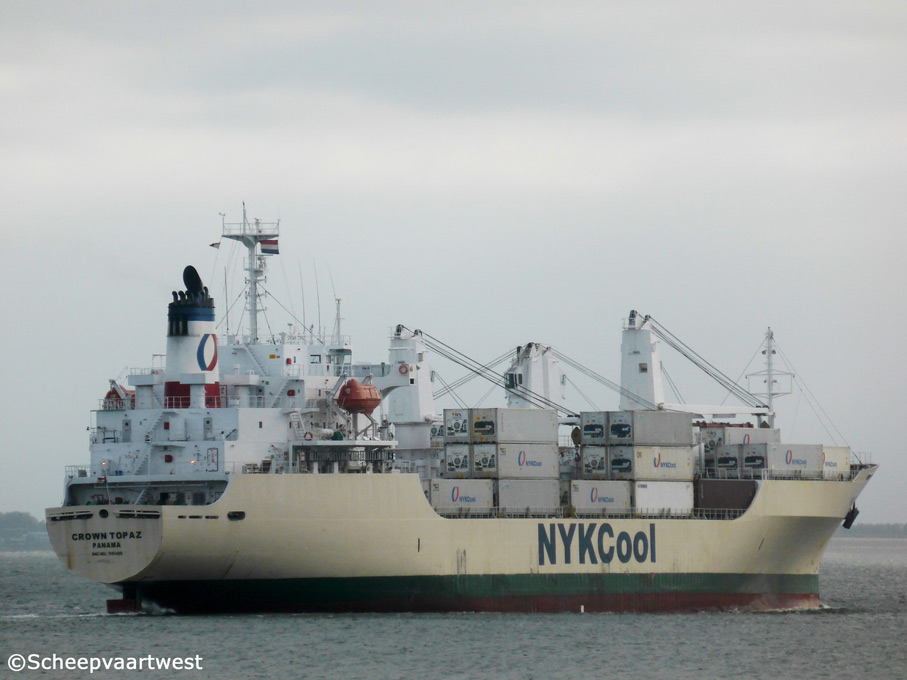

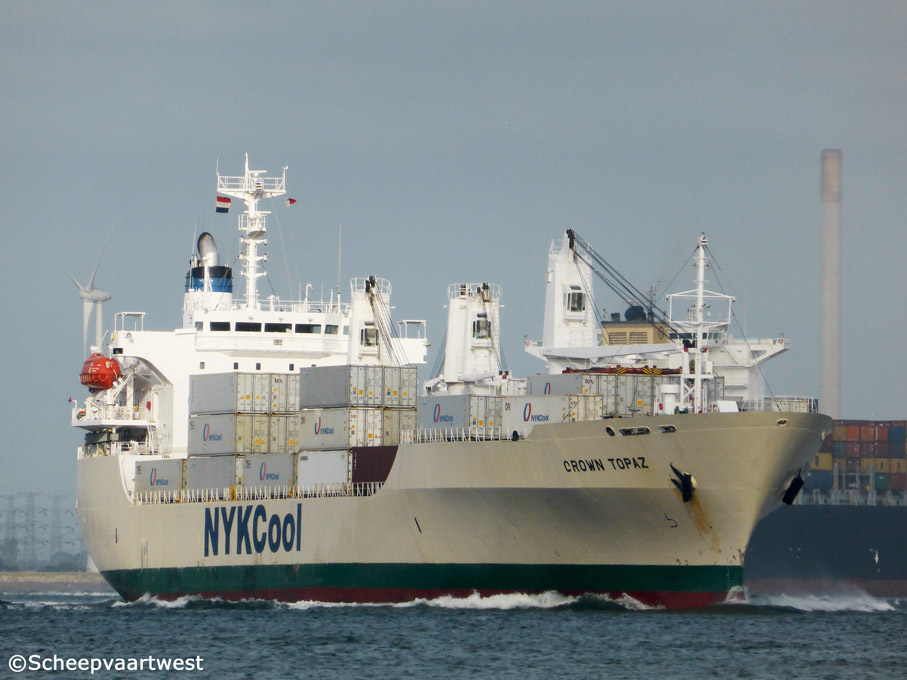

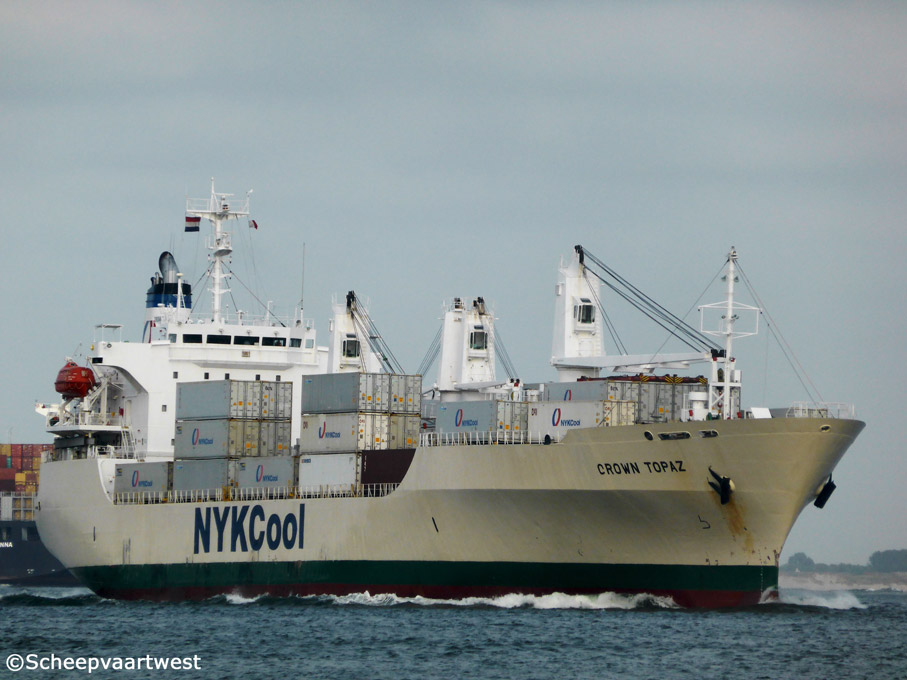

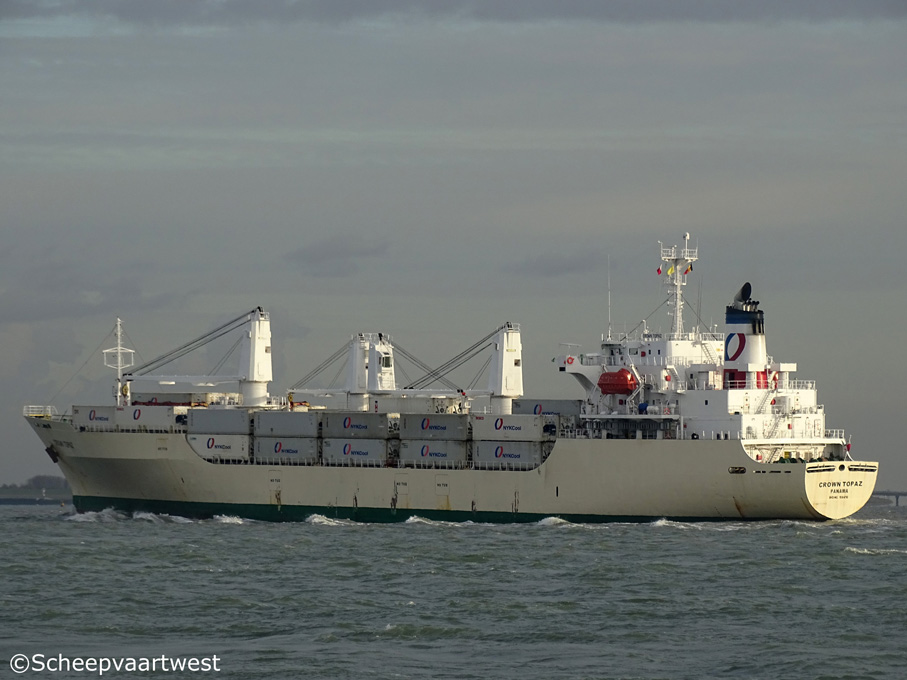

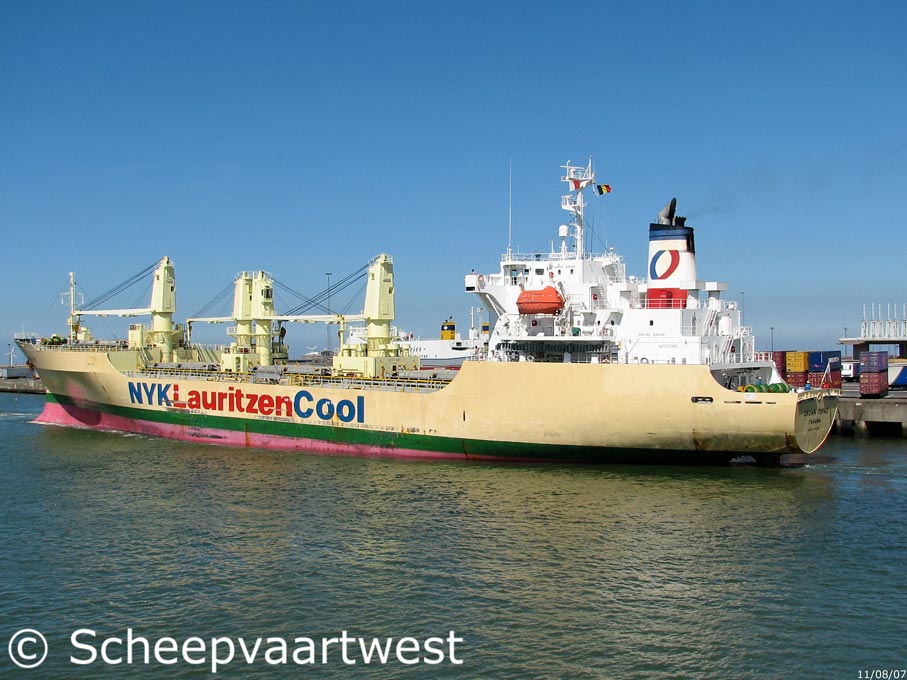

Crown Topaz 11   Crown Topaz 12   Crown Topaz 08   Crown Topaz 07   Crown Topaz 09   Crown Topaz 02
Westerschelde 23/11/15 Westerschelde 23/11/15 Westerschelde 17/06/14 Westerschelde 17/06/14   Westerschelde 17/06/14   Zeebrugge 11/08/07

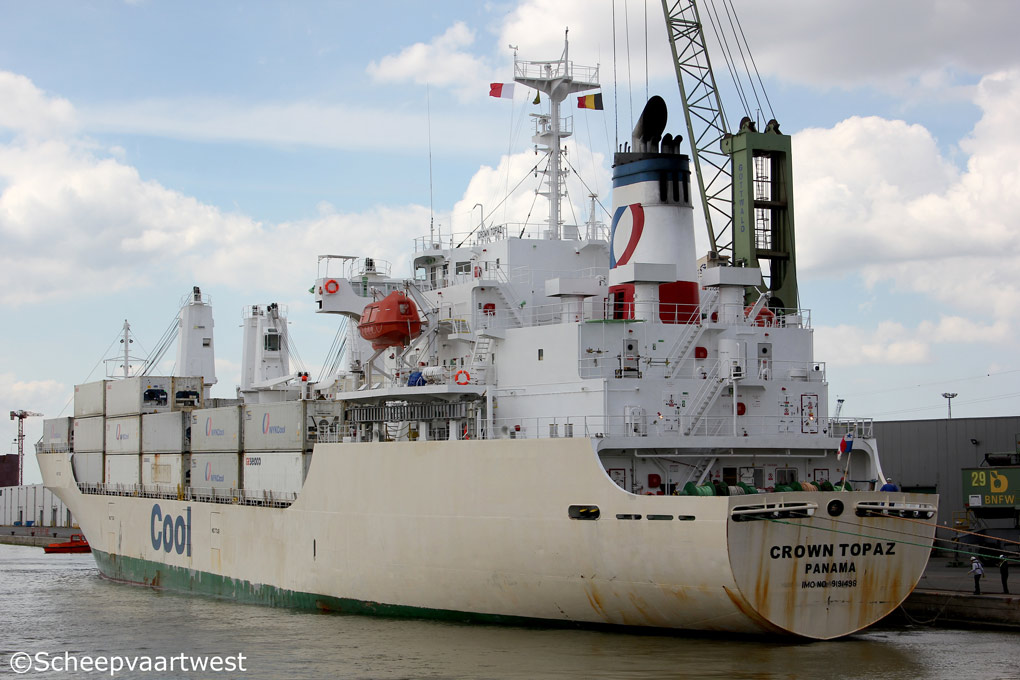

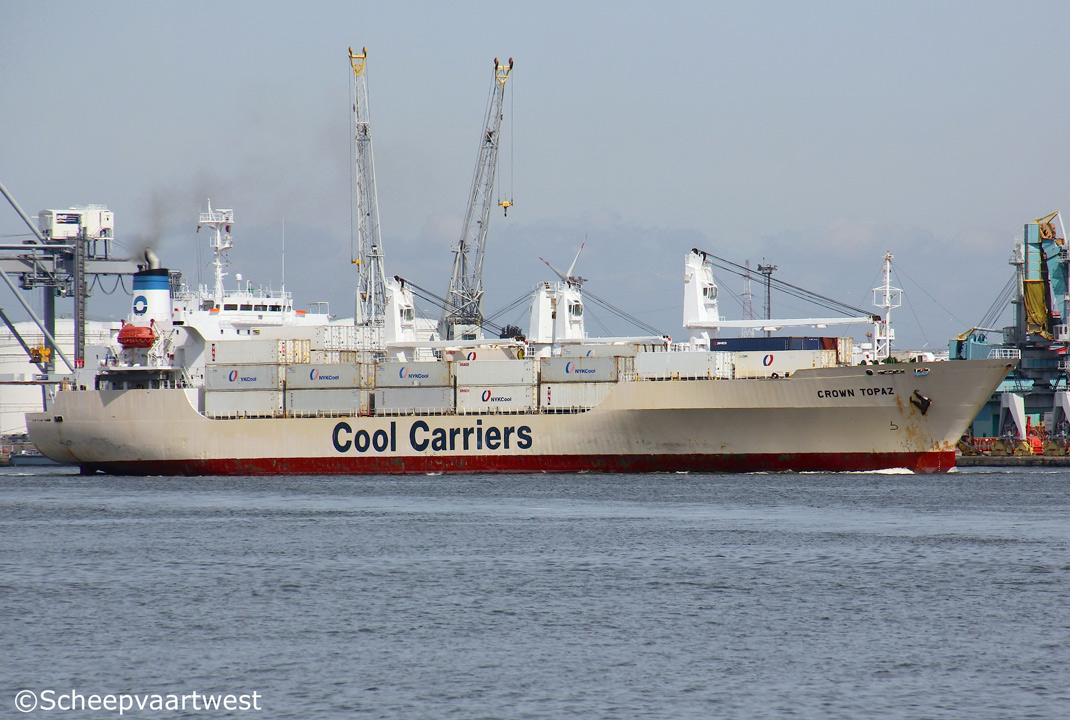

Crown Topaz 13   Crown Topaz 14   Crown Topaz 17
Antwerpen 27/04/15 Antwerpen 07/08/17   Westerschelde 04/07/17



Name

CROWN TOPAZ

Type

Refrigerated cargo carrier

IMO-number

9191498

Call sign

C6DUF

Flag

Bahamas

Port of registry

Nassau

Previous flag

Republic of Panama, Panama City - Call sign: 3FAS9

GT

10.527 t

Suez: 11.427 t

DWT

Summer: 10.318 t

NT

5.406 t

Panama: 8.869 t

Suez: 9.326 t

Number of 20 ft containers

194

Number of 40 ft containers

104

Reefer plug

70

Length

151,99 m overall
139,40 m between perpendiculars
141,15 m registered

Breadth

23,00 m moulded

Moulded L x B x D

139,40 x 23,00 x 13,00 m

Registered L x B x D

141,15 x 23,00 x 13,00 m

Draught

Summer: 8,70 m

Freeboard

Summer: 4.363 mm

Depth

13,00 m

Speed

Service: 21,0 knots

Trial: 22,8 knots

Built

1999

Keel laid

11/06/1998

Launch date

03/10/1998

First movement

13/01/1999

Builder

Iwagi Zosen Co. Ltd.
Iwagi
Ochi
Japan

Yard number

180

Hull type

Single hull

Bulkheads

6x Watertight

Main engine

1x Mitsubishi 6UEC60LSII - 2 stroke single acting 6 cylinders 600 x 2.300 mm diesel engine - 11.915 kW / 16.200 hp at 105,0 rpm

Builder: Mitsubishi Heavy Industries Ltd., Kobe - Japan

Number of screws

1x Fixed propeller

Boiler

1x Auxiliary vertical boiler - 7,9 bar
Evaporation: 3,00 t/h
Manufacturer: Miura Co. Ltd.

Generators

5x Diesel generatorsets 4.310 kVA

Cargo capacity

547.693 ft³ / 15.509 m³

Deck area

6.226 m²

Hatch covers

4

13,00 x 7,80 m each

Holds / Compartments

4 / 16

Temp min / max

-30 / 15°C

Tank capacities

Water Ballast: 922 m³

Bunker: 1.701 t
Fresh water: 381 m³

Fuel oil:1.805 m³

Cargo gear

2x Cranes - SWL 35,0 t each
2x Cranes - SWL 8,0 t each

Manager

Shoei Kisen Kaisha Ltd.
4-52, Kora-cho 1-chome
Imabari Ehime
Japan

Operator

Cool Carriers AB
Sveavägen 17
SE-111 57 Stockholm
Sweden

Previous operator

NYK Cool

Latest data adjustment

26 April 2018
