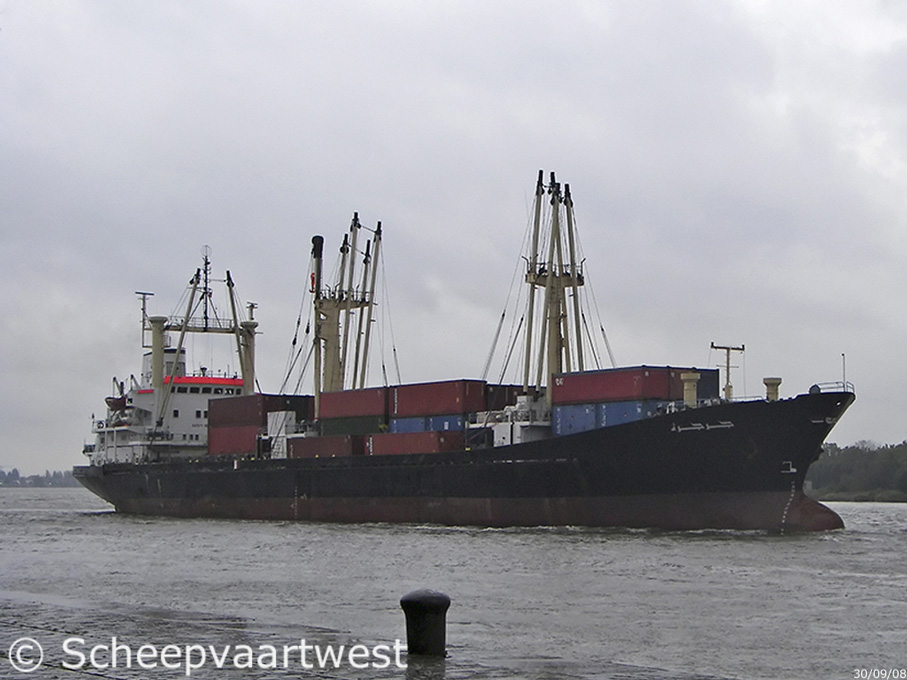

| Antwerpen 30 September 2008 |
 |

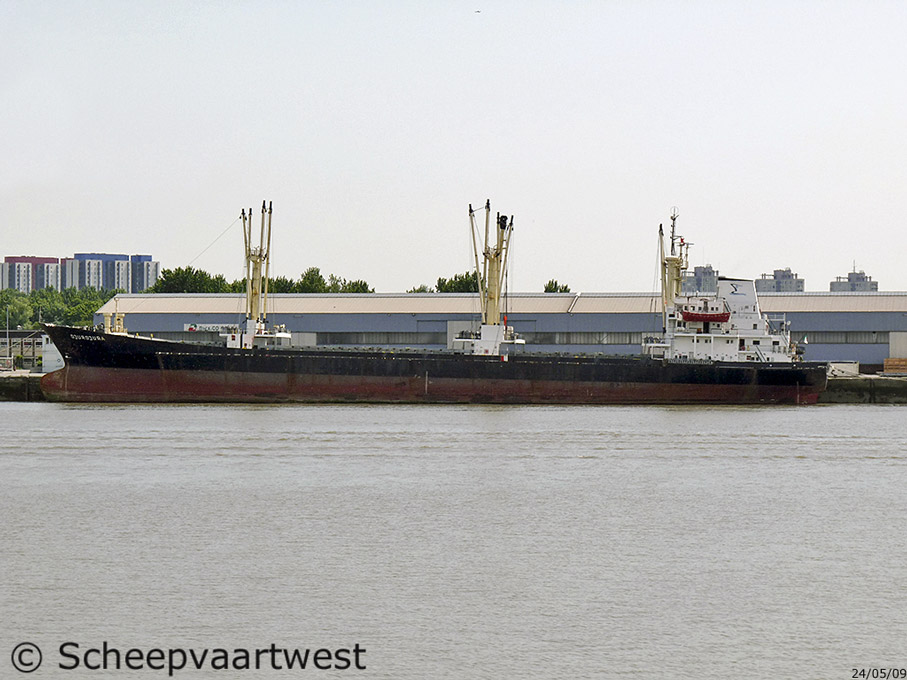

| Antwerpen 24/05/09 |
|
Name |
DJURDJURA |
|
Type |
General cargo |
|
IMO-number |
7420211 |
|
Call sign |
7TGW |
|
Flag |
Algeria |
|
Port of registry |
Algiers |
|
GT |
5.389 t |
|
DWT |
8.190 t |
|
NT |
3.471 t |
|
Number of 20ft containers |
254 |
|
Length |
126,45 m overall 117,20 m between perpendiculars 117,70 m registered |
|
Breadth |
17,20 m overall |
|
Draught |
Summer: 7,352 m |
|
Forecastle |
8,45 m |
|
Freeboard |
2.570 mm |
|
Depth |
9,92 m moulded |
|
Speed |
15,0 knots |
|
Built |
1976 |
|
Keel laid |
31.05.1976 |
|
Launch date |
24.09.1976 |
|
Date of completion |
12.1976 |
|
Builder |
Neue Schlichting Werft GmbH |
|
Yard number |
1388 |
|
Hull type |
Double hull Double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
2 |
|
Main engine |
1x Krupp MaK 8 MU 551 AK - 4 stroke single acting 8 cylinder 450 x 550 diesel engine - 3.678 kW Built: 1976 Builder: Krupp MaK Maschinenbau GmbH Kiel - Germany |
|
Number of screws |
1x Solid propeller - aft |
|
Shaft generator |
1x 735 kVA |
|
Generators |
2x Main diesel generatorsets each 290 kVA 1x Main diesel generatorset 155 kVA |
|
Compressed air Receivers |
2x Receivers each 1.750 litres - 30,0 bar 1x Receiver 125 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Cargo capacity |
Bale: 11.553 m³ Grain: 12.290 m³ |
|
Tank capacities |
Water ballast: 1.530 m³ Bunker: 764 t Fuel oil 764 m³ |
|
Largest hatch |
Length: 25,99 m |
|
Lifting equipment |
10x Derricks SWL - 10,0 t |
|
Anchor equipment |
3x Anchors, weight each 2.850 kg Chain length: 495,00 m |
|
Manager |
SNTM CNAN |
|
Owner |
CNAN - Nord S.P.A. |
|
Scrapped |
04.2015 Aliaga - Turkey |
|
Latest data adjustment |
20 April 2015 |
