| Antwerpen 23 July 2010 |
 |
 |
|
| Antwerpen 23/07/10 | Antwerpen 23/07/10 |
|
Name |

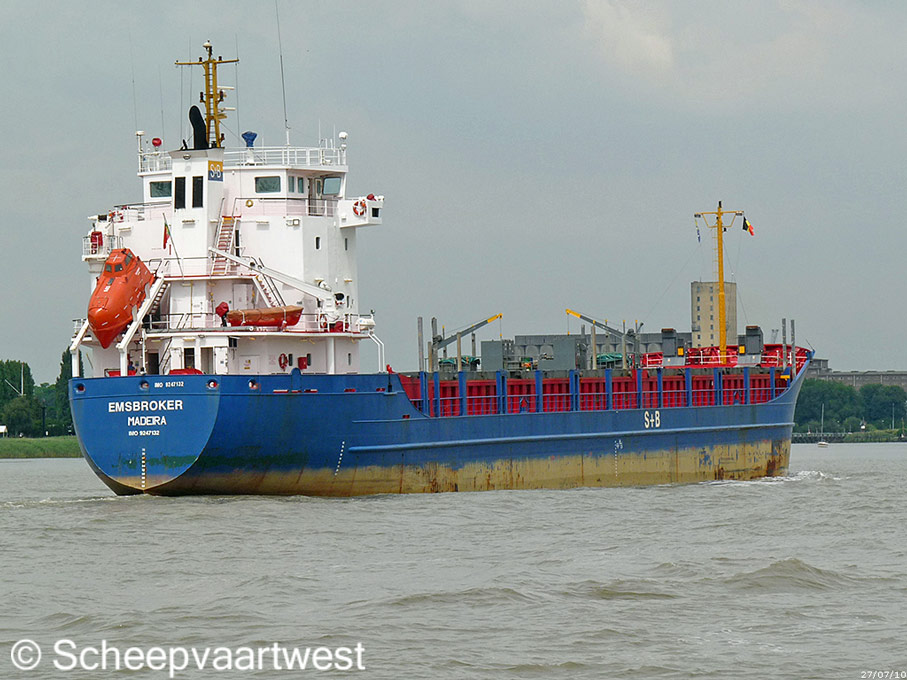

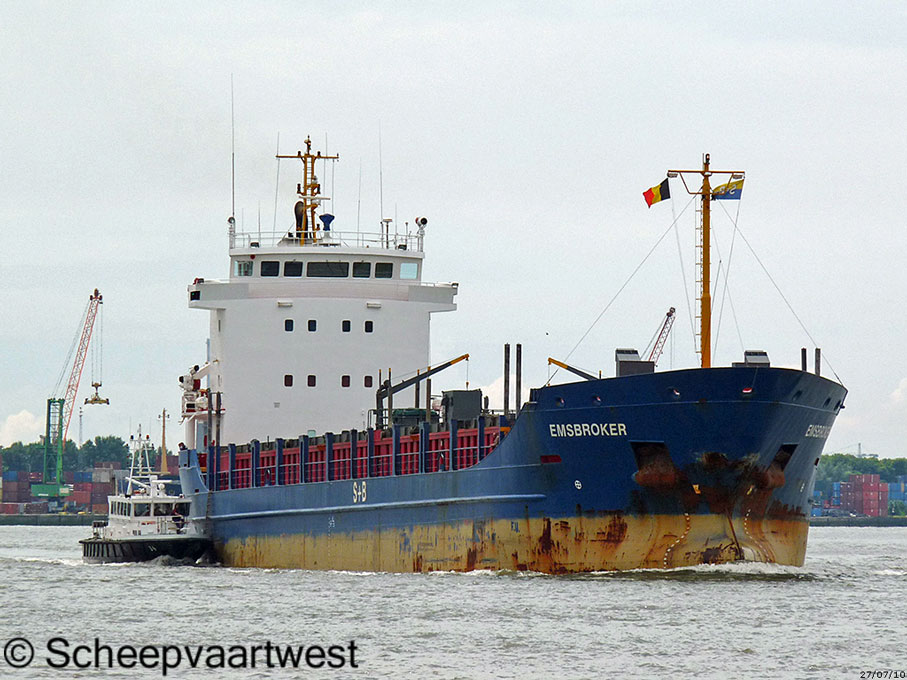

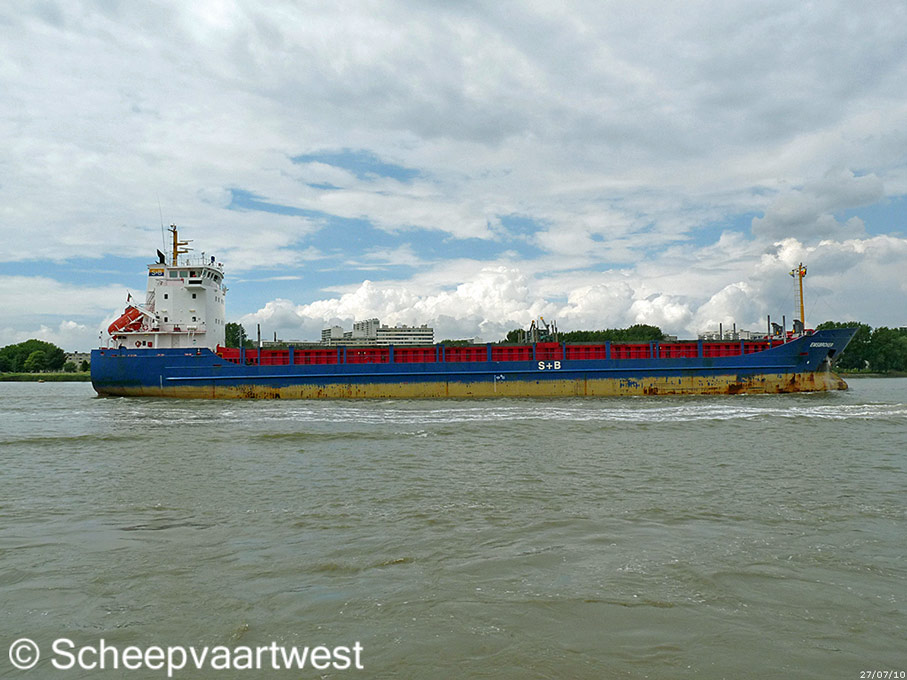

EMSBROKER |
|
Previous names |
Launch as: Lingestroom 21.10.2002 - 2005 Normed Bremen 20.04.2005 - 2006 Alexander 16.01.2006 Emsbroker |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9247132 |
|
MMSI-number |
255801950 |
|
Call sign |
CQPB |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
GT |
4.183 t |
|
DWT |
5.917 t |
|
NT |
2.164 t |
|
Number of 20ft containers |
325 |
|
Length |
109,19 m overall 102,98 m registered |
|
Breadth |
15,00 m registered |
|
Draught |
6,19 m |
|
Forecastle |
7,28 m |
|
Poop |
14,40 m |
|
Freeboard |
2.125 mm |
|
Depth |
8,30 m moulded |
|
Speed |
12,0 knots |
|
Built |
2002 |
|
Keel laid |
20.12.2000 |
|
Launch date |
15.02.2002 |
|
Date of completion |
24.10.2002 |
|
Builder casco |
Zaliv Shipyard Yard number: 01205 |
|
Outfitting yard |
IHDA Shipbuilding Service B.V. Yard number: 205 |
|
Yard number |
205 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
2 |
|
Main engine |
1x MAK 6 M 32 C - 4 stroke single acting 6 cylinder diesel 320 x 480 mm engine - 2.880 kW / 3.915 bhp at 600 rpm Year of manufacture: 2002 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propeller |
1x Controllable pitch propeller- aft at 175 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 16,5 m² Year of manufacture: 2002 Manufacturer: MP Rohrverformungstechnik GmbH 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 69,0 m² Year of manufacture: 2002 Manufacturer: Siempelkamp Energie- und Anlagentechnik GmbH & Co. KG |
|
Electric installations |
1x Plant 440/220 V - 426 kVA 1x Plant 440 V - 505 kVA 1x Plant 440 V - 131 kVA |
|
Shaft generator |
1x 505 kVA |
|
Generators |
2x Main diesel generatorsets each 213 kVA |
|
Emergency generator |
1x Diesel generatorset 131 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar 1x Receiver 125 litres - 8,0 bar |
|
Bow thruster |
1x Variable pitch propeller LIPS - 400 kW, forward |
|
Cargo capacity |
Grain: 8.000 m³ |
|
Tank capacities |
Fuel oil: 574 m³ Ballast water: 2.539 m³ |
|
Largest Hatch |
Length: 26,70 m Breadth: 12,70 m |
|
Anchor equipment |
3x Anchors weight each 2.850 kg Chain length: 495,00 m |
|
Crew size |
10 |
|
Manager |
Phoenix Reederei Bereederungs GmbH & Co. KG |
|
Operator |
Schulte & Bruns GmbH & Co. KG |
|
Owner |
MS "PHOENIX CRUISER" Schiffahrts GmbH & Co. KG |
