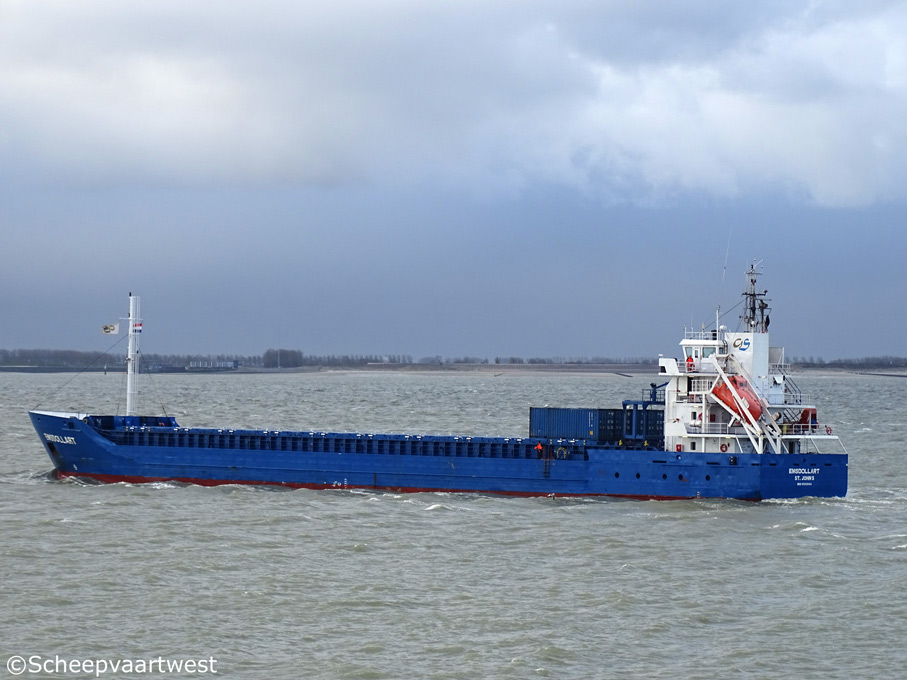

Westerschelde 10 February 2016 |
 |
 |
 |
 |
 |
||||

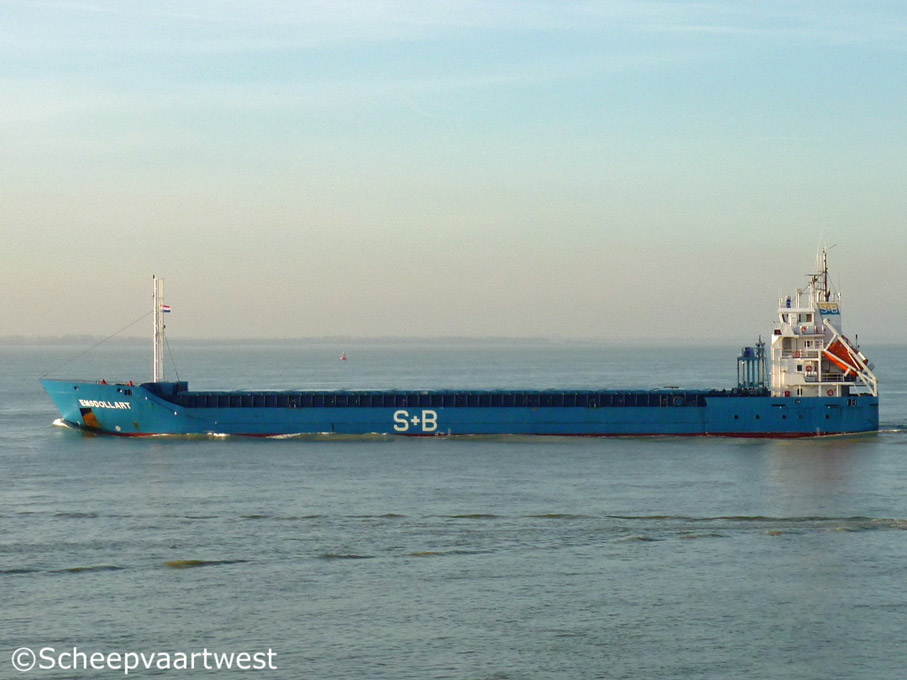

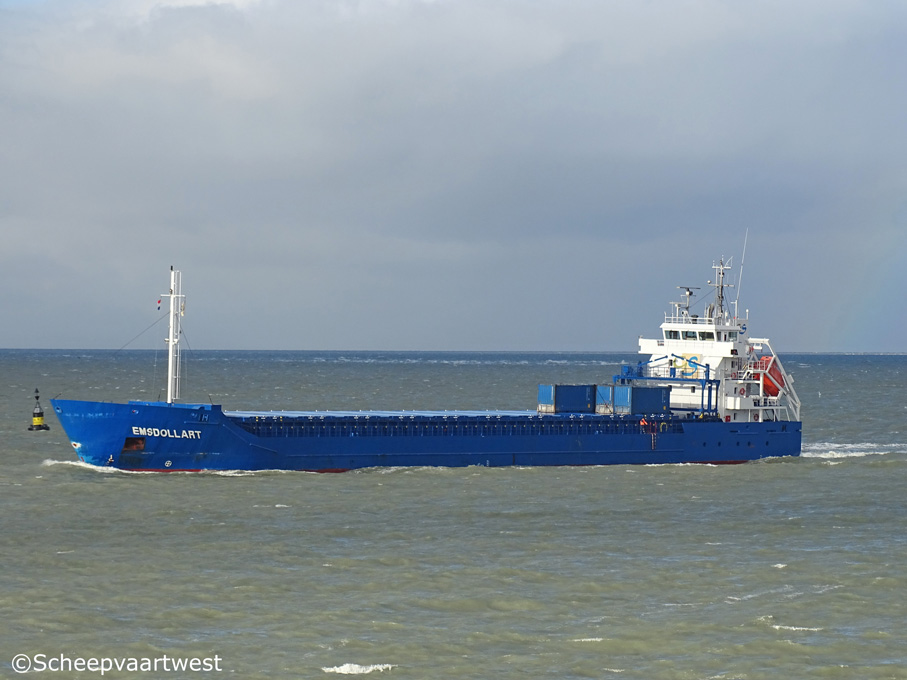

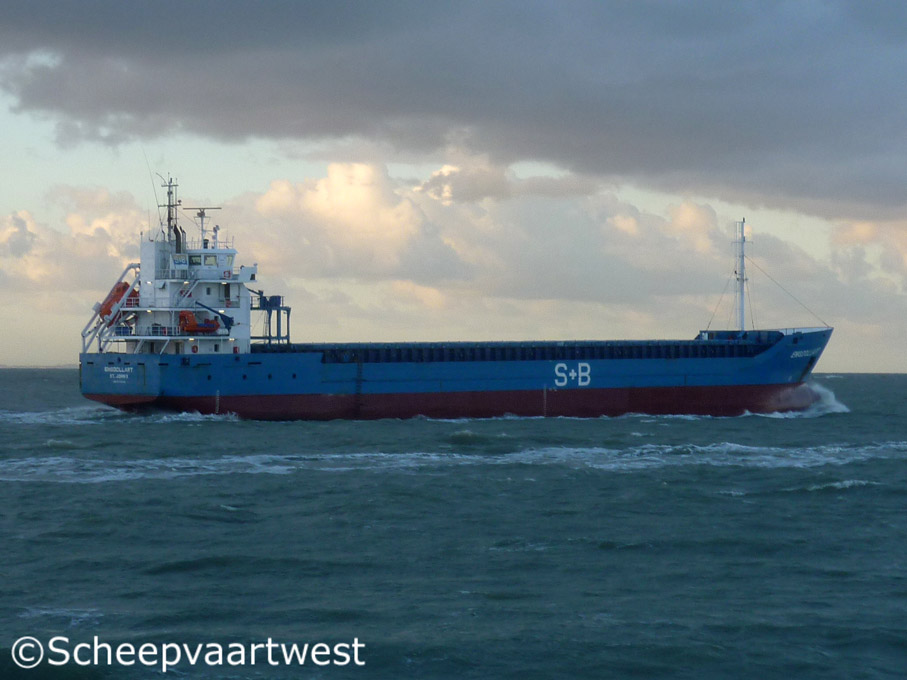

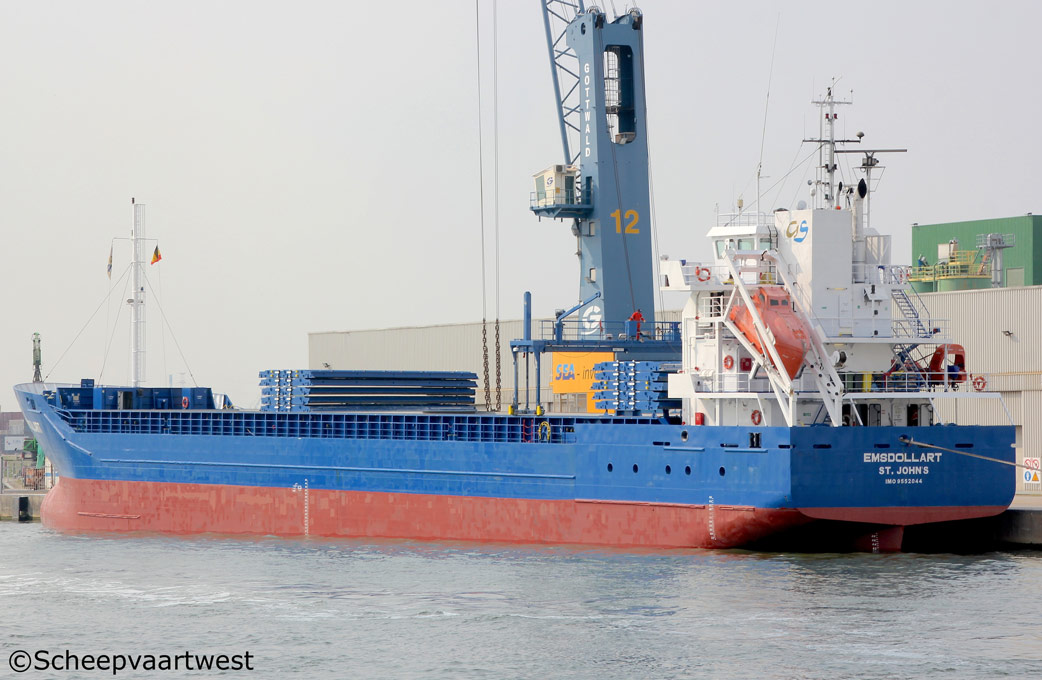

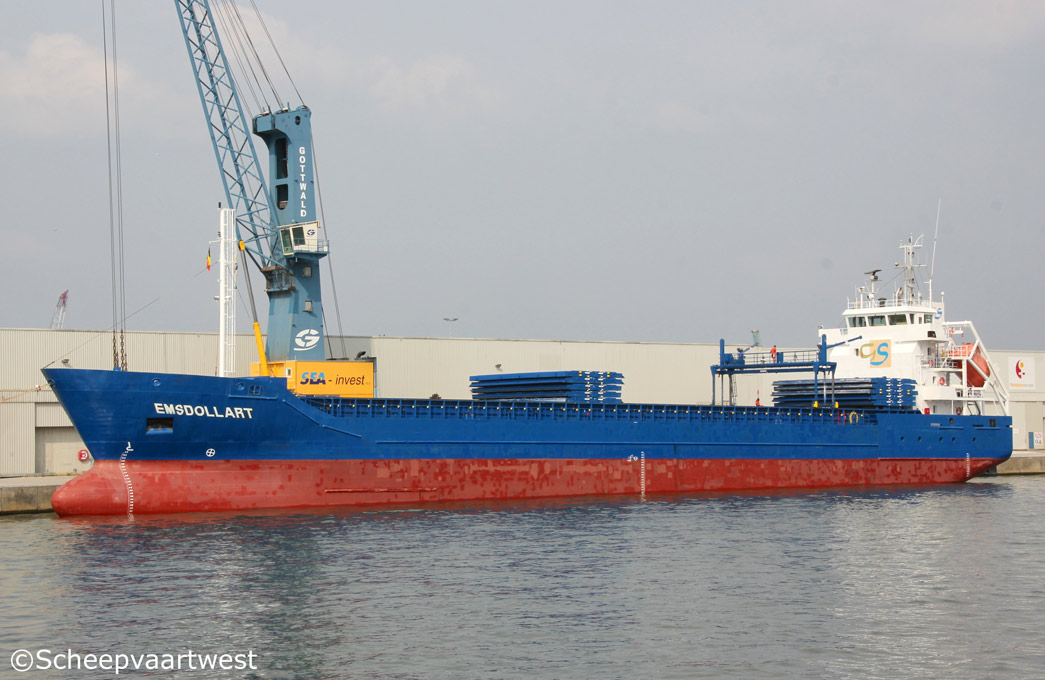

| Westerschelde 10/02/16 | Westerschelde 10/12/11 | Westerschelde 16/01/12 | Antwerpen 26/05/16 | Antwerpen 26/05/16 |
|
Name |
EMSDOLLART |
|
Previous names |
2011 - 30.04.2011 Grona Farmsum |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Gearless box - Single decker |
|
IMO-number |
9552044 |
|
Call sign |
V2FL3 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
3.500 t |
|
DWT |
Summer: 5.233,2 t |
|
NT |
1.382 t |
|
Container intake |
188 x 20 ft of which 80 on deck |
|
Length |
99,48 m overall 92,36 m between perpendiculars |
|
Breadth |
13,68 m extreme 13,34 m moulded |
|
Draught |
6,16 m fully load |
|
Depth |
9,10 m |
|
Speed |
10,0 knots |
|
Built |
2011 |
|
Keel laid |
18.12.2008 |
|
Launch date |
23.01.2011 |
|
Delivery date |
31.03.2011 |
|
Builder |
Western Marine Services Ltd. |
|
Yard number |
928/04 |
|
Hull material |
Steel |
|
Moveable bulkheads |
2 |
|
Main engine |
1x Caterpillar MaK 6M25C - 6 cylinder diesel engine 2.000 kW / 2.719 bhp |
|
Propeller |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired (Central heating Boiler) type Compact A 200 |
|
Generators |
2x 74.475 CTAG-4V diesel generatorsets |
|
Emergency / harbour gen. |
1x Sisu 49.548DTG diesel generatorset |
|
Number of holds |
1 61,80 x 11,20 x 9,60 m |
|
Hold capacity |
Grain/Bale: 234.629 ft³ / 6.646 m³ |
|
Number of hatches |
1 61,80 x 11,20 m |
|
Hatch cover type |
Pontoon hatch covers |
|
Max. permitted loads |
Tan top: 15,0 t/m² Hatch covers: 1,75 t/m² |
|
Anchor chain |
Length: 467,50 m Diameter: 36 mm |
|
Manager |
Grona Shipping GmbH & Co. KG |
|
Operator |
Schulte & Bruns GmbH & Co. KG |
|
Register owner |
MS "GRONA FARMSUM" GmbH & Co. KG |
|
Latest data adjustment |
27 February 2016 |
