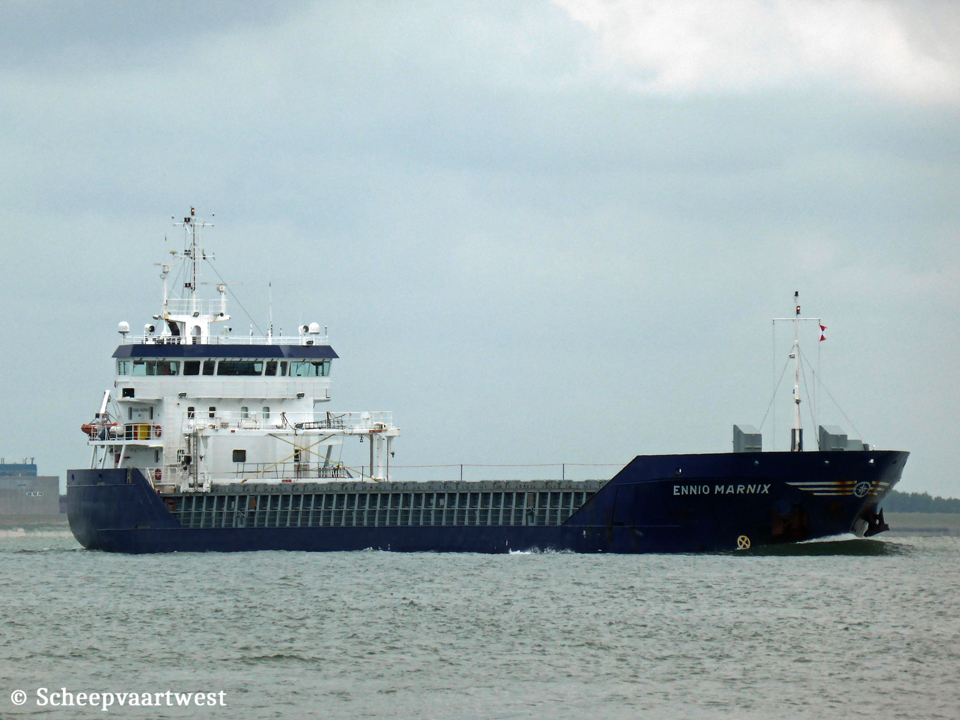

| Westerschemde 19 June 2015 |
 |
 |
|

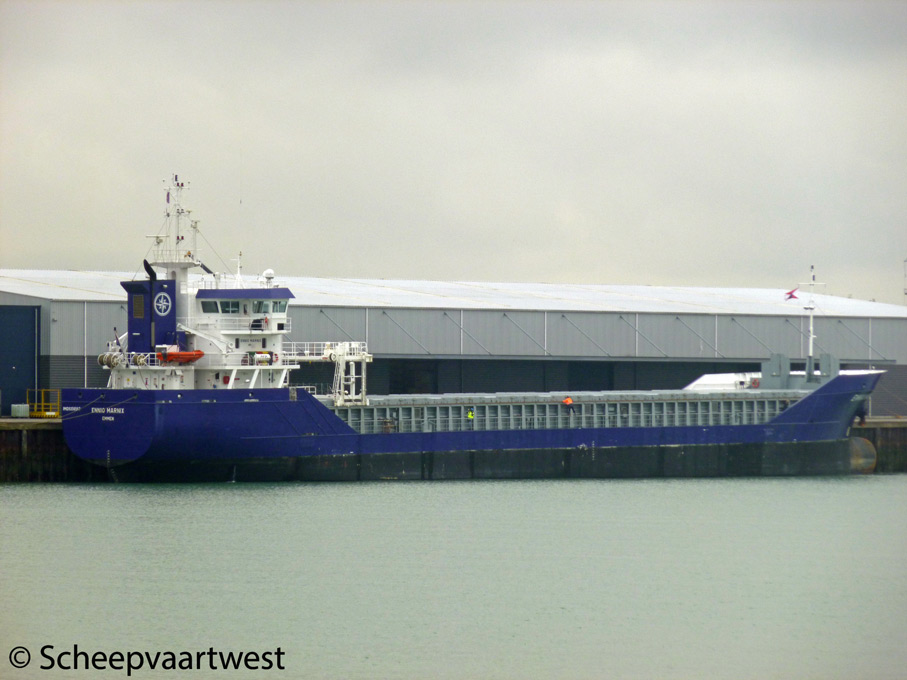

| Vlissingen 25/10/12 | Brugge, Belgium 27/06/11 | |
|
Name |
ENNIO MARNIX |
|
Type |
General cargo - Heavycargo - Container ship Single deck |
|
IMO-number |
9356567 |
|
Call sign |
PCJX |
|
Flag |
The Netherlands |
|
Port of registry |
Emmen |
|
GT |
2.999 t |
|
DWT |
4.550 t |
|
DWCC |
Summer: 4.250 t |
|
NT |
1.662 t |
|
Number of 20ft containers |
106 |
|
Length |
89,95 m overall 84,98 m between perpendiculars |
|
Breadth |
14,40 m moulded |
|
Draught |
Summer: 5,83 m |
|
Freeboard |
1.532 mm |
|
Depth |
7,35 m to main deck |
|
Speed |
11,5 knots |
|
Built |
2011 |
|
Keel laid |
30/09/2007 |
|
Launch date |
17/12/2007 |
|
Date of completion |
17/03/2011 |
|
Builder hull |
Hangzhou Dongfeng Shipbuilding Company Ltd., Hangzhou China |
|
Builder completion |
Scheepswerf Bijlsma Lemmer BV Sluisweg 13-16 8531 DJ Lemmer The Netherlands |
|
Yard number |
756 |
|
Hull material |
Steel |
|
Hull type |
Double skinned |
|
Watertight compartments |
4 |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6L26A2 - 4 stroke single acting 6 cylinder 260 x 320 mm combustion engine 1.860 kW / 2.527 hp at 900 rpm Builder: Wärtsilä Italia Spa |
|
Propelling system |
1x Controllable pitch propeller 4 Blades |
|
Boilers |
1x CHO 9,90 m² / 10,0 bar x1 CHR 26,00 m² / 10,0 bar |
|
Generators |
2x Diesel engines each 188 kW / 204 hp connected with Stamford generators HCM 434D each 235 kVA |
|
Bow thruster |
1x Omega VB-960m - 250 kW at 1.500 rpm |
|
Number of holds |
1x Fully box 63,00 x 11,60 x 8,39 m |
|
Cargo Hold capacity |
Bale & grain: 6.032 m³ / 214.000 ft³ |
|
Hold ventilation |
6x Air changes per hour basis empty hold The hold is fitted with dehumidifier system |
|
Number of hatches |
1 63,00 11,60 m |
|
Hatch cover type |
Coops Nieborg pontoon hatch covers |
|
Tank capacities |
HFO: 430,08 m³ MGO: 32,30 m³ Water ballast: 1.710,94 m³ Fresh water: 19,84 m³ |
|
Crew |
8 |
|
Manager |
Wagenborg Shipping B.V. Markstraat 10 9934 Delfzijl The Netherlands |
|
Owner |
Ennio Marnix Shipping CV Delfzijl The Netherlands |
|
Shareholder |
Gerhard E. de Jonge Kanaal A n.z. 39A 7881 KH Emmer Compascuum The Netherlands |
|
Renamed |
05/2017 Cederborg Netherlands, Delfzijl - Call sign: PCJX Manager: Wagenborg Shipping B.V., Delfzijl - The Netherlands Owner: Cederborg B.V., Delfzijl - The Netherlands |
|
Latest data adjustment |
17 July 2024 |
