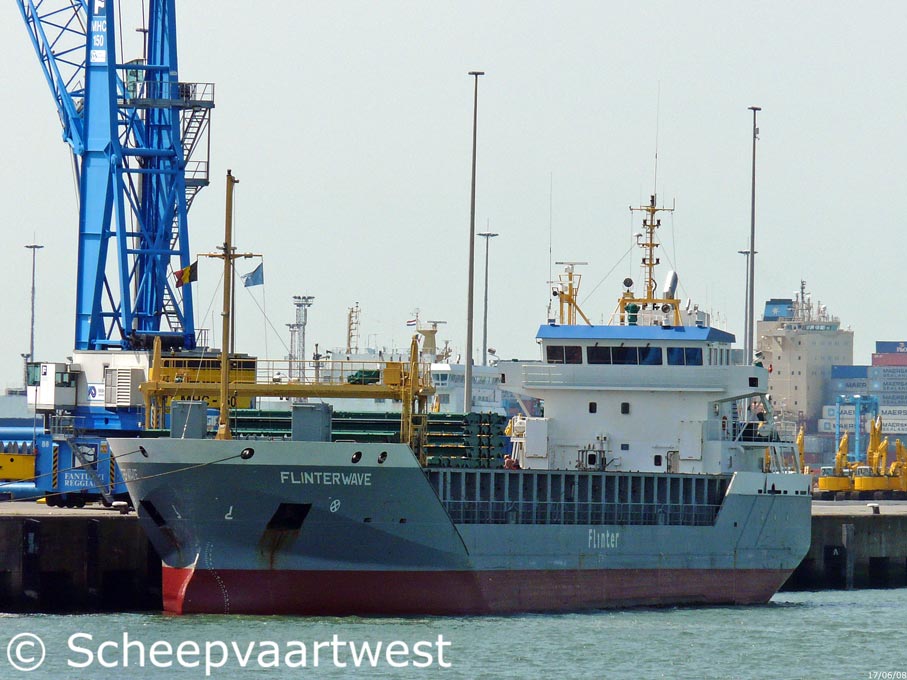

| Zeebrugge 17 June 2008 |
|
Name |
FLINTERWAVE |
|
Type |
General Cargo - Containership |
|
IMO-number |
9313785 |
|
Call sign |
PHBZ |
|
Flag |
The Netherlands |
|
Port of registry |
Haren |
|
GT |
2.999 t |
|
DWT |
Summer: 4.500 t |
|
NT |
1.643 t |
|
Length |
89,78 m overall |
|
Breadth |
14,00 m over all |
|
Draught |
Summer: 5,95 m |
|
Freeboard |
1.561 mm |
|
Depth |
7,50 m |
|
Speed |
13,2 knots |
|
Built |
2004 |
|
Launch date |
23.10.2004 |
|
Date of completion |
26.11.2004 |
|
Builder |
B.V. Scheepswerf 'Ferus Smit' B.V. Hoogezand |
|
Yard number |
352 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK Caterpillar 8M32 - 4 stroke 8 cylinder 255 x 400 mm diesel engine - 3.587 hp / 2.640 kW at 750 rpm Built: 2004 Builder: Krupp MaK Maschinenbau Kiel - Germany |
|
Elec. propulsion generator |
1x 340kW - 450V |
|
Number of screws |
1x Screw propeller controllable pitch at 200 rpm |
|
Electrical installation |
Power voltage: 400 V Lighting voltage: 230 V Frequency: 50 Hz |
|
Generators |
2x Diesel generatorsets each 290 kVA - 232 kW - 332 hp |
|
Cargo holds |
1 Total: 5.976 m³ |
|
Hatchways |
1 59,40 x 11,50 m |
|
Tank capacities |
Bunker: 233 t |
|
Crew |
8 |
|
Manager |
Forest Wave Navigation B.V. |
|
Shipping company |
C.V. Scheepsvaartonderneming Flinterwave |
|
Owner |
Wave BV C.V. Scheepsvaartonderneming Flinterwave |
