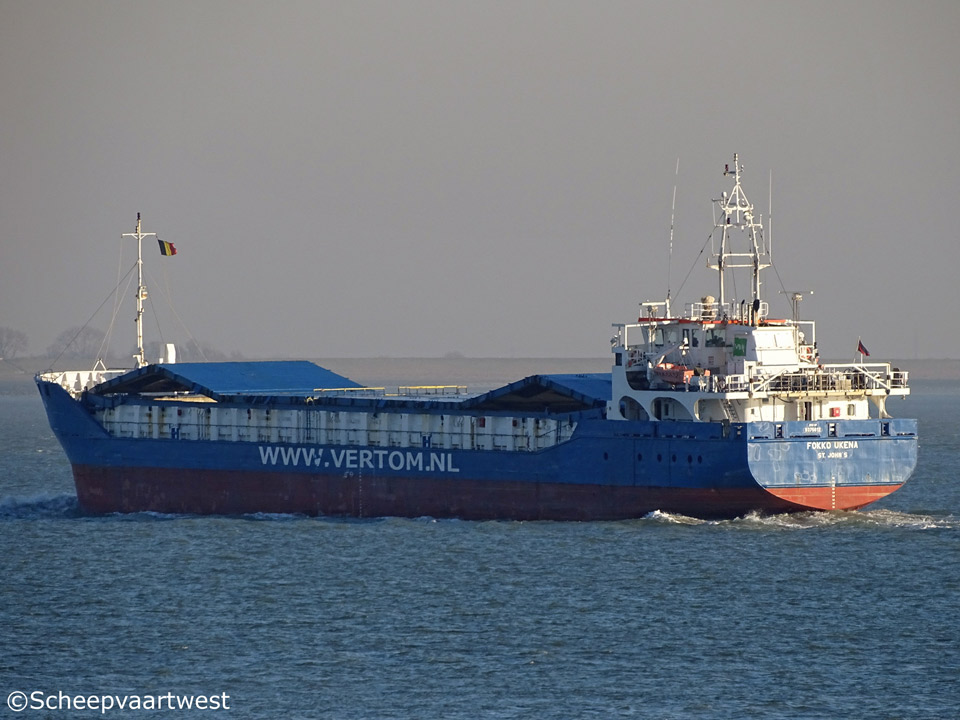

Westerschelde 26 April 2017 |
 |
 |
 |
 |
|||

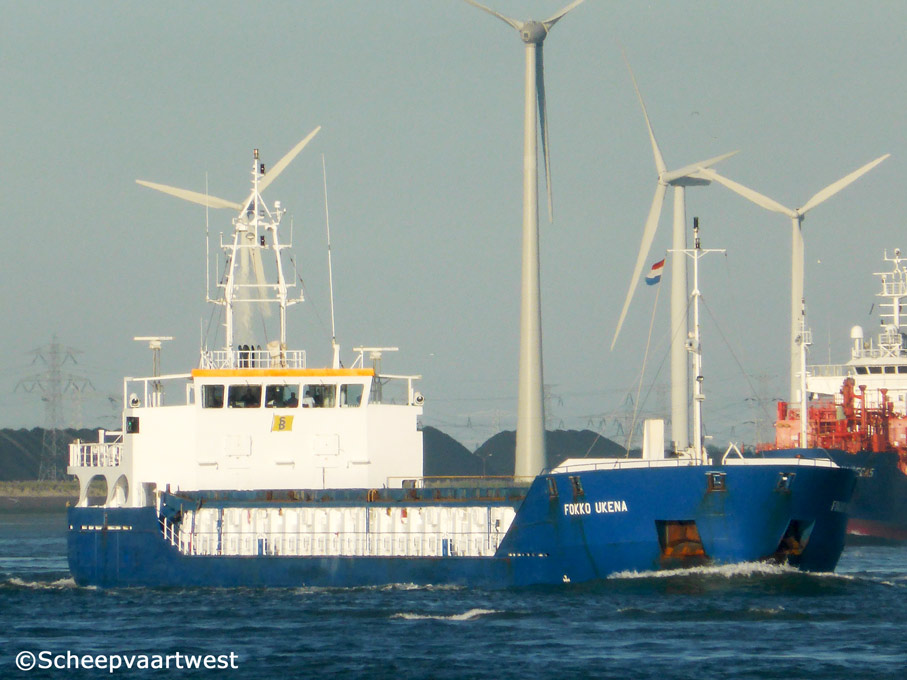

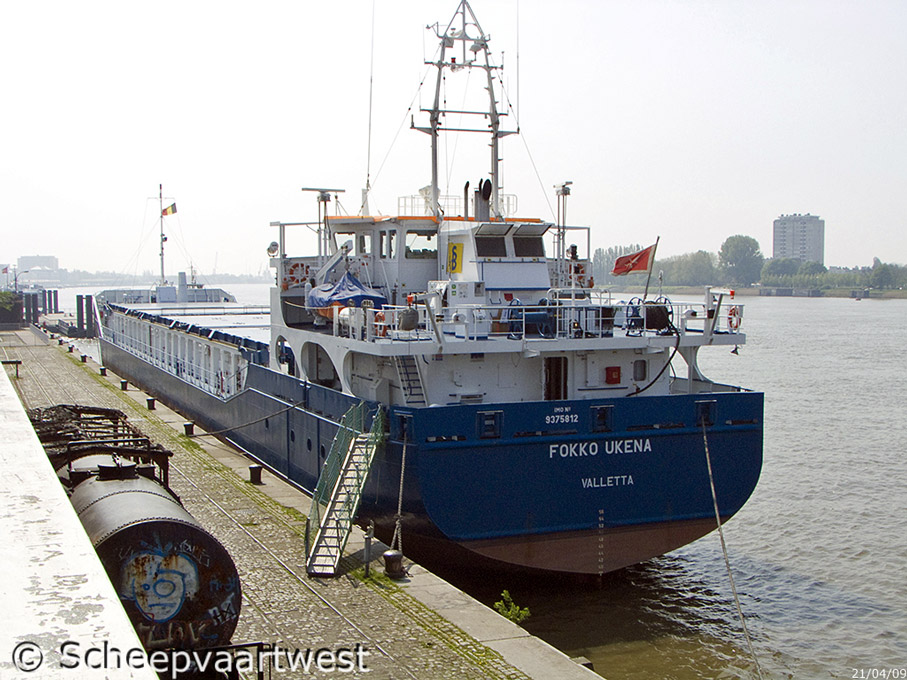

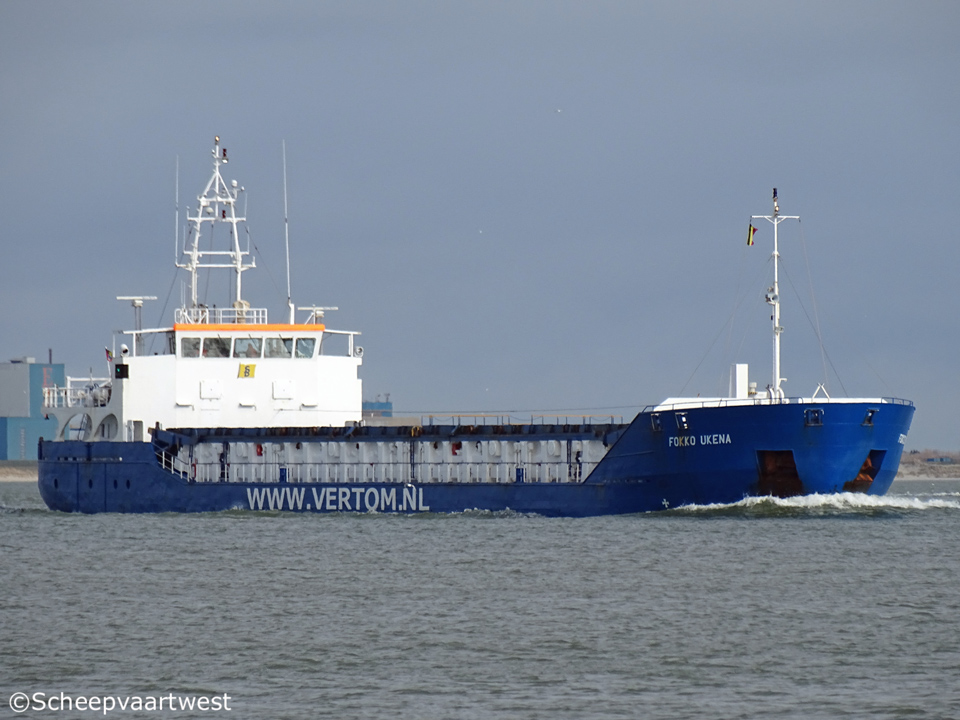

| Westerschelde 23/03/16 | Westerschelde 12/06/14 | Antwerpen 21/04/09 | Westerschelde 19/01/17 | |||
|
Name |
FOKKO UKENA |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo - Box sid |
|
IMO-number |
9375812 |
|
Call sign |
V2GU3 |
|
Flag |
Antigua & Barbuda |
|
Call sign |
St. John's |
|
Port of registry |
Valletta |
|
Previous flags |
Malta, Valletta - Call sign: 9HYA8 |
|
GT |
2.451 t |
|
DWT |
Summer: 3.627 t |
|
DWCC |
Summer: 3.500 t Winter: 3.400 t |
|
NT |
1.033 t |
|
Number of 20ft containers |
20 TEU on hatch 2 |
|
Length |
88,30 m overall 84,60 m between perpendiculars 85,29 m registered |
|
Breadth |
12,40 m extreme |
|
Draught |
Summer: 5,14 m Winter: 4,97 m |
|
Air draft |
23,62 m keel/mast 15,50 m mast down |
|
Forecastle |
6,42 m |
|
Quarterdeck |
16,20 m |
|
Freeboard |
1.600 mm |
|
Depth |
6,69 m moulded |
|
Speed |
Service: 10,5 knots Max.: 13,0 knots |
|
Built |
2007 |
|
Keel laid |
15/12/2004 |
|
Launch date |
05/04/2005 |
|
Date of completion |
31/05/2007 |
|
Builder |
Slovenske Lodenice Komarno A.S. Rolnickej Skoly 1519 945 01 Komarno Slovak Republic |
|
Yard number |
2106 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Double bottom, continuous from peak to peak bulkhead |
|
Movable bulkheads |
2x Movable bulkheads in 9 different positions making 4 different compartments |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6 L20 - 4 stroke single acting 6 cylinder 200 x 280 mm combustion engine 1.125 kW / 1.530 hp at 1.000 rpm Year of manufacture: 2006 Manufacturer: Wärtsilä Oy Helsinki - Finland |
|
Number of screws |
1x Fixed pitch propeller - aft |
|
Boiler |
1x Water heater, oil fired - 5,0 bar Year of manufacture : 2006 Manufacturer: ACV Nederland B.V. |
|
Electric Installations |
1x 400 V - 330 kVA 1x 400 V - 116 kVA 1x 400 V - 80 kVA |
|
Shaft generator |
1x 116 kVA |
|
Generators |
1x Sisu 645 DSBIG main diesel generator 210 kVA 1x Sisu 620 DSRG main diesel generator 120 kVA |
|
Emergency generator |
1x Sisu 420 DSRG diesel generatorset 80 kVA |
|
Bow thruster |
1x Transverse thruster - 130 kW, forward |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar 1x Receiver 10 litres - 30,0 bar |
|
Number of cargo holds |
2x Each fully box shaped 1x 25,20 x 10,10 x 7,77 m 1x 31,75 x 10,10 x 7,77 m |
|
Total hold capacity |
159.444 ft³ / 4.515 m³ Hold 1: 70.558 ft³ / 1.998 m³ Hold 2: 88.886 ft³ / 2.517 m³ |
|
Number of hatch |
2 Hatch 1: 25,20 x 10,10 m Hatch 2: 31,75 x 10,10 m |
|
Hatch type |
Mc Gregor hydraulic folding type |
|
Max? Permitted loads |
Tanktop : 15,0 t/m² hatch covers: 1,6 t/m² |
|
Tank capacities |
Fuel oil: 165 t Freshwater: 24 t |
|
Anchor equipment |
3x Anchors weight each 1.590 kg Chain length: 412,50 m Diameter: 30 mm |
|
Ventilation |
6 air changes per hour (basis empty hold) |
|
Cargo gear |
None |
|
Crew size |
7 |
|
Manager |
Vertom-Bojen Bereederungs GmbH & Co. KG Borgwardring 80 26802 Moormerland Federal Republic of Germany |
|
Registered owner |
Vertom-Bojen Schiffahrts MS "FOKKO UKENA" Borgwardring 80 26802 Moormerland Federal Republic of Germany |
|
Latest data adjustment |
26 February 2023 |
