| Westerschelde 14 December 2011 |
 |
 |
|
| Westerschelde 14/12/11 | Westerschelde 14/12/11 |
|
Name |

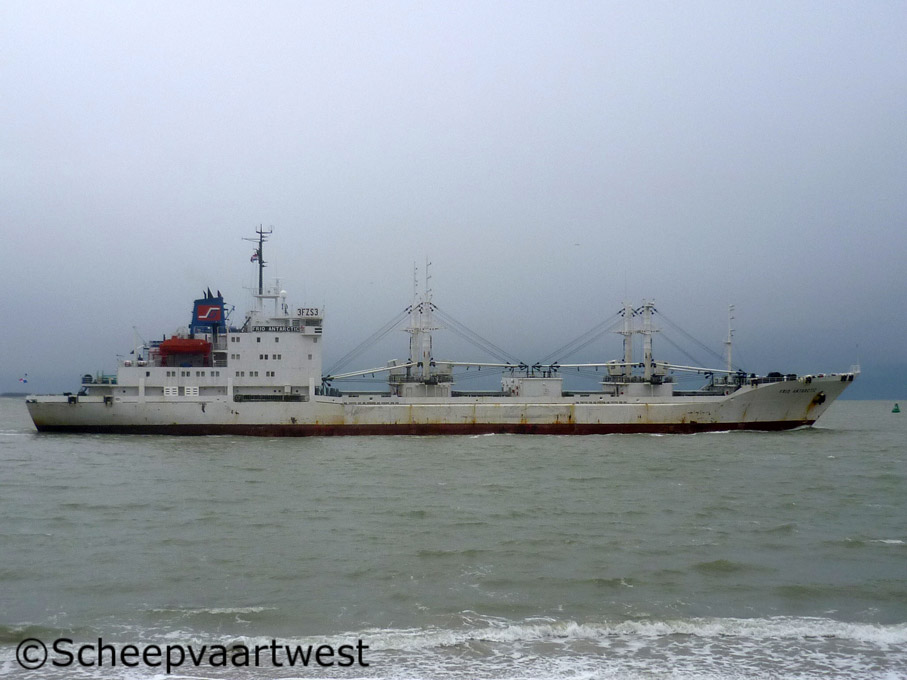

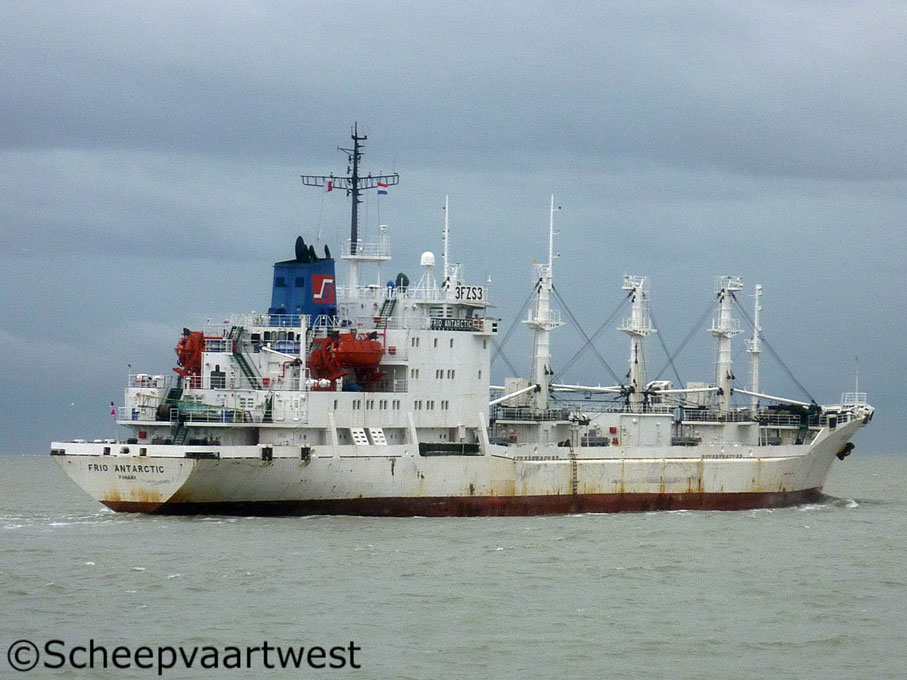

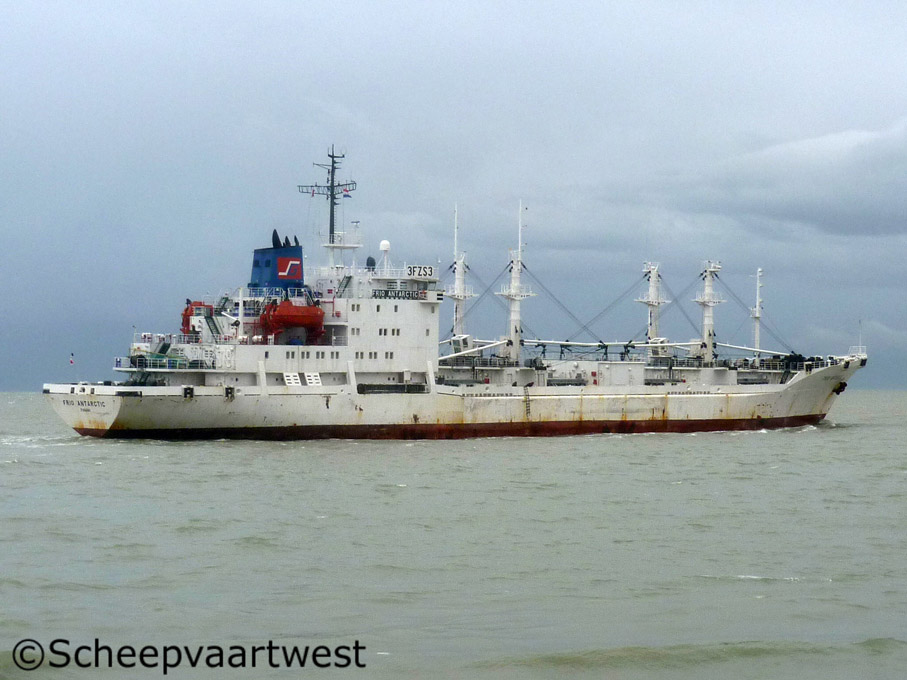

FRIO ANTARCTIC |
|
Type |
Refrigerated cargo ship - Equipped for carriage of containers |
|
IMO-number |
9076258 |
|
Call sign |
3FZS3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
6.964 t |
|
DWT |
6.715 t |
|
NT |
3.103 t |
|
Number of 20ft containers |
76 |
|
Length |
133,95 m overall 122,92 m registered |
|
Breadth |
18,00 m |
|
Draught |
7,887 m |
|
Forecastle |
17,02 m |
|
Depth |
10,70 m |
|
Speed |
15,0 knots |
|
Built |
1994 |
|
Keel laid |
04.1993 |
|
Launch date |
19.02.1994 |
|
Date of completion |
09.1994 |
|
Builder |
61. Kommunars Shipyard |
|
Yard number |
1140 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Main engine |
1x 6 DKRN 42/136-10 - 2 stroke 6 cylinder 420 x 1.360 mm diesel engine - 5.100 kW at 168 rpm Year of manufacture: 1992 Manufacturer: Bryansk Engineering Works |
|
Propeller |
1x Solid propeller - aft |
|
Boilers |
1x Steam boiler, oil fired - 7,5 bar Heating surface: 97,8 m² 1x Steam boiler, exhaust gas heated - 10,0 bar Heating surface: 150,0 m² Year of manufacture: 1993 Manufacturer: 61. Kommunars Shipyard |
|
Electric installations |
3x Plant 400/220 V - 688 kVA 1x Plant 400 V - 125 kVA |
|
Generators |
3x Main diesel generatorsets each kVA |
|
Emergency generator |
1x Diesel generatorset 125 kVA |
|
Compressed air receivers |
1x Receiver 130 litres - 60,0 bar 2x Receivers each 2.250 litres - 30,0 bar 1x Receiver 1.000 litres - 30,0 bar 1x Receiver 150 litres - 30,0 bar 1x Receiver 1.000 litres - 8,0 bar 1x Receiver 500 litres - 6,0 bar |
|
Number of holds |
12 |
|
Number of insulated holds |
8 |
|
Number of separate cooled holds |
8 |
|
Total capacity of holds |
7.500 m³ |
|
Floorspace |
2.960 m² |
|
Refrigerating machinery |
Temperature of insulated Spaces, min.: -30°C Temperature of Sea Water, max.: 32°C Builder: Sabroe Refrigeration A/S Marine Division |
|
Compressors |
3x Compressors model SAB 128 HF |
|
Evaporators / Condensers |
Number of air cooler: 16 Number of circulating fan: 58 Number of condenser: 3 Number of cooling water pump: 3 Number of liquid receiver: 3 Number of oil separator: 3 Number of refrigerating machinery room fan: 2 Refrigerant: R 22 Kind of cooling: Direct evaporation |
|
Ballast water |
516 m³ |
|
Anchor Equipment |
3x Anchors weight each 3.780 kg Chain length: 522,50 m |
|
Lifting equipment |
8x Derricks - SWL 5,0 t each |
|
Manager |
Seatrade Groningen B.V. |
|
Operator |
FSC Frigoship Chartering GmbH |
|
Owner |
Pareefers KS |
