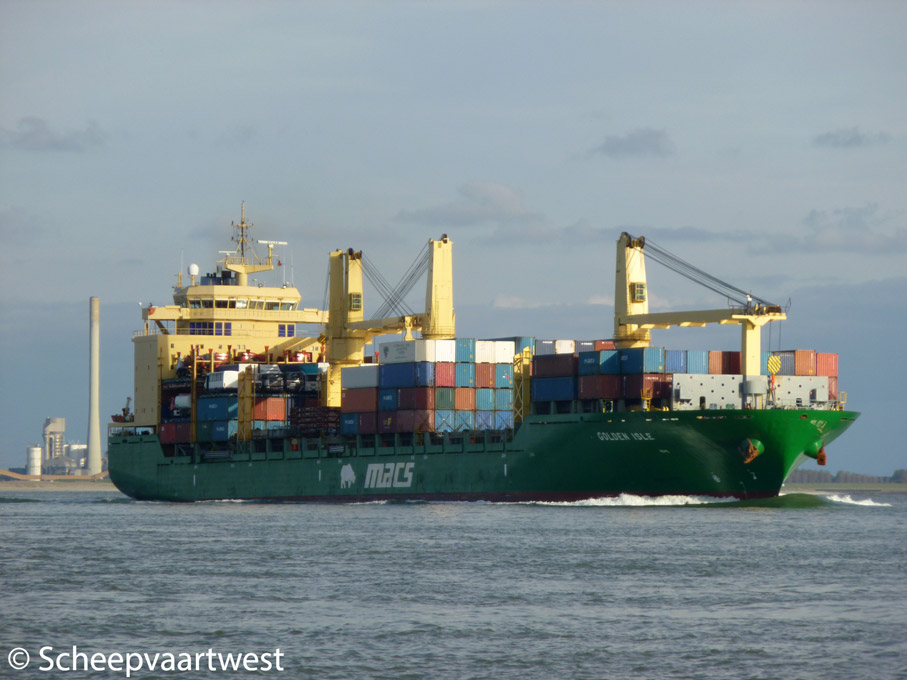

Golden Isle - IMO 9231107

Name

GOLDEN ISLE

Previous names

2002 - 06.2002 Steamers Progress

2002 - 03.2004 Cape Don

2004 - 10.2006 CCNI Shanghai

2006 - 08.2008 Tasman Voyager

2008 - 09.2009 Pacific Dream

Type

Multi-Purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9231107

Call sign

V7CZ4

Flag

Marshall Islands

Port of registry

Majuro

GT

23.132 t

DWT

30.537 t

NT

9.375 t

Number of 20ft containers

1.680

Length

192,90 m overall

183,56 m registered

Breadth

27,80 m registered

Draught

11,20 m

Forecastle

37,88 m

Poop

15,89 m

Freeboard

4.318 m

Depth

15,50 m moulded

Speed

19,0 knots

Built

2002

Keel laid

12.01.2001

Launch date

24.06.2001

Date of completion

26.02.2002

Builder

Xiamen Shipyard
11, Xiahe Road
Xiamen, Fujian Province
People's Republic of China

Yard number

439B

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

7

Continuous decks

2

Main engine

1x MAN-B&W 7S60MC-C - 2 stroke 7 cylinder 600 x 2.400 mm diesel engine - 15.785 kW at 105,0 rpm

Year of manufacture: 2000

Manufacturer: Hudong Heavy Machinery Co., Ltd.
2851, Pudong Dadao
200129 Shanghai
People's Republic of China

Propellers

1x Solid propeller (keyless), aft

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 19,0 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 175,0 m²

Year of manufacture: 2000

Manufacturer: Alfa Laval Qingdao Ltd.
86 Guangzhou Road North Jiaozhou
Qingdao ,266300 Shandong
People's Republic of China

Electric installation

2x Plants each 440/220 V - 1.137,5 kVA

1x Plant 440/220 V - 1.325 kVA

1x Plant 440 V - 212 kVA

Generators

1x MAN-B&W 7L23/30H diesel generatorset 1.325 kVA

2x MAN-B&W 6L23/30H diesel generatorsets each 1.137,5 kVA

Emergency generator

1x Diesel generatorset 212 kVA

Compressed air receivers

2x Receivers each 6.500 litres - 30,0 bar

1x Receiver 320 litres - 30,0 bar

2x Receivers each 250 litres - 10,0 bar

Bow thruster

1x Transverse thruster - 900 kW, forward

Tank capacities

Fuel oil: 2.908 m³

Ballast water: 12.586 m³

Anchor equipment

3x Anchors weight each 7.800 kg

Chain length: 632,50 m

Lifting device

2x Cranes each SWL 100 / 40 t

2x Cranes each SWL 50 t

Manager

Columbia Shipmanagement (Deutschland) GmbH
Große Elbstr. 275
22767 Hamburg
Federal Republic of Germany

Operator

MACS Maritime Carrier Shipping
GmbH & Co.
Große Elbstraße 138
22767 Hamburg
Germany

Owner

Columbia Shipmanagement Deutschland
Hamburg
Germany

Registered owner

MS ''CAPE DON'' Schiffahrts GmbH & Co. KG
Anckelmannsplatz 1
20537 Hamburg
Federal Republic of Germany
