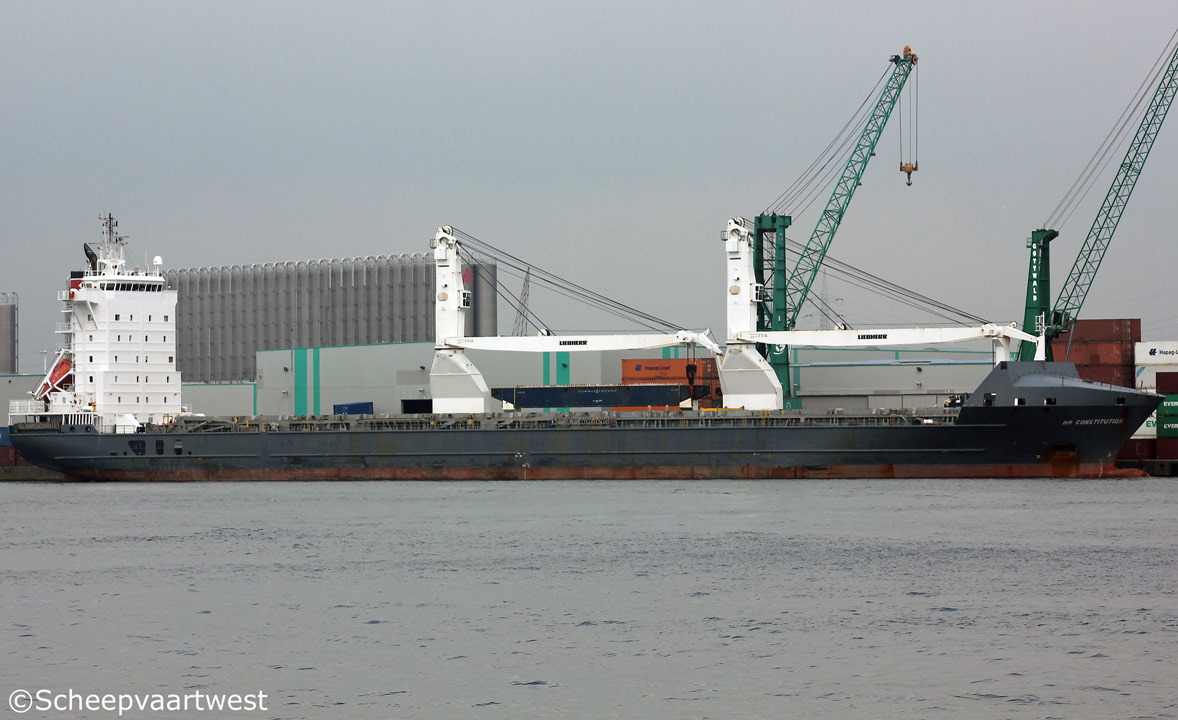

| Westerschelde 25 September 2012 |
 |

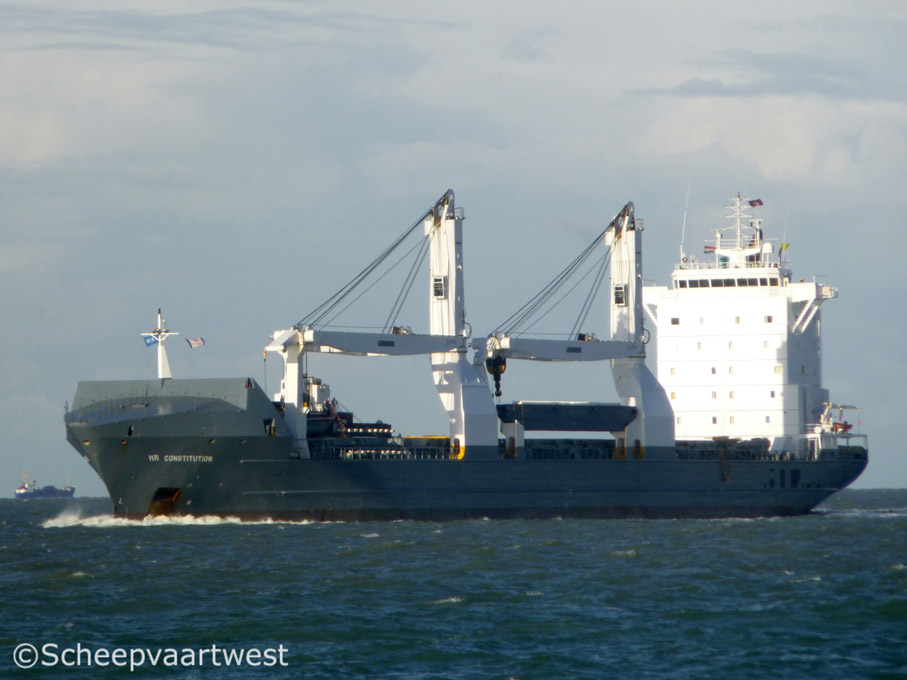

| Westerschelde 06/11/14 |
|
Name |
HR CONSTITUTION |
|
Previous names |
2006 - 2006 Beluga Constellation 2006 - 2011 Beluga Constitution |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo - Heavy load carrier |
|
IMO-number |
9273791 |
|
Call sign |
D5DR2 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flag |
Antigua & Barbuda, St. John's - Call sign: V2CI9 |
|
GT |
10.899 t |
|
DWT |
12.767,07 t |
|
NT |
5.766 t |
|
Number of 20ft containers |
On deck: 339 In hold: 336 Total: 675 |
|
Container capacity 14t |
578 |
|
Reefer capacity |
323 |
|
Length |
156,76 m overall 147,05 m between perpendiculars |
|
Breadth |
21,82 m extreme 21,50 m moulded |
|
Draught |
7,80 m |
|
Keel to mast end |
40,80 m |
|
Forecastle |
120,79 m |
|
Poop |
9,60 m |
|
Depth |
9,30 m |
|
Speed |
15,5 knots |
|
Built |
2006 |
|
Keel laid |
17/12/2004 |
|
Launch date |
26/05/2006 |
|
Date of completion |
04/10/2006 |
|
Builder casco |
OAO Damen Shipyards Okean Nikolayev Ukraine Yard No. 9121 |
|
Builder completion |
Volharding Shipyards B.V. Foxhol The Netherlands Yard number: 556 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M43 - 4 stroke single acting 8 cylinder 430 x 610 mm combustion engine 7.200 kW / 9.789 hp at 500 rpm Year of manufacture: 2005 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 140 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 83,0 m² 1x Thermal oil heater, oil fired - 13,0 bar Heating surface: 22,0 m² Year of manufacture: 2004 Manufacturer: Alfa Laval Aalborg A/S Gasvaerksvej 24 9100 Aalborg Kingdom of Denmark |
|
Electric installation |
3x Plants each 450 V - 438 kVA 1x Plant 450 V - 1.063 kVA 1x Plant 24 V - 140 Ah 1x Plant 24 V - 180 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah |
|
Shaft generator |
1x 1.063 kVA |
|
Generators |
2x Scania DI 1644 M - 4 stroke 6 cylinder 127 x 154 mm diesel engine Mcr 469 kW connected with generators each 350 kW |
|
Emergency generator |
1x Scania DI 1644 M diesel generatorset 438 kVA |
|
Batteries |
2x Batteries for start auxiliary engine each 200 Ah 2x Batteries for start emergency engine each 200 Ah 1x Battery for UPS navigation 180 Ah 1x Battery for UPS radio 140 Ah |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster - 650 kW, forward |
|
Number of holds |
2 |
|
Number of hatches |
2 |
|
Tank capacities |
Ballast: 4.034,9 m³ |
|
Anchor equipment |
3x Anchors weight each 5.610 kg Chain length: 577,50 m Diameter: 50 mm |
|
Cargo gear |
2x Liebherr cranes - SWL 240 t each |
|
Crew size |
24 |
|
Manager |
Hammonia Reederei GmbH & Co. KG 22609 Hamburg Federal Republic of Germany |
|
Registered owner |
MS "HAMMONIA CONSTITUTION" Schifffahrts GmbH & Co. KG |
|
Renamed |
2017 Donald Liberia, Monrovia - Call sign: D5DR2 2018 Zea Bremen Liberia, Monrovia - Call sign: D5DR2 |
|
Latest data adjustment |
01 December 2022 |
