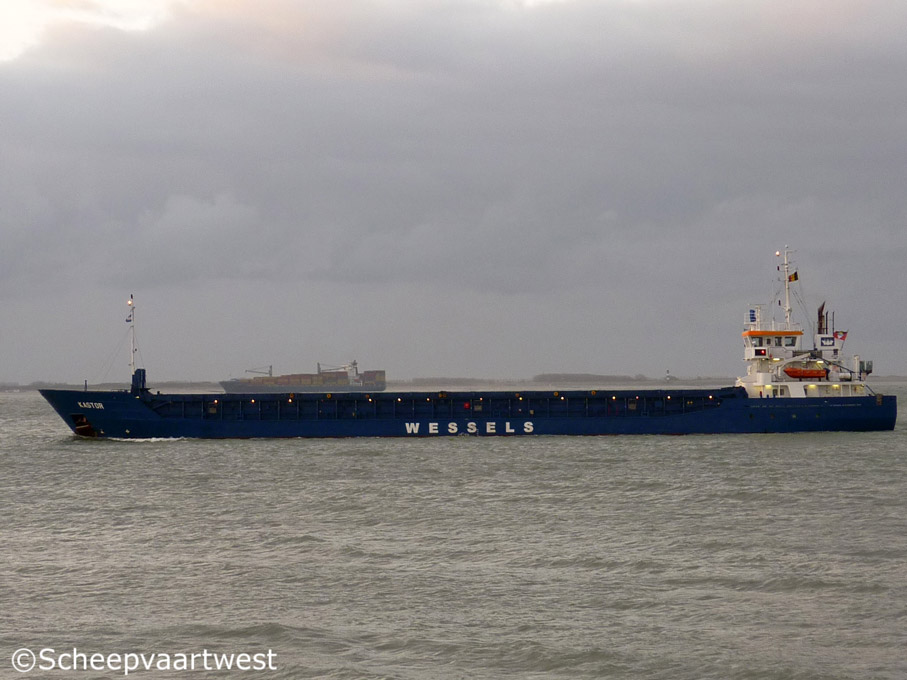

| Vlissingen, The Netherlands 08 January 2012 |
 |

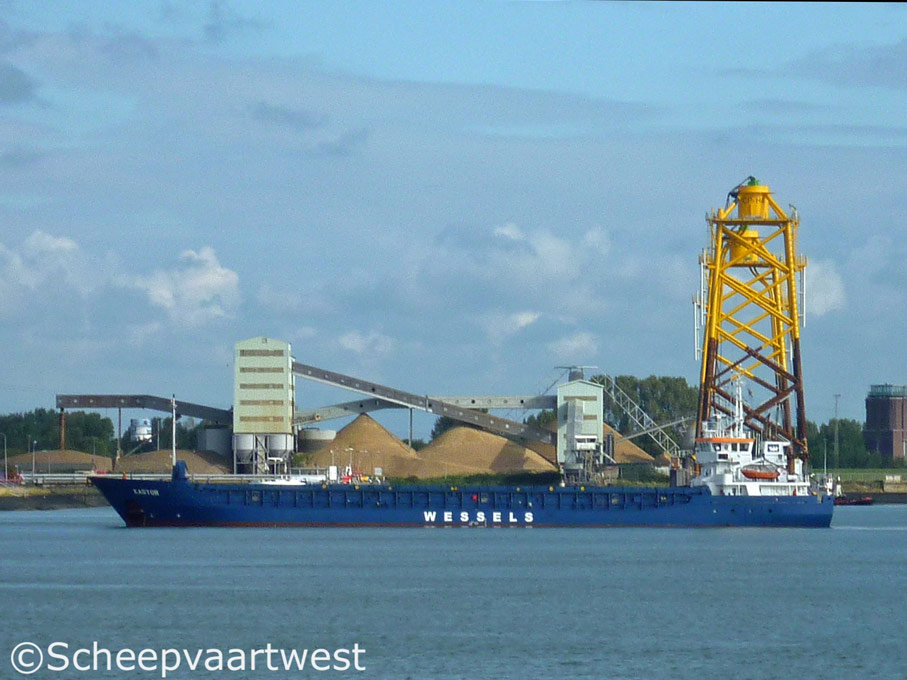

| Vlissigen 19/09/11 |
|
Name |
KASTOR |
|
Type |
Boxshapped seagoing multi-purpose dry cargo ship |
|
IMO-number |
9390094 |
|
Call sign |
A8NX3 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
2.452 t |
|
DWT |
3.671 t |
|
NT |
1.369 t |
|
Length |
87,90 m overall 81,32 m between perpendiculars 82,10 m registered |
|
Breadth |
12,80 m registered |
|
Draught |
5,498 m |
|
Forecastle |
5,85 m |
|
Freeboard |
1.615 mm |
|
Depth |
7,10 m moulded to main deck 8,00 m moulded to poop deck |
|
Speed |
11,7 knots |
|
Built |
2007 |
|
Keel laid |
18.06.1998 |
|
Launch date |
26.09.2007 |
|
Date of completion |
12.12.2007 |
|
Builder |
Slovenske Lodenice Komarno A.S. |
|
Yard number |
2972 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8 M20C - 4 stroke 8 cylinder 200 x 300 mm diesel engine - 1.520 kW at 1.000 rpm Year of manufacture: 2007 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propeller |
1x Controllable pitch propeller - aft at 259 rpm |
|
Boilers |
1x Water heater, oil fired Year of manufacture: 2007 Manufacturer: A.C.V. Nederland B.V. |
|
Electric installations |
1x Plant 400 V - 230 kVA 1x Plant 400 V - 230 kVA 1x Plant 400 V - 300 kVA 1x Plant 400 V - 50 kVA 1x Plant 24 V - 140 Ah 1x Plant 24 V - 165 Ah 1x Plant 24 V - 165 Ah 1x Plant 24 V - 170 Ah 1x Plant 24 V - 170 Ah |
|
Shaft generator |
1x 300 kVA |
|
Generators |
2x Main diesel generatorsets each 230 kVA |
|
Emergency + Harbour gen. |
1x Diesel generatorset 50 kVA |
|
Batteries |
1x Battery for automation 170 Ah 1x Battery for UPS navigation 170 Ah 1x Battery for diesel start 165 Ah 1x Battery for start emergency engine 165 Ah 1x Battery for UPS radio 140 Ah |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster - 185 kW, forward |
|
Number of holds |
1 |
|
Hold capacity |
Grain / bales: 4.590m³ / 162.000 ft³ |
|
Number of hatches |
1 56,55 x 10,20 m |
|
Deck Strength |
15,0 t/m² |
|
Tank capacities |
Fuel oil: 191,5 t Diesel oil: 30,0 m³ Ballast water: 1.750 t |
|
Hold ventilation |
6 times |
|
Anchor equipment |
3x Anchors weight each 1.740 kg Chain length: 440,00 m |
|
Crew size |
9 |
|
Manager |
Wessels Reederei GmbH & Co. KG |
|
Operator |
Wessels |
|
Owner |
MS "GRANIT" Schiffahrts gmbH & Co. KG |
