| Antwerpen 28 December 2012 |
|
Name |

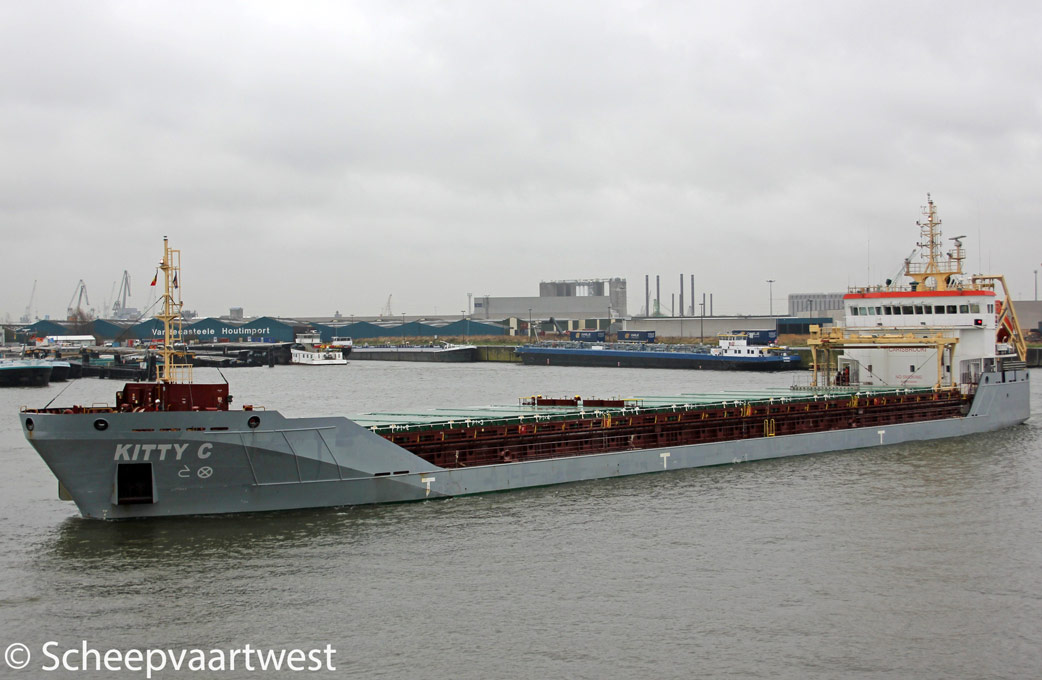

KITTY C |
|
Type |
General cargo ship - Heavy cargo - Equipped for carriage of containers |
|
IMO-number |
9558048 |
|
Call sign |
2EIQ6 |
|
Flag |
United Kingdom |
|
Port of registry |
Cowes |
|
GT |
4.151 t |
|
DWT |
6.878 t |
|
NT |
2.323 t |
|
Length |
106,70 m overall |
|
Breadth |
15,50 m |
|
Draught |
6,65 m |
|
Air draft |
24,00 m ballast |
|
Freeboard |
1.522 mm |
|
Depth |
8,14 m |
|
Speed |
10,3 knots |
|
Built |
2001 |
|
Date of completion |
01.08.2011 |
|
Builder |
Jiangsu Yangzijiang Shipbuilding Co.,Ltd. Jiansu Province |
|
Yard number |
YZJ2008-900 |
|
Hull material |
Steel |
|
Watertight compartments |
3 |
|
Movable bulkhead |
1x Vertical moveable bulkhead in each hold enabling 4 compartments |
|
Main engine |
1x Mak - 4 stroke 6 cylinder 255 x 400 mm diesel engine - 1.980 kW / 2.690 hp at 750 rpm Built: 05.2011 Builder: Caterpillar Motoren GmbH & Co., Ltd., Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch at 170 rpm |
|
Boilers |
1x CHO 0501LEI10 6,90 m² - 4,0 bar |
|
Shaft generator |
1x 488 kVA - 390 kW |
|
Generators |
3x Main diesel generatorsets each 200 kVA - 160 kW - 247 hp |
|
Number of holds |
2 Hold 1: 34,50 x 11,70 x 9,30 m (narrows aft part 6,50 m to 6,00 m) |
|
Total capacity of holds |
Grain: 8.312,43 m³ / 293.000 ft³ |
|
Number of hatches |
2 Hatch 1: 34,50 x 11,70 m |
|
Pontoon type |
Pontoon Stackable hatchcovers |
|
Strength |
Tanktop: 15 t/m² |
|
Fuel capacity |
324,57 m³ |
|
Manager |
Carisbrooke Shipping |
|
Owner |
Carisbrooke Shipping |
|
Registered owner |
Carisbrooke Shipping 6250 BV |
|
Last update |
04.02.2013 |
